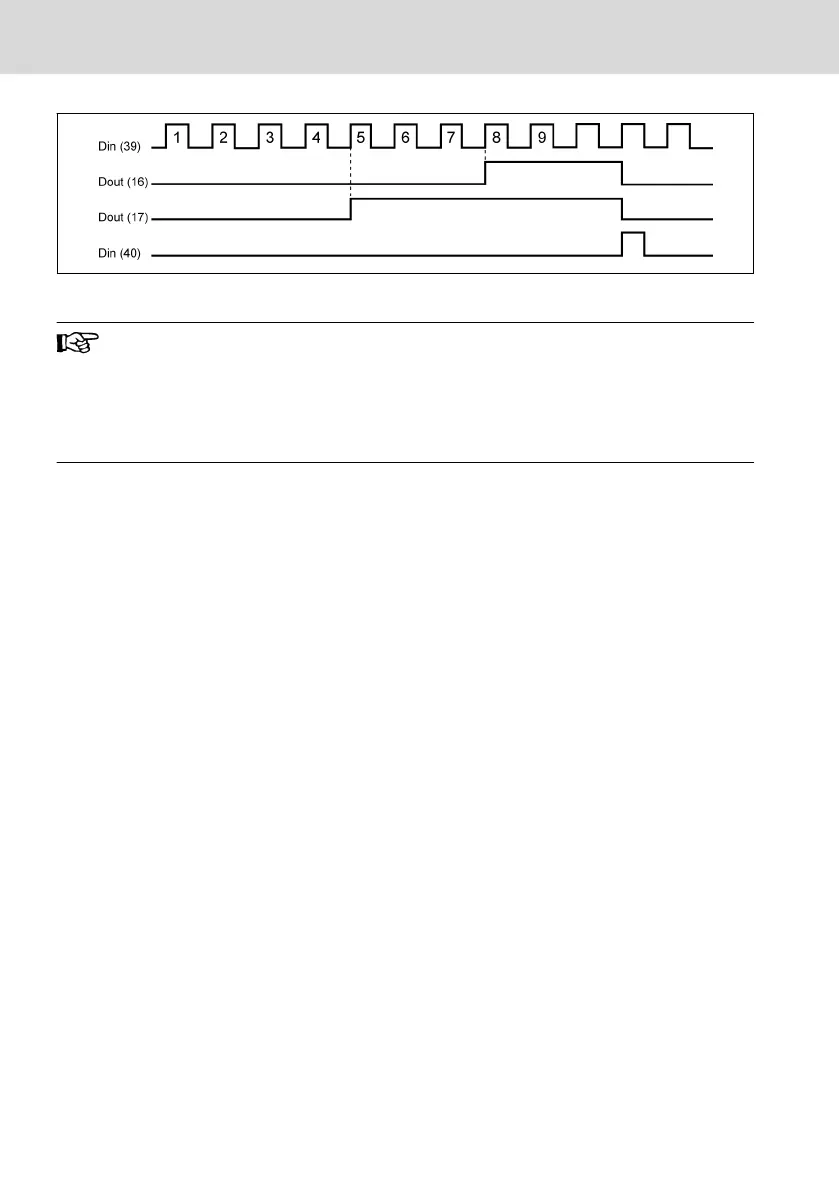

Fig. 12-39: Output behavior
● If the setting of any parameter E2.80, E2.81 and / or the status of
the defined digital inputs is changed, the counter value will be re-
set and the digital outputs will be inactive immediately.
● The allowed maximum digital input frequency is 50 Hz and the al-
lowed minimum pulse width (both active and inactive) is higher
than 8 ms.
Bosch Rexroth AG
Functions and Parameters
EFC x610 Series
174/389
DOK-RCON03-EFC-X610***-IT05-EN-P
