Page #261 background image
[C3.41] = '0: AI1 analog input', [C3.42] = 0.0 %, [C3.43] = 150.0 %
T
OUT
Output torque
T
rated
Rated torque
t Time
FWD Forward
REV Reverse
X1 X1 input
X2 X2 input

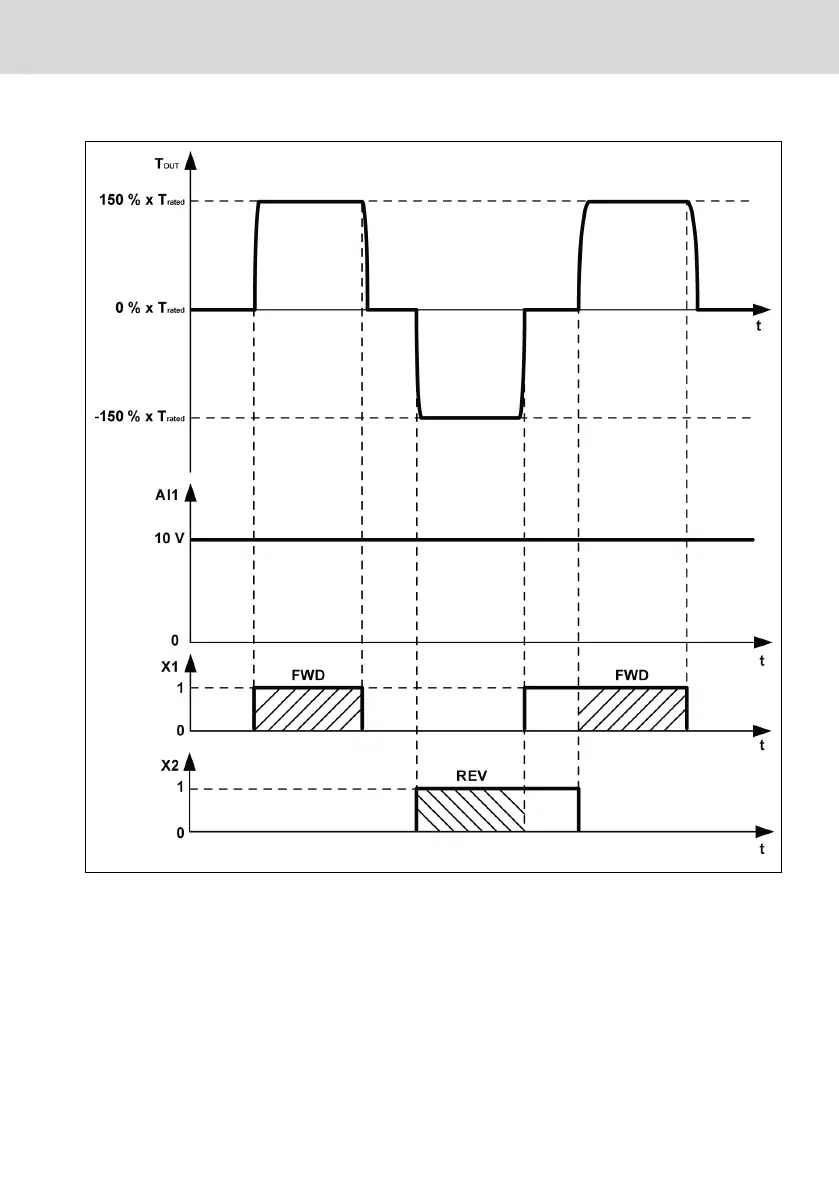

Fig. 12-70: Set the direction of torque reference by digital input
For run command setting source information, see chapter 12.5 "Run- / Stop- /
Direction Command Source" on page 149.
