Ricoh M0A0 - Page 55

2.Installation
43

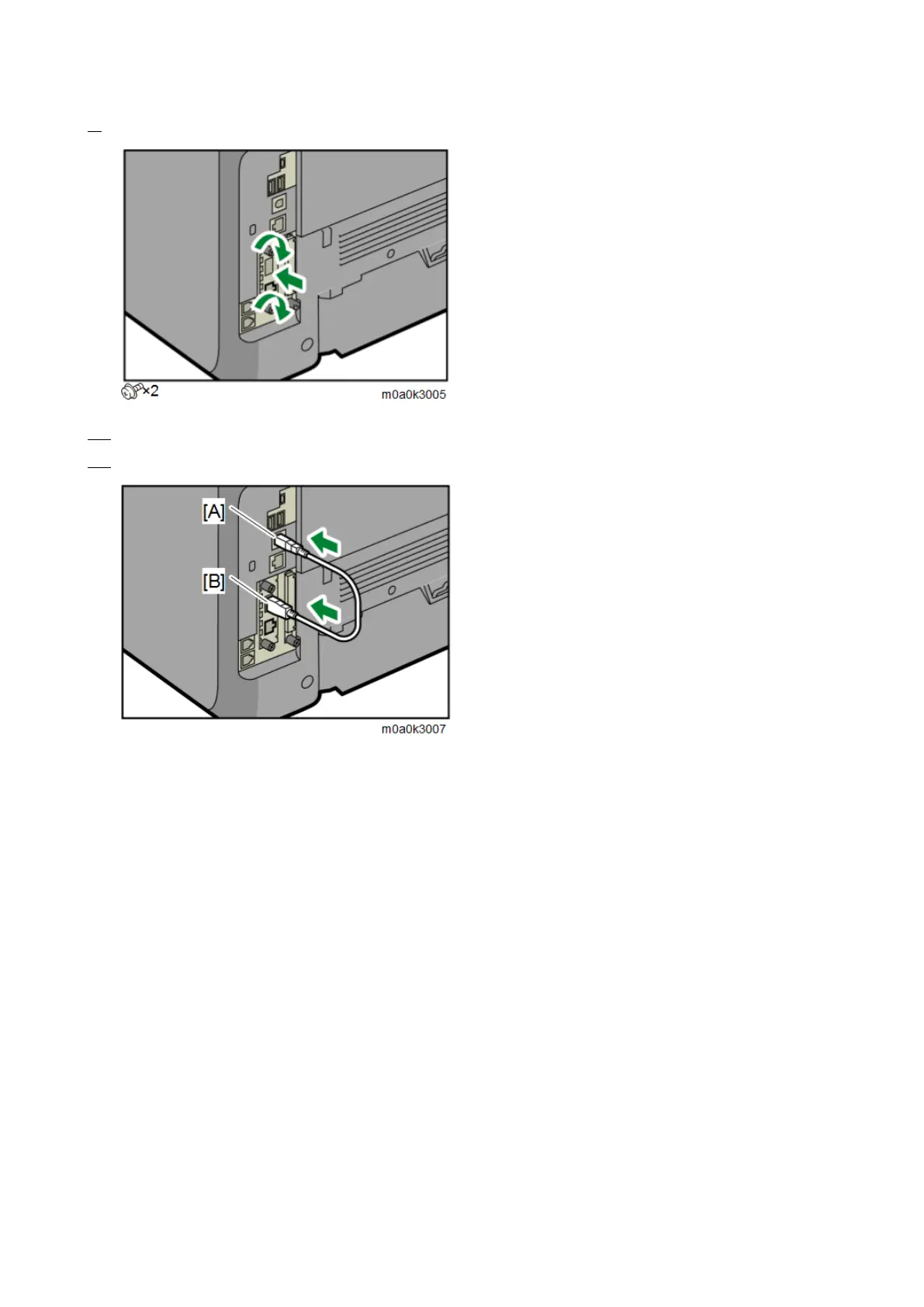

9. Insert the USB Device Server Option board [A] into the I/F slot.
10. Insert the USB cable [A] into the USB port (Type A) on the machine I/F.
11. Insert the other end of the USB cable [B] into the USB port (Type B) on the USB Device Server Option board.
