Operation
R-Concept

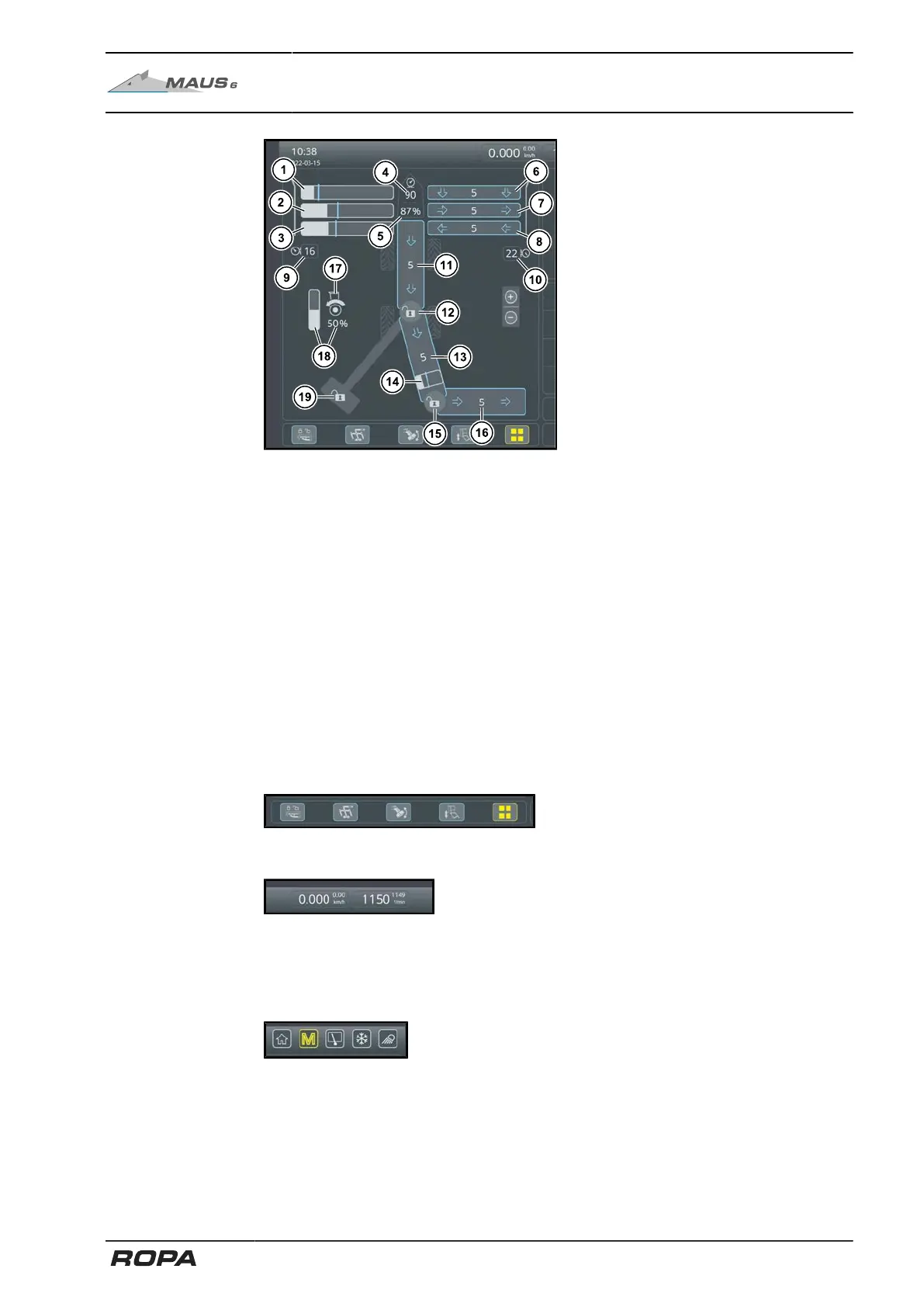

[B] Display area beet path
(1) Load and warning threshold for
pickup roller drive
(2) Load and warning threshold for
conveyor roller drive
(3) Load and warning threshold for
drive of 4-part pinch rollers
(4) Relief pressure pickup in the cen-
tre
(5) Pickup height
(6) Set speed and status of drive for
pickup rollers
(7) Set speed and status of drive for
conveyor rollers
(8) Set speed and status of drive for
4 pinch rollers
(9) Relief pressure left pickup side
part
(10) Relief pressure right pickup side
part
(11) Set infeed conveyor speed
(12) Condition of swivel arm lock
(13) Set recleaning speed
(14) Load and warning threshold for
recleaning drive
(15) Condition of truck conveyor lock
(16) Set truck conveyor speed
(17) Status of traction drive (only dur-
ing loading)
(18) Set speed/rotational speed on the
rotary wheel of the right joystick
(19) Counterweight arm lock status
[C] Quick access toolbar for R-Select (See Page 85)
[D] Display field driving and rotational speed diesel engine
(See Page 168)
(See Page 193)
[E] Display and operating panel for R-Direct functional area (See Page 115)
