Operation
Water spray system (option)
6.15.3.2 Duo water spray system (option)
With the optional Duo water spray system one additional water valve is installed in
each side pickup section and in the recleaner. This water valve switches additional

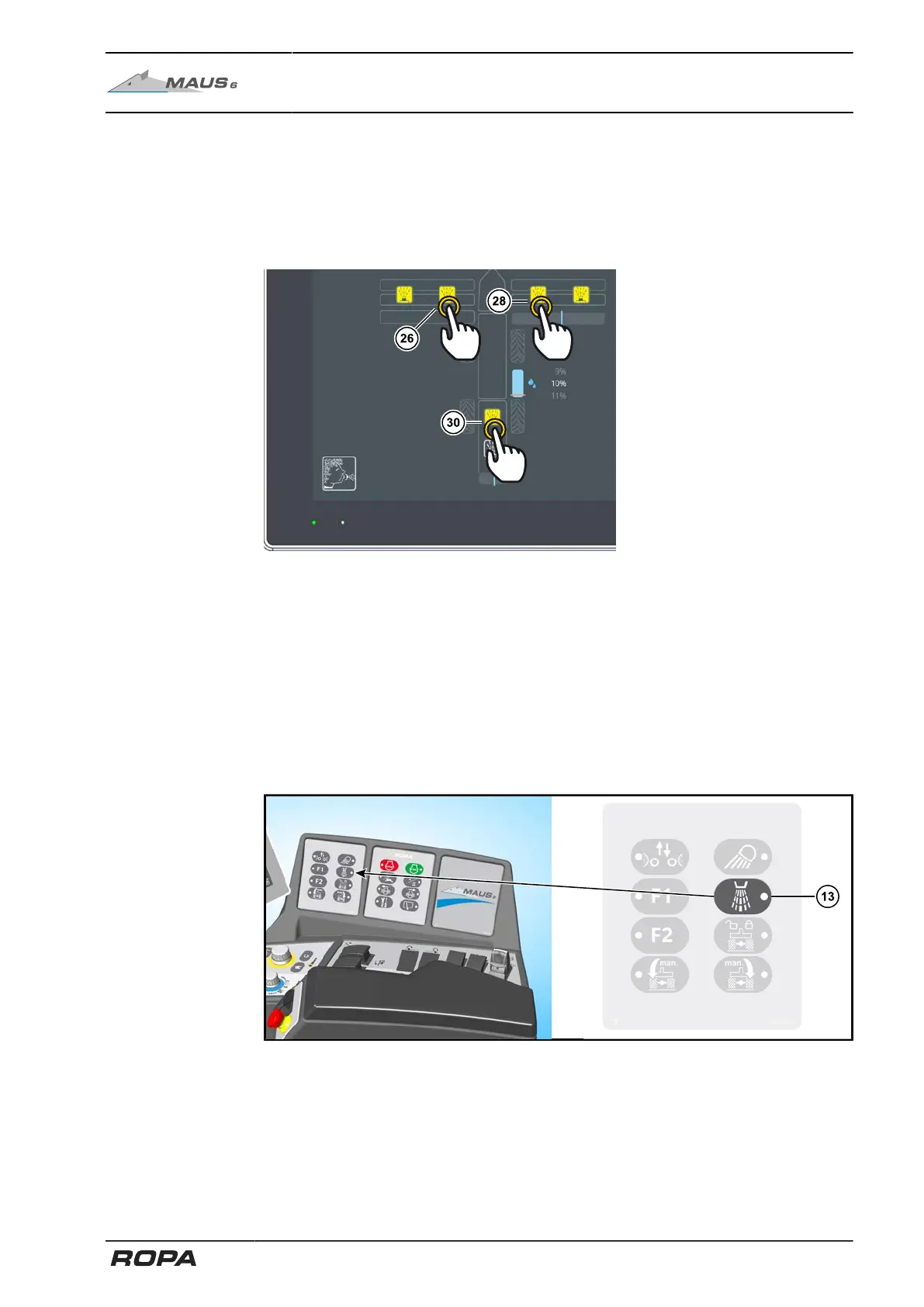

spray nozzles. These water valves are switched on and off individually via the switch
panels (26), (28) and (30). The timer control and pressure control also actuate the
additional water valves.
(26) Spray nozzles on pickup left (optional Duo water spray system)
(28) Spray nozzles on pickup right (optional Duo water spray system)
(30) Spray nozzles on recleaner (optional Duo water spray system)
6.15.3.3 Operation of the water spray system
Set the four ball valves to the required operating mode.
The water spray system of the machine is controlled from the R-Touch. The Water
spray system menu appears when the key (13) on keypad I is pressed and held down
for three seconds. Briefly pressing the key switches the water spray system with the
last selected setting on or off.
291 / 546
