Malfunction and Remedies
Fuses
8.2.6 Fuses on PCBs in the central electrics

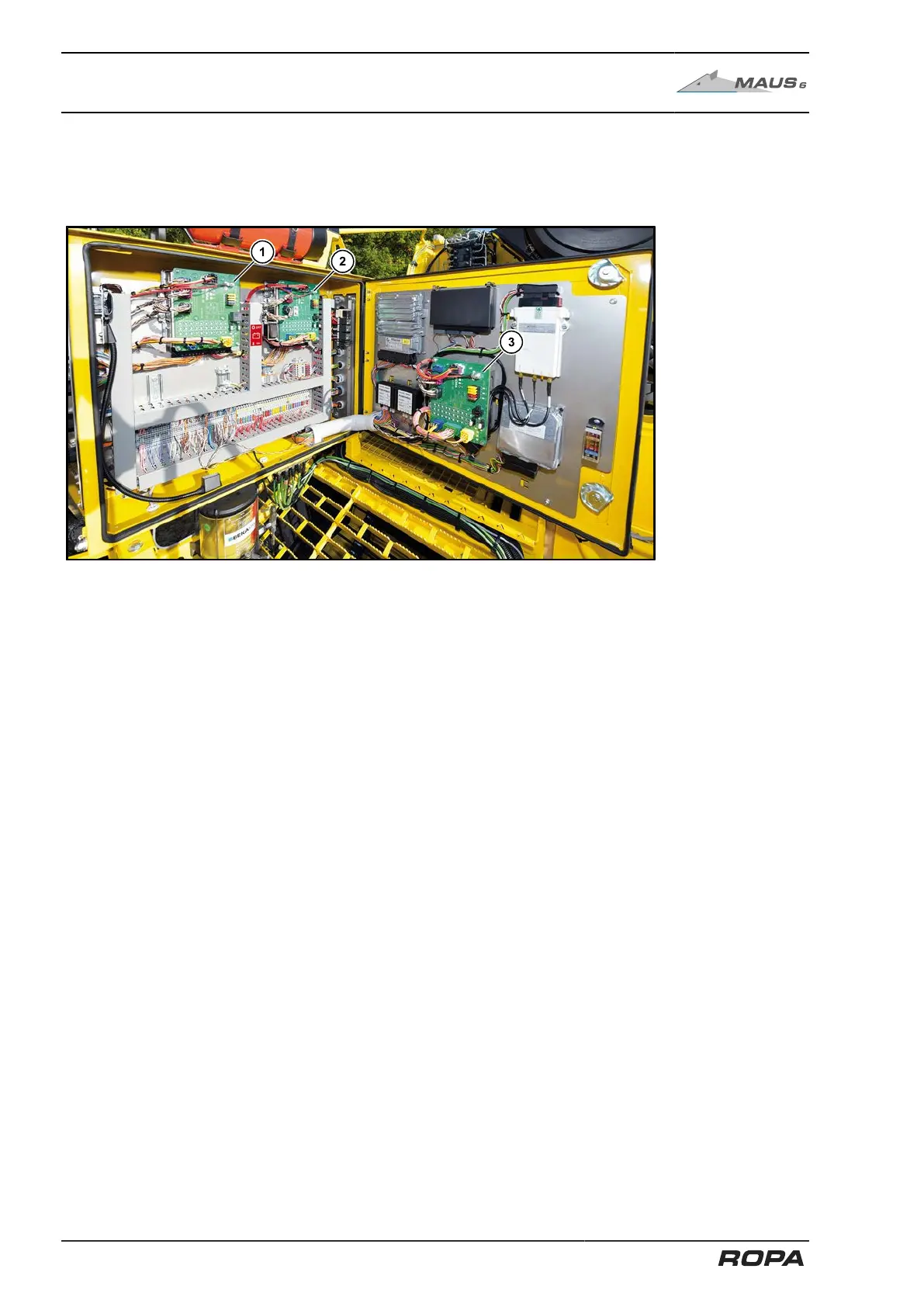

Three identical PCBs are installed in the central electrics. They can be distinguished by their designation A,
B and C.
(1) PCB A
(2) PCB B
(3) PCB C
These PCBs are energised by the main fuses in the battery case. Each PCB secures one of three main
machine computers.
Fuses F006, F007, F008 and F010 supply power to the respective computer. The LEDs next to the men-
tioned fuses must not glow. Glowing LED indicates a fault in the corresponding flat plug fuse.
