Maintenance and Service
Mechanical drive for steering axles
7.4.1 Cardan shafts from gearbox to the steering axles
All drive shafts on the machine must be lubricated after every 200 operating hours.
DANGER
Hazard to life due to rotating machine parts!
When the engine is running, body parts or pieces of clothing may be caught by rotat-
ing drive shafts and pulled into the machine.
– Stop the machine and shut down diesel engine.
– Secure the diesel engine against accidental start-up, keep the ignition key out of
reach of any third party!

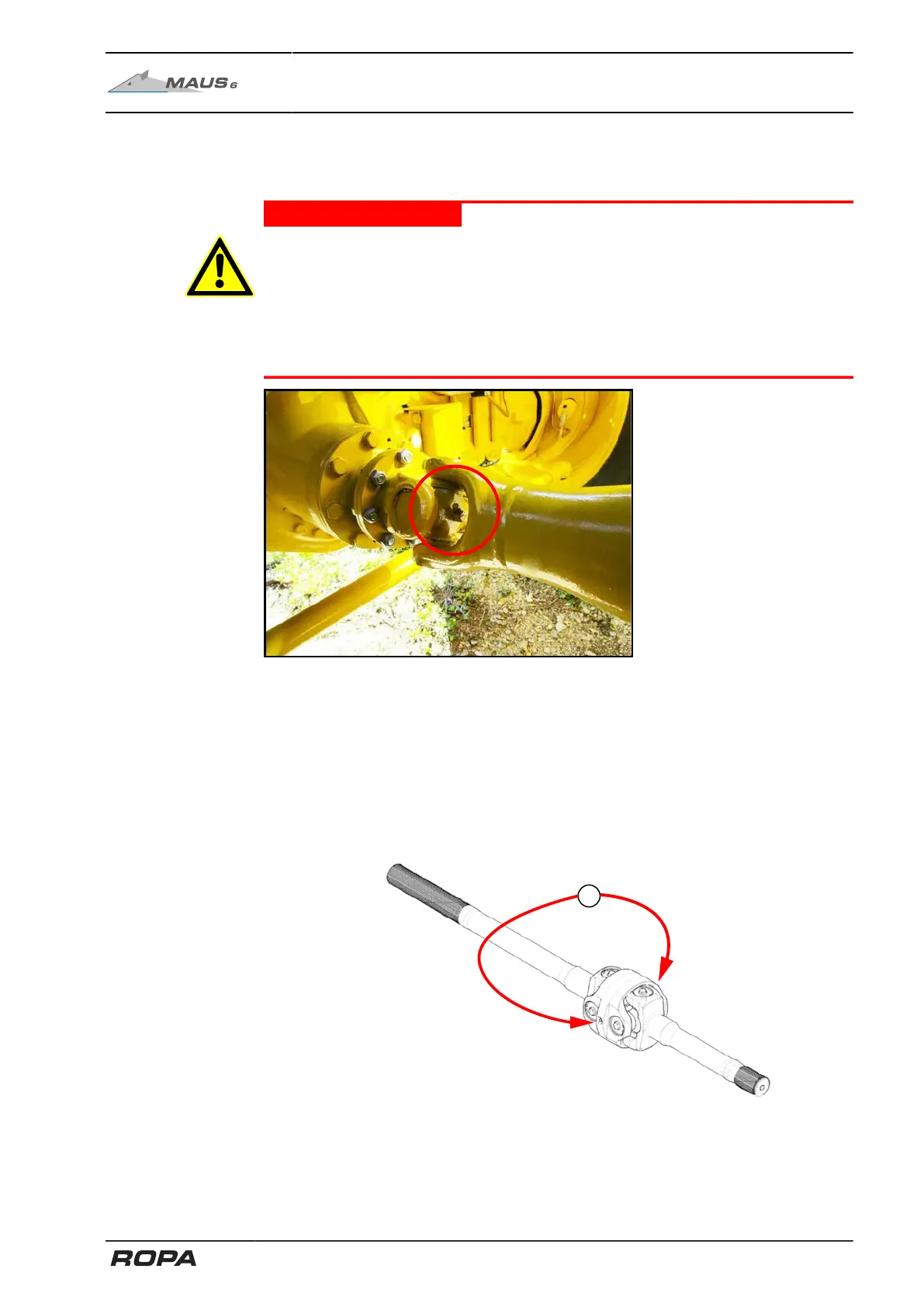

Illustration shows a grease nipple
7.4.2 Maintenance knuckle joints of the axles
The knuckle joints of the double joint shafts in the stub axles of the two steering axles
must be lubricated every 200 operating hours. Each knuckle joint contains two lubri-
cating nipples. Both lubricating nipples (2) must be lubricated.
