Operation
Scales (option)

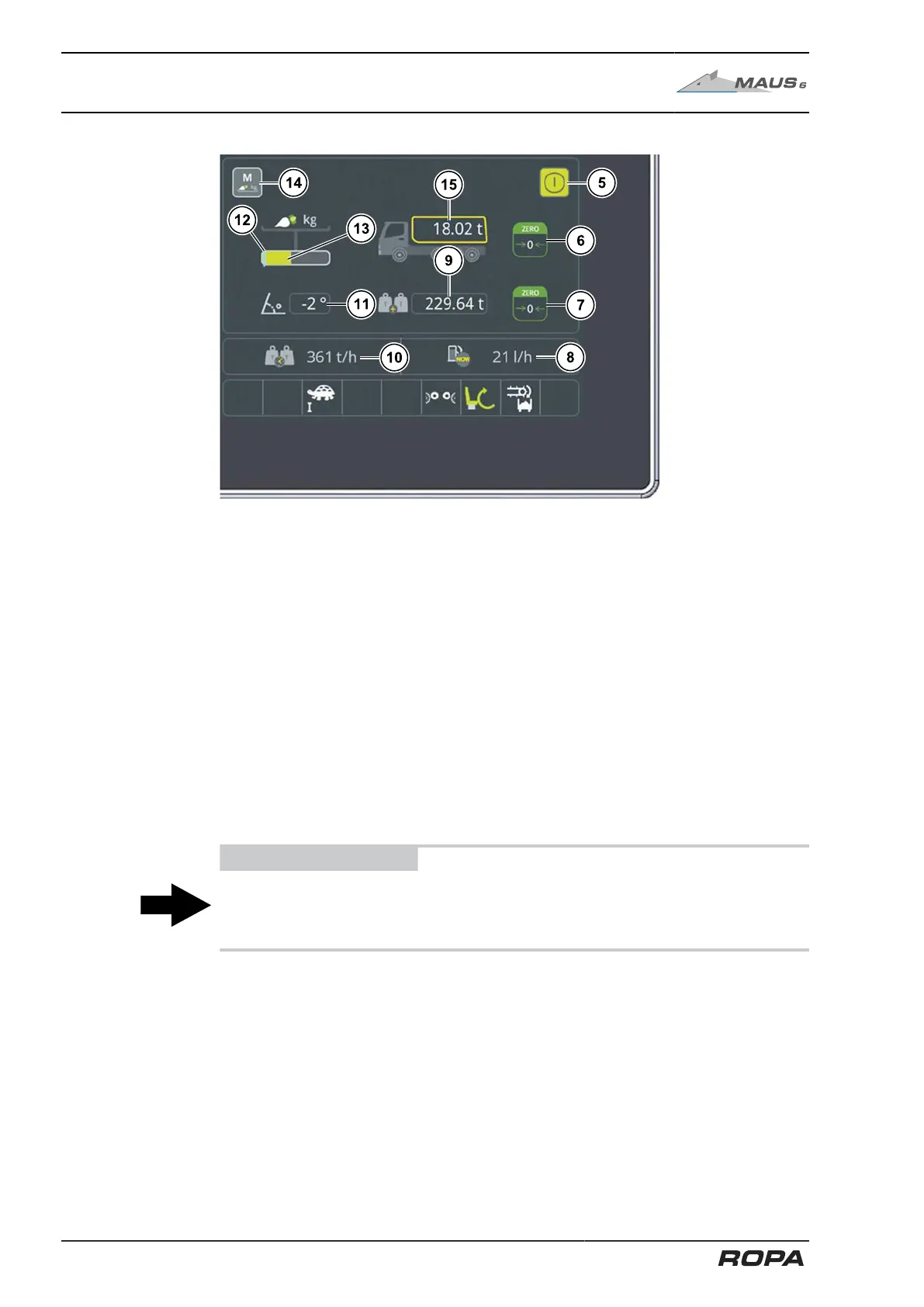

Display field Scales
(5) Start/end weighing
(6) Reset the currently loaded weight
(7) Reset the weight of the day counter
(8) Current fuel consumption
(9) Weight of the day counter
(10) Current capacity
(11) Display of loading angle (inclination of truck conveyor articulation)
(12) Display of set summation limit
(13) Status indicator bar showing load on weighing cells
(14) Shortcut to Scale Menu
(15) Currently loaded weight
6.16.2.2 Commissioning after delivery of machine
The scales must always be calibrated before using for the first time. The calibration is
performed in two stages, which must be performed in the sequence described every
time. (See Page 307)
ADVICE
If a component of the scales (except for the speed sensor, in some cases also the
inclination sensor) is replaced, it must be recommissioned. Only authorised service
personnel may carry out this procedure, as it is not explained in this manual.
300 / 546
