Malfunction and Remedies
Fuses

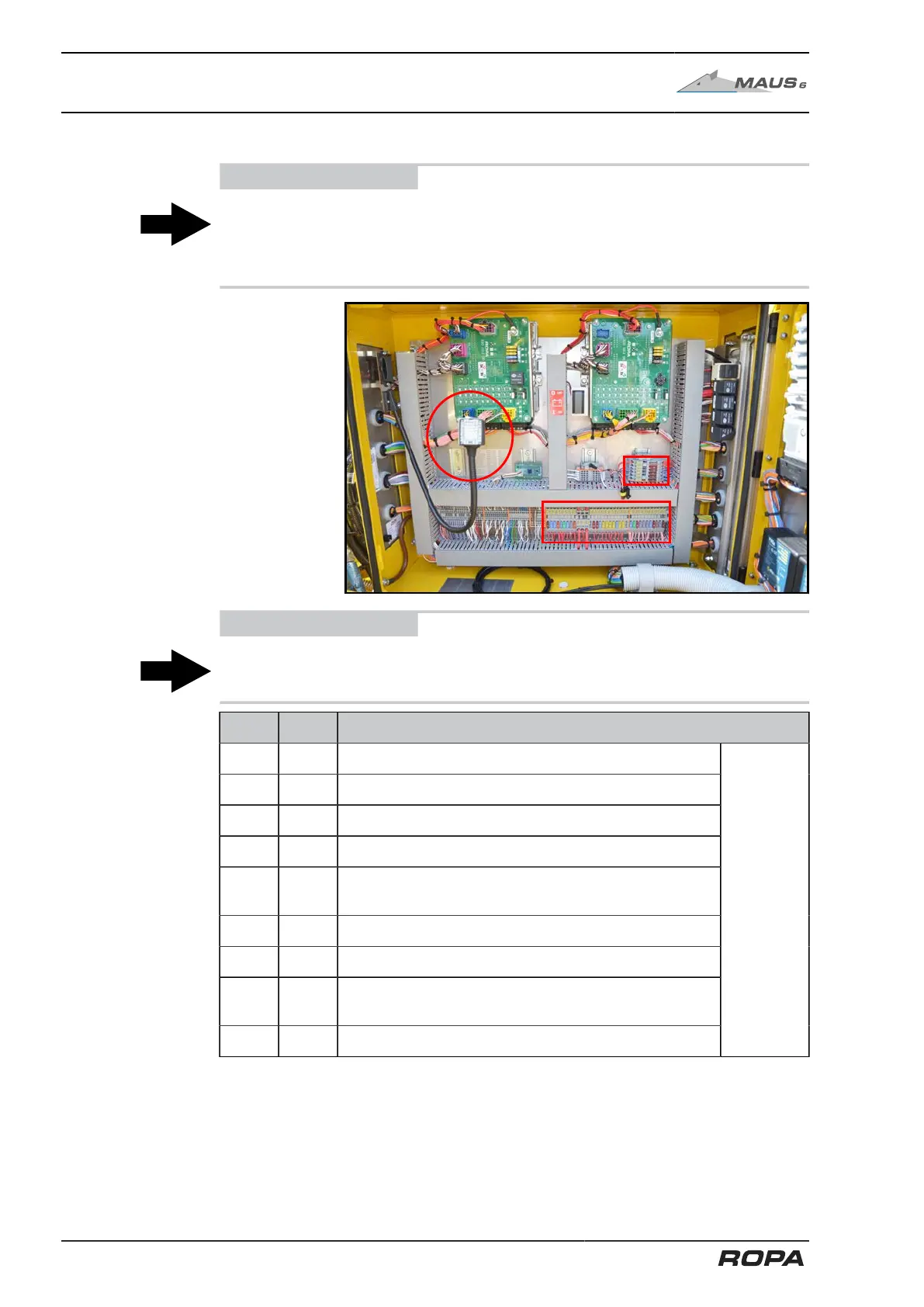

8.2.3 Fuses in the central electrics
ADVICE
The machines with chassis numbers 8J1506, 8L1597, 8L1598 and 8L1599 were
manufactured before the start of series production. There are minor differences in the
electrical system of these machines. In the mentioned above machines the circuit dia-
grams may differ slightly from those of the series machines.
ADVICE
The inside light in the central electrics functions even with the ignition switched off. Do
not forget to switch it off before closing the cover of the central electrics.
No. Ampere Occupation
F019 7.5 Pin 30 outlet seat console 24 V
F020 15 Supply line pin 30 console
F021 15 A403 CPC4 Mercedes/OBD-outlet
F022 40 A435 MCM Mercedes
F023 15
Reading light/inner light central electrics/engine compart-
ment outlet 24 V/outlet on fuel tank 24 V
F024 30 Heater fan for park heating operation
F025 15 Park heating
F026 3
Air conditioning control unit for park heating operation/W-
bus converter
F027 40 A095 ACM Mercedes
Pin 30
from X1
