Operation
Water spray system (option)
6.15.2 Filling water tank
CAUTION
Risk of injury due to dirt particles and spraying water.
– Before starting to fill the water tank, open slowly and carefully the ball valve at the
filler neck (19) to release any pressure accumulated in the water tank.
– Do not bend over the filler opening until the pressure has been released.
– Close the ball valve (1) (OFF position) before filling.
– Before starting to fill the water tank, slowly open the ball valve at the filler neck (19)
to release any pressure.
– Use only clean water without impurities for filling the tank.
– The transparent hose (22) shows the water level in the tank during filling.
– Close the ball valve at the filler neck (19) once the tank is full.

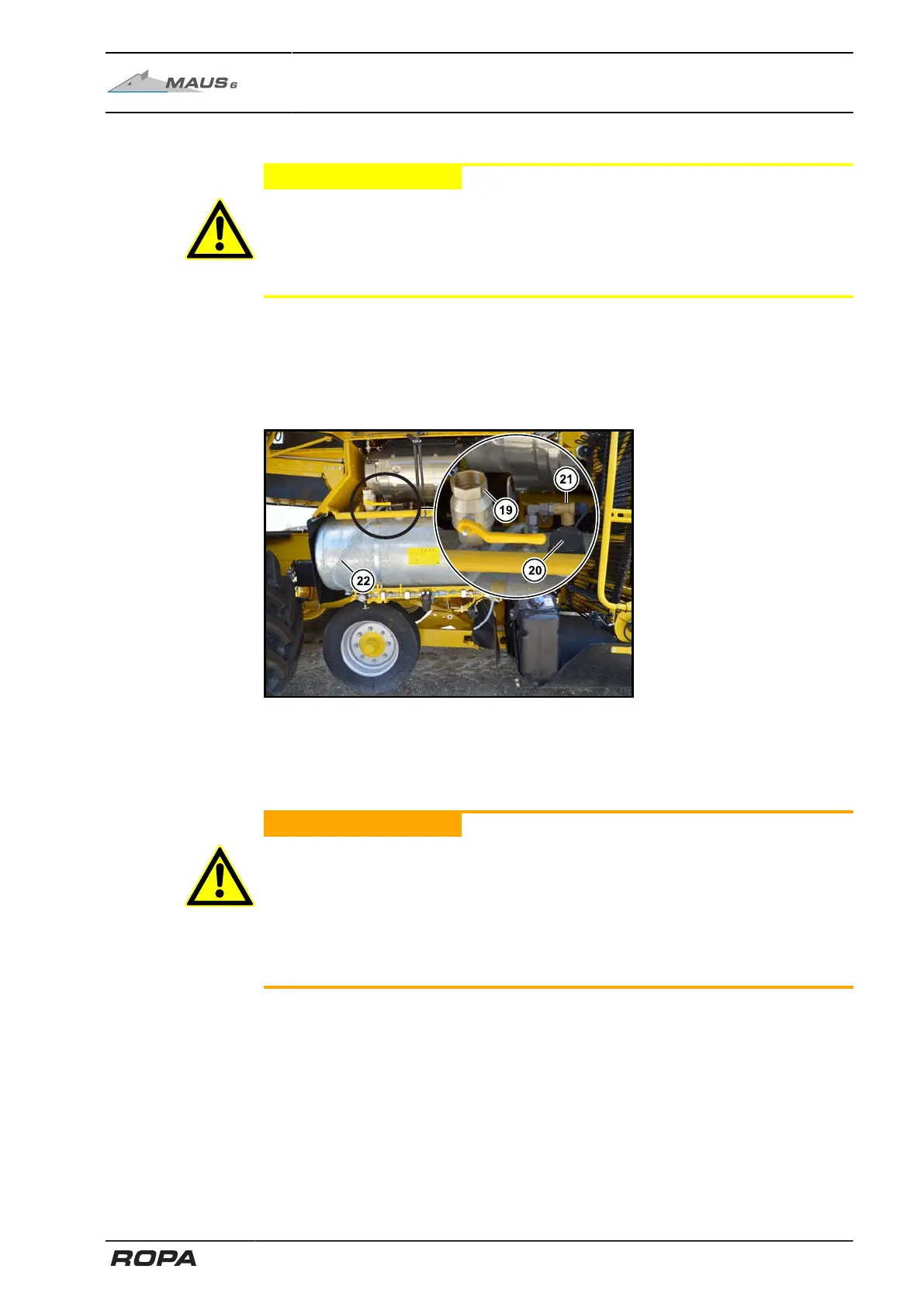

(19) Filler neck with ball valve
(20) Fill level indicator sensor
(21) Safety pressure valve
(22) Transparent hose for level indicator
WARNING
Hazard of severe injuries.
The response pressure of the safety pressure valve (21) is factory-set to 6 bar.
– The setting of this safety component must not be changed under any circum-
stances, because any changes may result in serious injury or major property dam-
age.
– In case of replacement, install only an original ROPA spare part.
