Maintenance and Service
Air conditioning and ventilation system

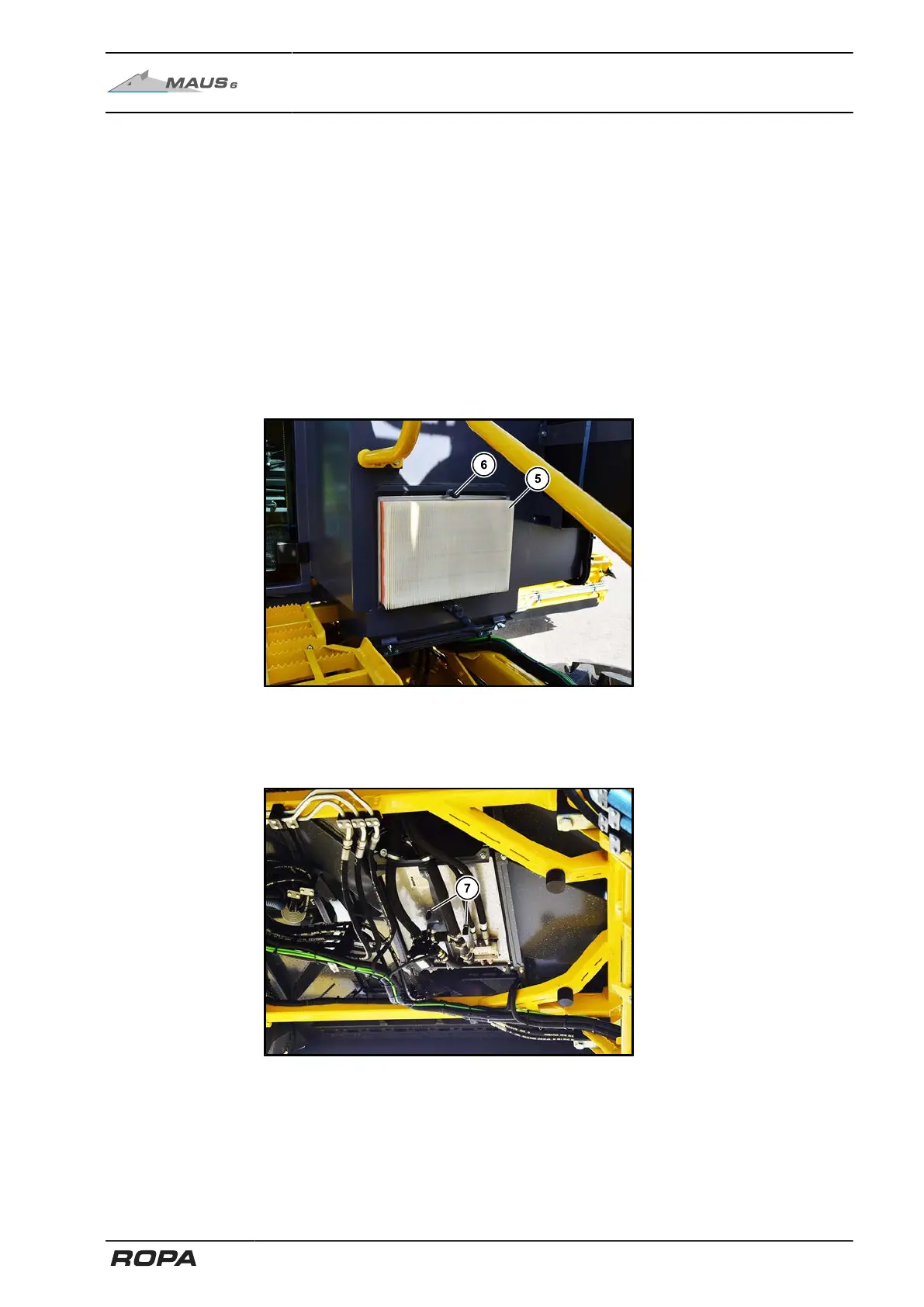

7.15.3 Fresh air intake filter in driver's cabin
The fresh air intake filter (5) for the driver's cabin is located right, outside on the rear
cabin wall.
This filter must be cleaned in case of need. For this purpose:
– Open the rubber fastener of the cover hood and remove the cover hood.
– Screw out the knurled-head screw (6) and remove the filter from the holding frame.
– Clean filter element using compressed air.
– Reinsert the cleaned filter element in the holding frame and fasten it using the
knurled-head screw.
– Install the cover hood.
This filter element (ROPA item no. 352033200) should be renewed once a year in any
case.
With removed cover hood
7.15.4 Condensate drain in the air conditioner
(7) Condensate drain
Check the condensate drain on the air conditioner on the bottom of the cabin regu-
larly. If there isn’t any water coming out here, the condensate drain should be cleaned.
429 / 546
