Maintenance and Service
Pickup
7.8 Pickup

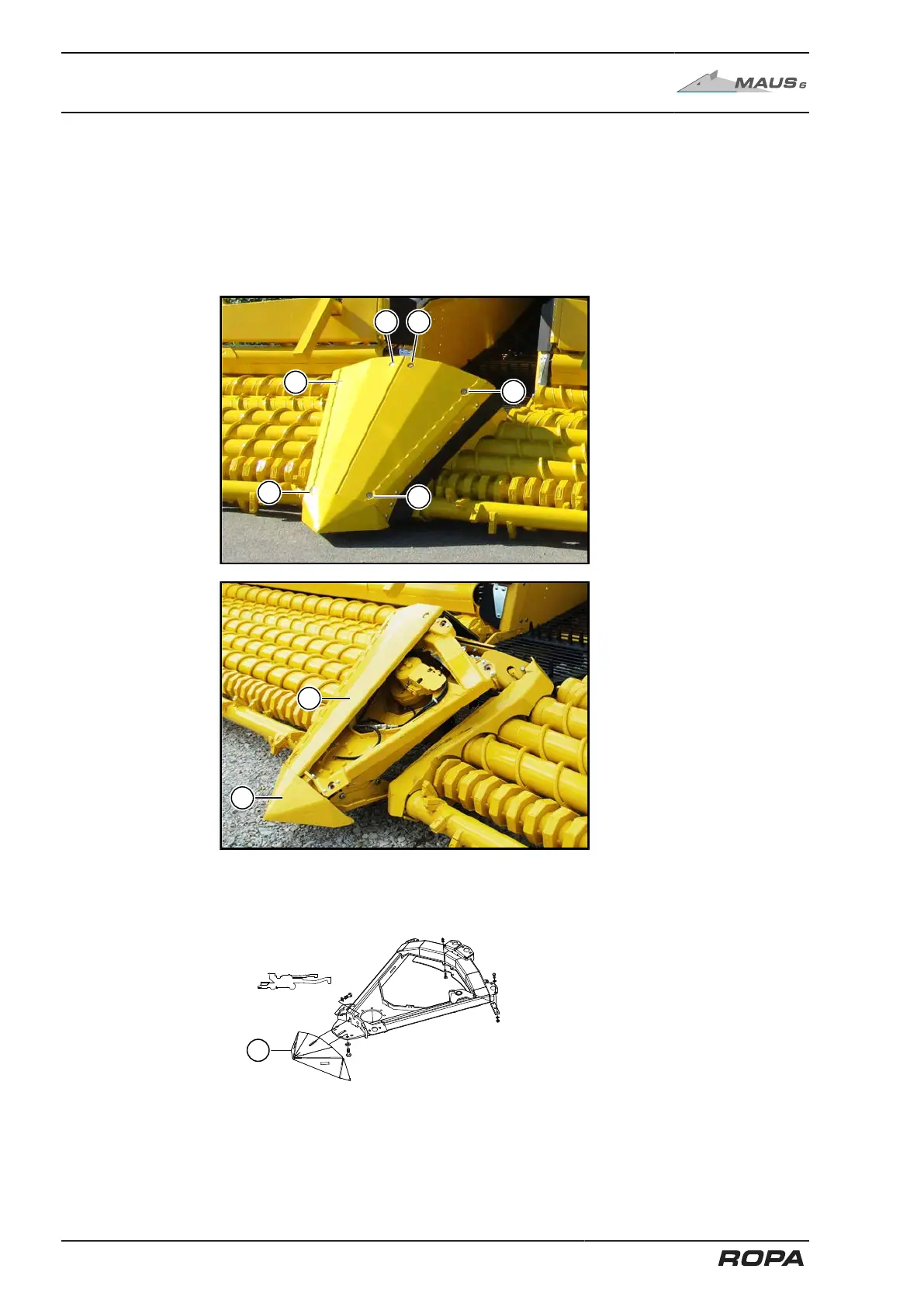

7.8.1 Central mark
Check the bottom of the central mark for dirt every day when the side pickup sections
are folded in (visual inspection). Heavy dirt should be removed immediately.
The central mark cover (2) can be partially removed after unscrewing three screws (1).
The mark (3), i.e. the front part of the central mark, is a wear part. It should be pre-
pared or replaced before the material is completely worn away. We recommend to
have this wear part in stock for machines that are subject to high workloads.
