Maintenance and Service
Hydraulic system
WARNING
Burning hazard!
All coolers heat up during operation. Hazard of severe burnings!
Wear protective gloves!
Let the machine cool down sufficiently before starting any work on the cooling sys-
tems!
– Check the cooling system for dirt.
– Remove the coarse dirt by hand, by cleaning the cooling system with the water
hose or using compressed air. Use a pressure cleaner only with a flat spray at
reduced pressure and from at least 30 cm away.
ADVICE
A plug-in connector for connecting the compressed air hose is located to the right of
the compressed air reservoir.

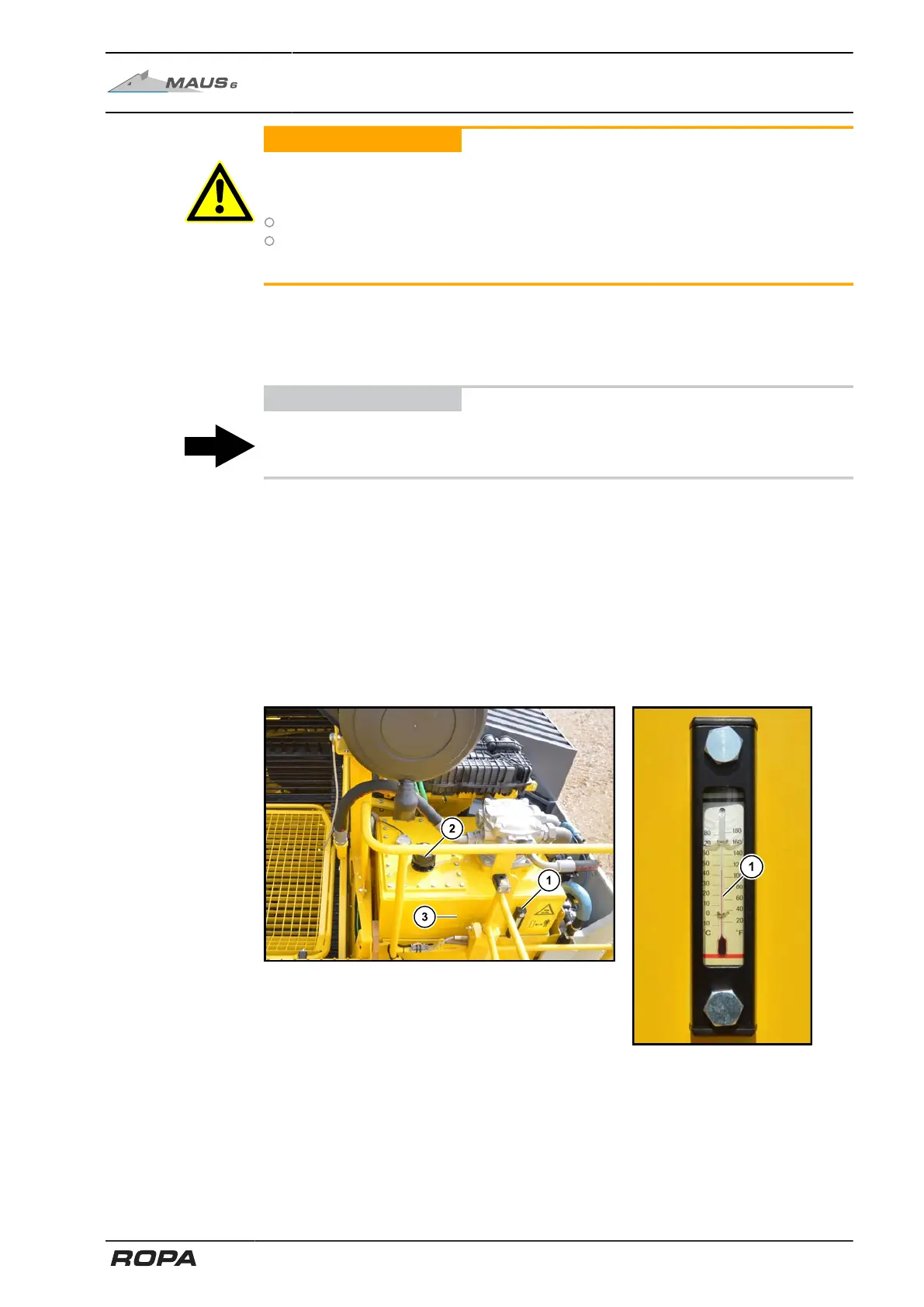

7.3.2 Hydraulic oil tank
The tank for the hydraulic oil is located on the cabin platform behind the railing. In
addition to the display on R-Touch, oil level and oil temperature can be read at the
inspection glass (1) on the front of the hydraulic oil tank (3). The hydraulic fluid level
should always remain in the range between the centre of the inspection glass and
the upper edge of the inspection glass. Make sure that the oil level in the hydraulic oil
tank is correct at all times. During all work on the hydraulic system, make sure of the
utmost cleanliness!
Please observe that different types of hydraulic fluid may not be mixed.
(1) Inspection glass oil level + oil temperature
(2) Oil filling cap hydraulic oil
(3) Front side hydraulic oil tank
