Operation
R-Concept
6.3.2.6.3 Individual headlights
There are three plugs on the machine. The additional working lights (ROPA
item no. 320100900) can be connected to these plugs.
The plug E081 (1) for individual headlight 1 is located at the infeed conveyor frame
behind the hydraulic oil tank. The plug E082 (2) for individual headlight 2 is located
behind the cover sheet at the very front compressed air reservoir. The plug E083 (3)
for individual headlight 3 is located behind the right front tyre under the cover sheet of
the control unit for operating hydraulics I.
You will need an extension cable to connect a working light. The extension cables are
available in the following lengths: 600 mm (ROPA item no. 330044900), 3200 mm
(ROPA item no. 330022500) and 5,000 mm (ROPA item no. 330027100).
You can connect up to two work lights to one plug using an Y-connector (4) (ROPA
item no. 322050800). (max. 70 W)
The correct function of the individual headlights is only guaranteed with the ROPA
work lights (ROPA item no. 320100900).

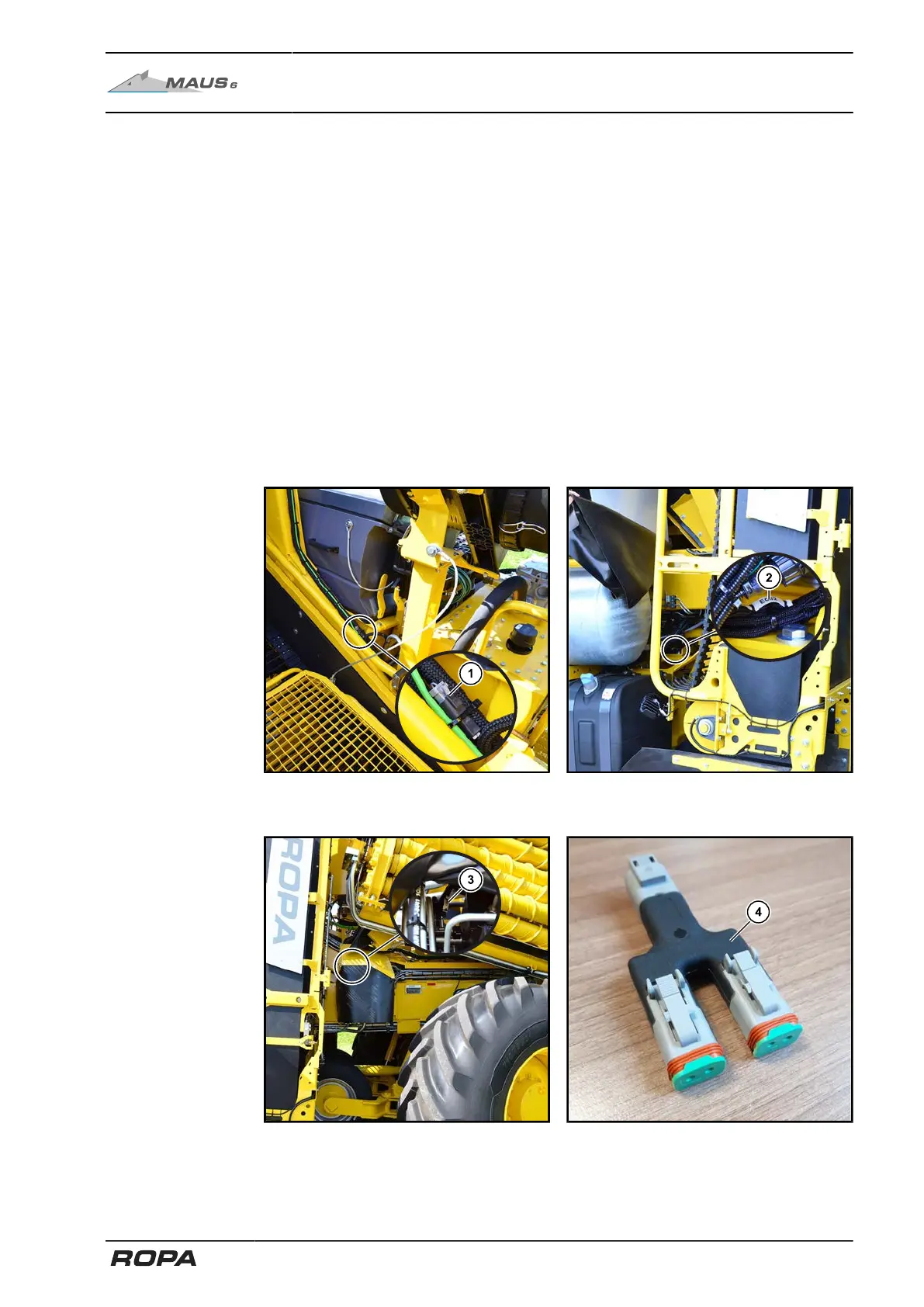

Plug for individual headlight 1 (E081) Plug for individual headlight 2 (E082)
Plug for individual headlight 3 (E083) Y-connector
143 / 546
