Maintenance and Service
Air conditioning and ventilation system
7.15.5 Folding down air conditioner
DANGER
Hazard of extremely severe injuries.
ALWAYS insert the cylinder support for the driver's cabin when working under the dri-
ver's cabin.
The air conditioner is installed under the cabin floor between the air intake duct and
the air exhaust duct. The lid can be opened when the air conditioning unit is folded
down. This way you get access to both heat exchangers, the sensors and the fan of
this unit.
ATTENTION
The air conditioner has an elastic seal at the front that must be released before you
can fold the unit down. Otherwise, this seal will be damaged.
At the rear, a robust seal is mounted onto a seal carrier, which can be removed sepa-
rately to create the necessary free space to release the front seal. The air conditioner
must be moved approx. 8-10 mm backwards before folding it down.
To fold down the air conditioner, proceed as follows:

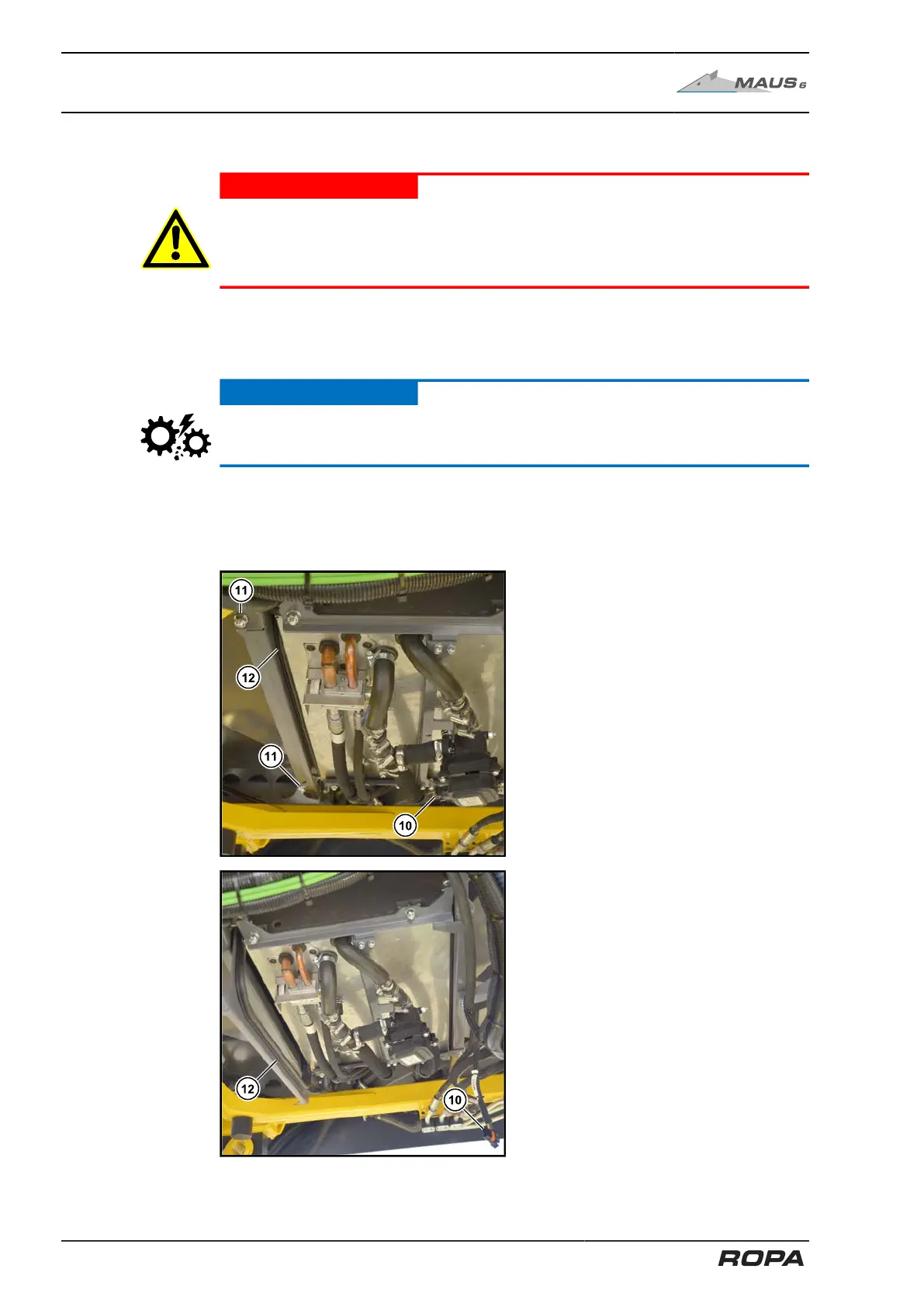

– Disconnect the M011 plug (10) from
the water valve.
– Remove both screws (11).
– Pull the seal carrier (12) completely
out in the downward direction.
430 / 546
