Maintenance and Service
Air conditioning and ventilation system

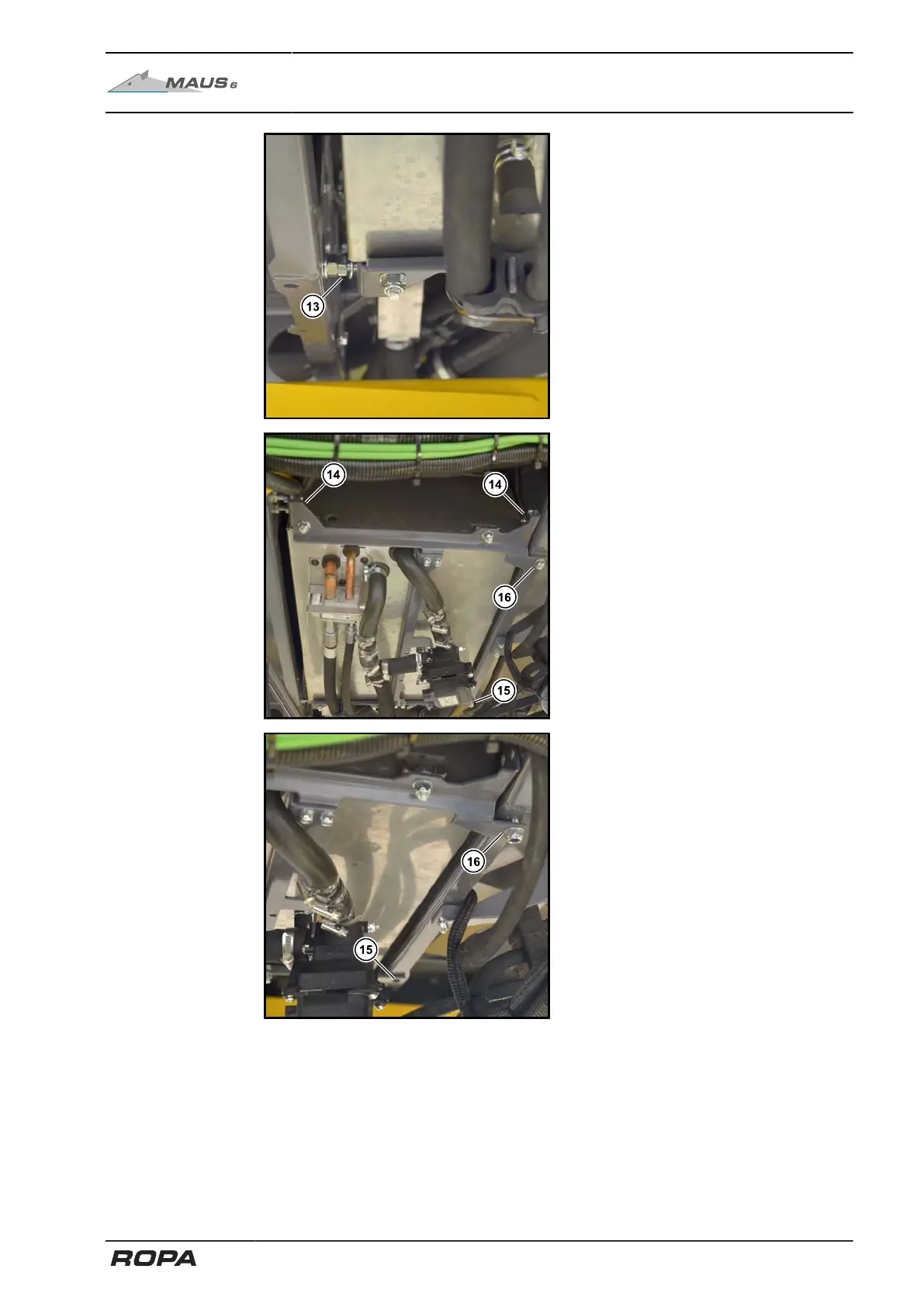

– Turn back the lock nut (13) on the
screw at the rear pivot point of the air
conditioner by approx. 10 mm. Turn
back the nut on the screw at the front
pivot point (not shown in the picture)
of the air conditioner by approx. 10
mm as well. Thus, you create free
space so you can pull the air-condi-
tioning unit backward later.
– Remove the horizontal screws (14)
on the right side of the air conditioner.
– Remove the screw (15) and then the
screw (16). During this process, hold
the air conditioner upwards and do
not let it accidentally fold downwards.
