Operation
Folding the machine out/in

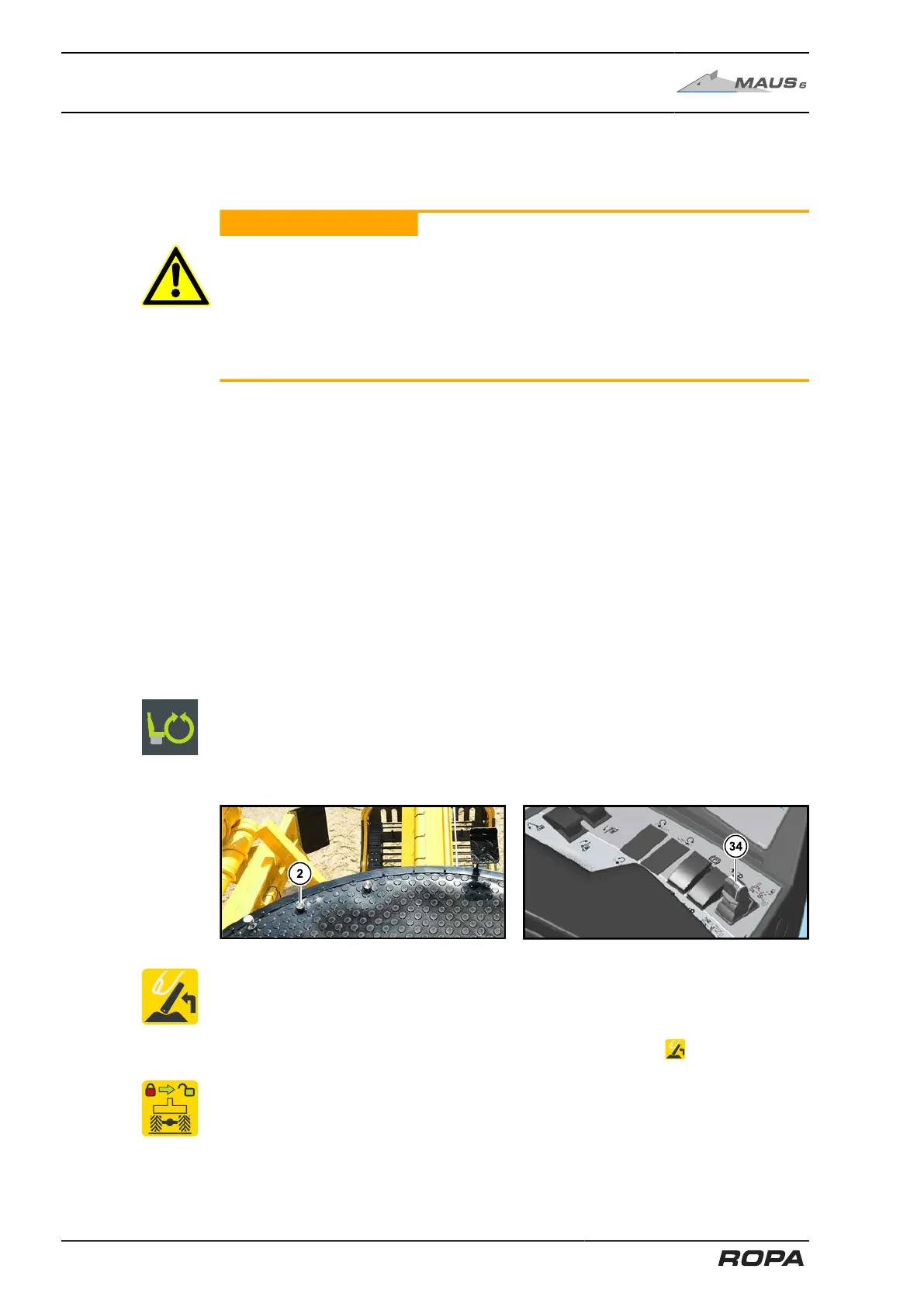

6.13.3 Folding in machine automatically in front
The condition is that the machine rear is completely folded in and the truck conveyor
rests on the transport support.
WARNING
Hazard of extremely severe injuries.
– Make sure, that nobody stands in the hazard zones when the machine is started.
– Make sure that there are no persons on the boarding platform.
– The driver is responsible for ensuring that there is nobody in the area between
the safety rail at the boarding steps and the cabin door when lifting or lowering the
cabin.
The following processes are executed automatically. During these processes,
several movements are performed simultaneously:
1 The speed of the diesel engine increases.
2 The pile pickup raises and rotates to the central position.
3 The residual beet pickup rotates to the central position. The telescoping mecha-
nism retracts about half-way.
4 The pickup is raised up to the end-stop.
5 The cabin lowers down completely to the end-stop.
6 The fold plates are swung down to the end-stop; simultaneously the clearing
shields and support feet move into the transport position.
7 The pickup side sections fold in completely to the end-stop.
8 The telescoping part of the pile pickup retracts completely and the pile pickup low-
ers to the central mark hatch.
9 As soon as these processes are completed, the diesel engine switches to idling
speed.
To start the automatic folding:
– Move the rotating seat forward to the central position until the rotating seat status
indicator on the R-Touch becomes green.
– Then press and hold the "Look forward" foot-switch (2).
– Press the analogue rocker switch (34) to the left and let it latch into position. Keep
pressing the foot-switch (2). If the foot-switch (2) is released, then, for safety rea-
sons, all movements are stopped.
– Now, please put the analogue rocker switch (34) in the central position again. If you
have forgotten this, the following is displayed on the R-Touch:
– Switch off oscillating axle support.
– Check visually if the machine is really in the transport position. If not, put the
machine into the transport position manually.
– Clean the machine so, that all lighting and warning devices are visible, the allowed
total weight is not exceeded and pollution of public roads is avoided.
216 / 546
