Operating Components

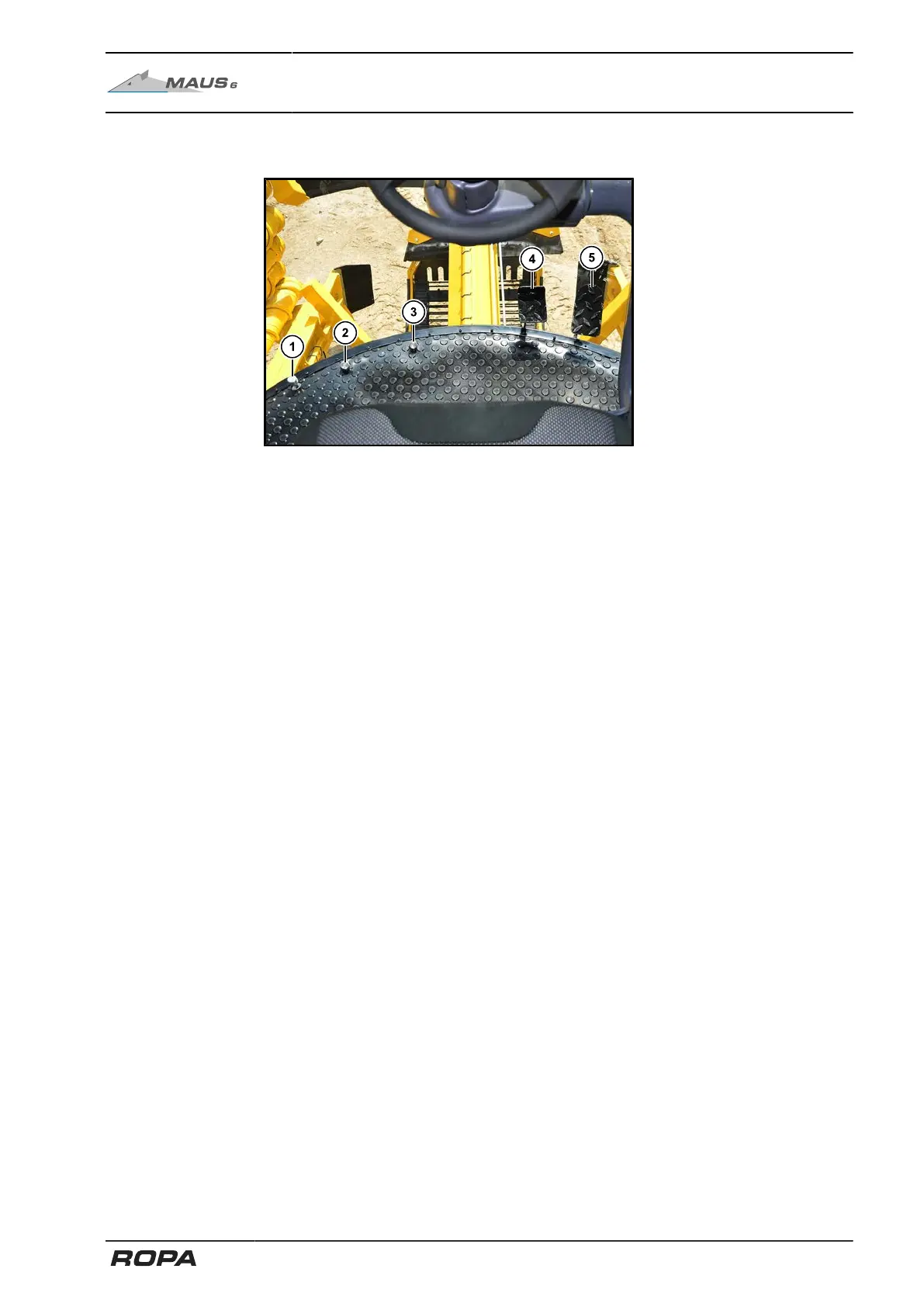

Operating components on the floor of the driver‘s cabin

5.8 Operating components on the floor of the driver‘s cabin

(1) Opener for cleaning flap

(2) Foot-switch look forward

(3) Foot switch driving direction

(4) Brake pedal

(5) Drive pedal
