Technical data and general view
General view

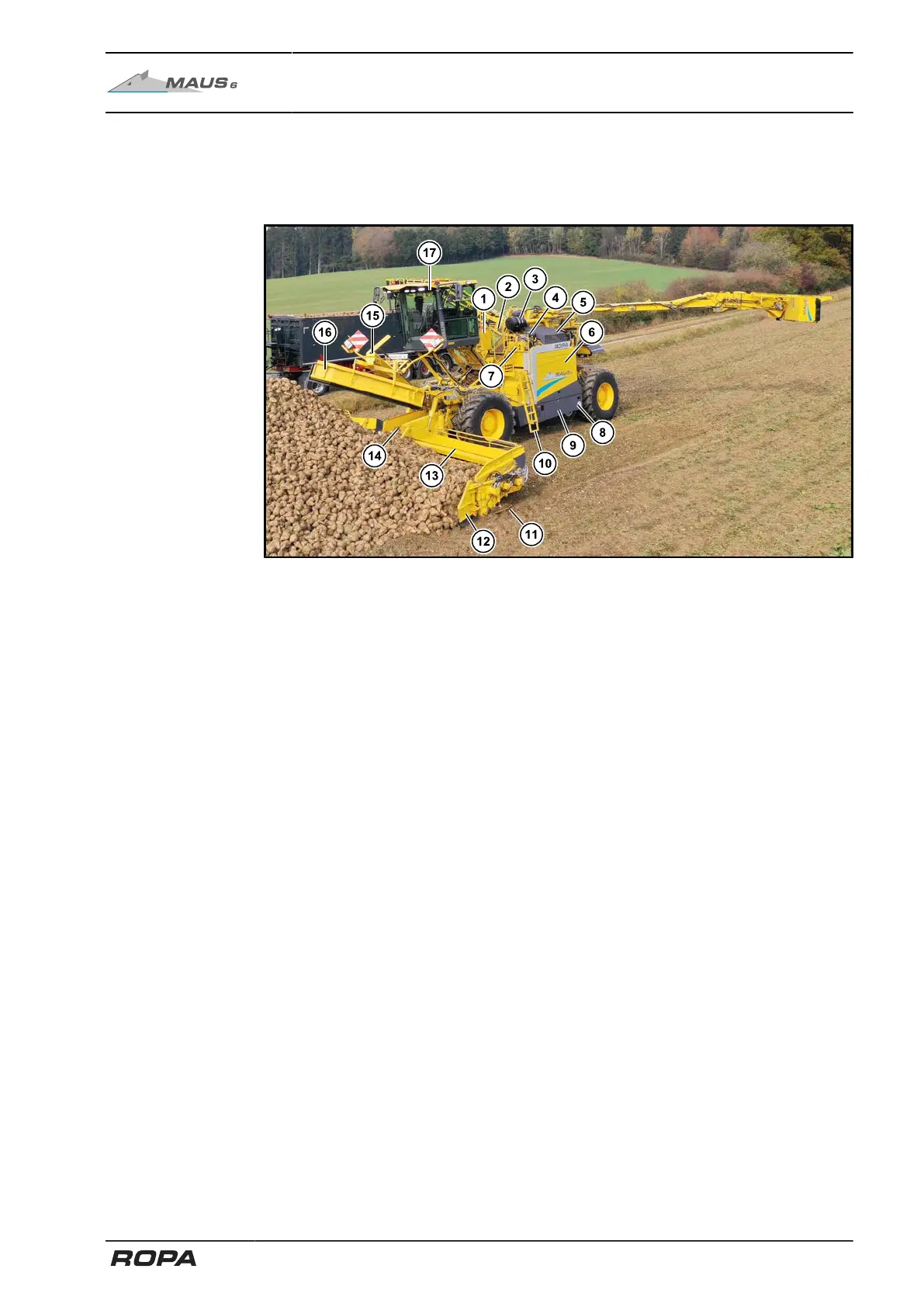

3.3 General view
This overview is intended to familiarize you with the most important components of
your machine.
(1) Central electrics cabinet
(2) Rear platform wall
(3) Air filter
(4) Expansion tank for coolant
(5) Intake grid for cooler
(6) Engine housing
(7) Hydraulic oil tank
(8) Storage compartment for tools
(9) Battery case
(10) Climbing ladder
(11) Support foot
(12) Clearing shield
(13) Pickup side section left
(14) Infeed conveyor
(15) Pile pickup (telescopic tube)
(16) Residual beet pickup
(17) Driver's cabin
47 / 546
