Maintenance and Service
Truck conveyor
7.12 Truck conveyor
7.12.1 Tensioning the truck conveyor
The truck conveyor must be tensioned as required. The belt tension is correctly set if
the bottom return side of the belt sags approx. 2 - 3 cm between the rollers with the
truck conveyor fully lowered and the conveyor articulation fully extended (truck con-
veyor almost straight).

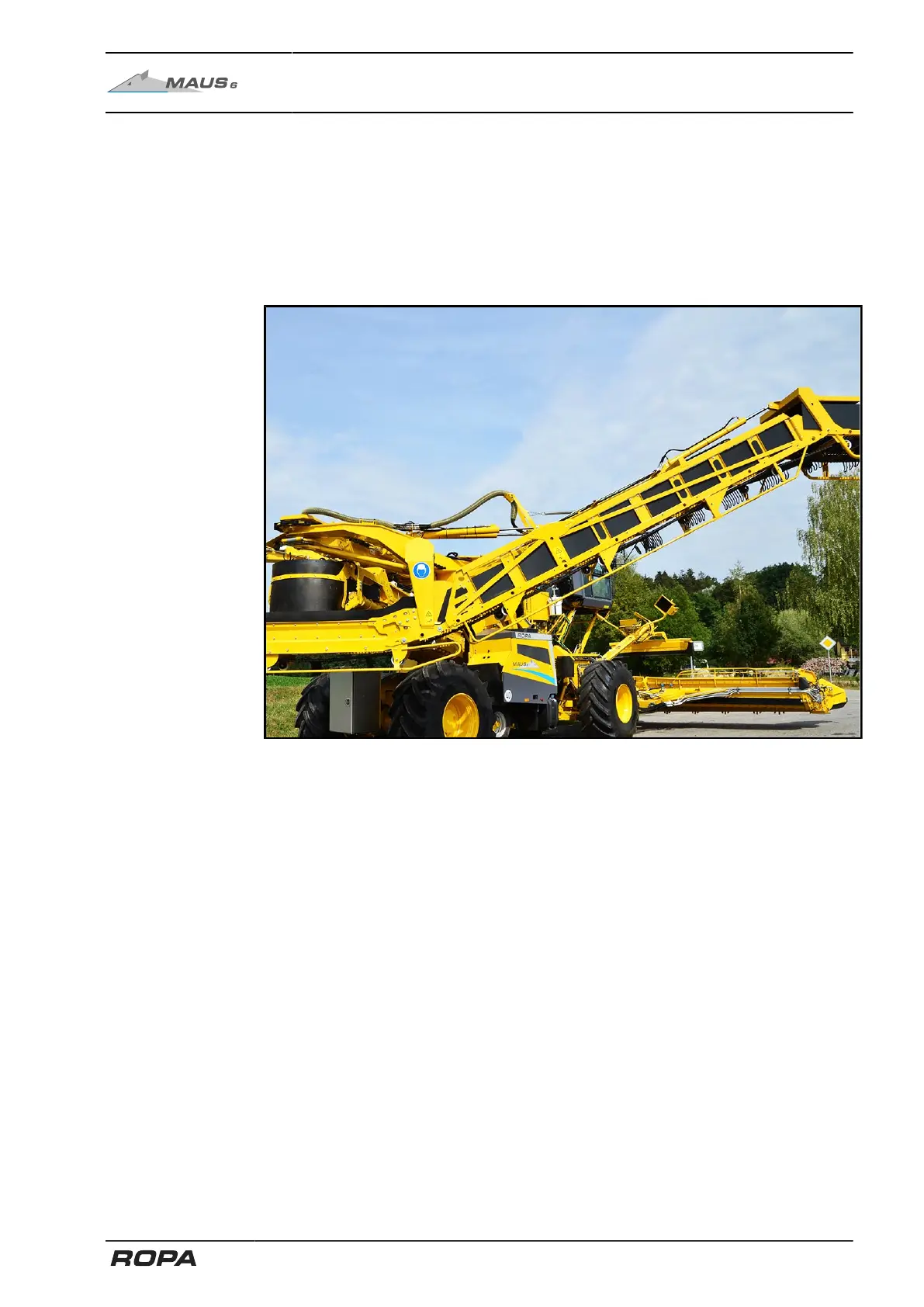

Truck conveyor correctly tensioned
Proceed as follows to tension the truck conveyor:
– Shut down the diesel engine and secure it against inadvertent starting.
– Loosen the fixing screws (1) for the deflector rollers on the right and left.
– Turn the nuts (2) on the tension rods (3) left/right until the left/right deflection rollers
are pushed back sufficiently far.
– Lock the nuts (2) on the tension rod (3) left/right.
– Tighten the fixing screws (1) for the deflector rollers on the right and left.
– Always make sure that you tension both sides of the belt evenly to prevent the belt
from wearing more on one side and being damaged.
