ROPA Maus 6 - Counterweight Arm

Maintenance and Service
Counterweight arm
7.13 Counterweight arm

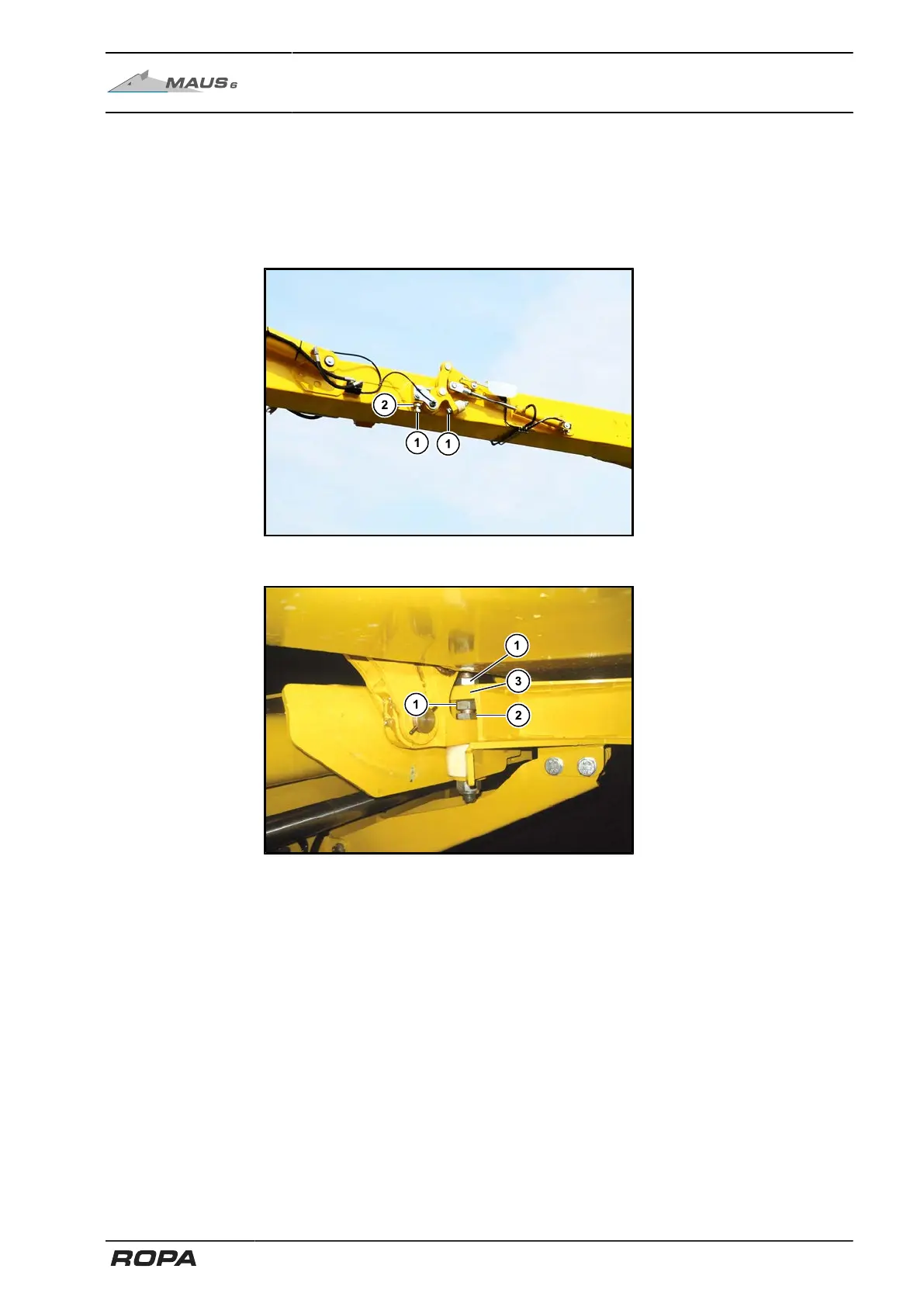

Adjusting counterweight arm lock stop screws
As soon as the clamp is no longer rigid, the stop screws (1) must be adjusted. To do
this, loosen the lock nuts (2) on the stop screws and adjust the screws until there is no
more play at the clamping position (3) on the swivel arm.
Counterweight arm lock
425 / 546
