Operating Components
Operating console R-Concept

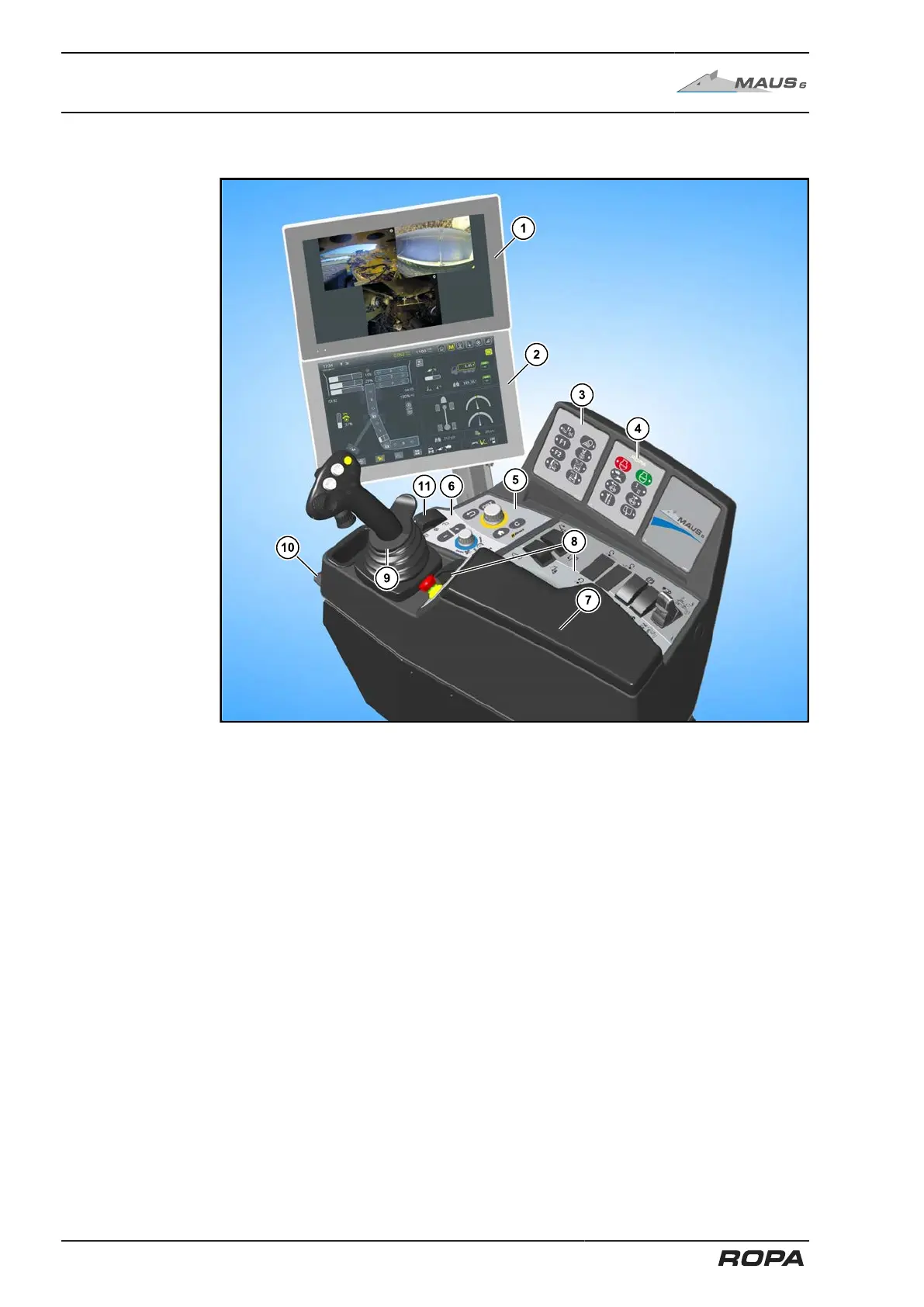

5.9 Operating console R-Concept
For a detailed description see Chapter 6 "Operation" (See Page 103). The console is
divided into different operating fields:
(1) R-Touch auxiliary terminal
(2) R-Touch main terminal
(3) Keypad I
(4) Keypad II
(5) Operating panel R-Direct
(6) Operating panel R-Select
(7) Foldable armrest with storage compartment
(8) Switches on operating console
(9) Right joystick with multi-functional handle
(10) Lever height adjustment operating console
(11) Main steering switch
82 / 546
