7.6 Axles
7.6.1 Planetary gears (applies to both axles)
The first oil change is required after 50 operating hours, further oil changes must be
performed annually.

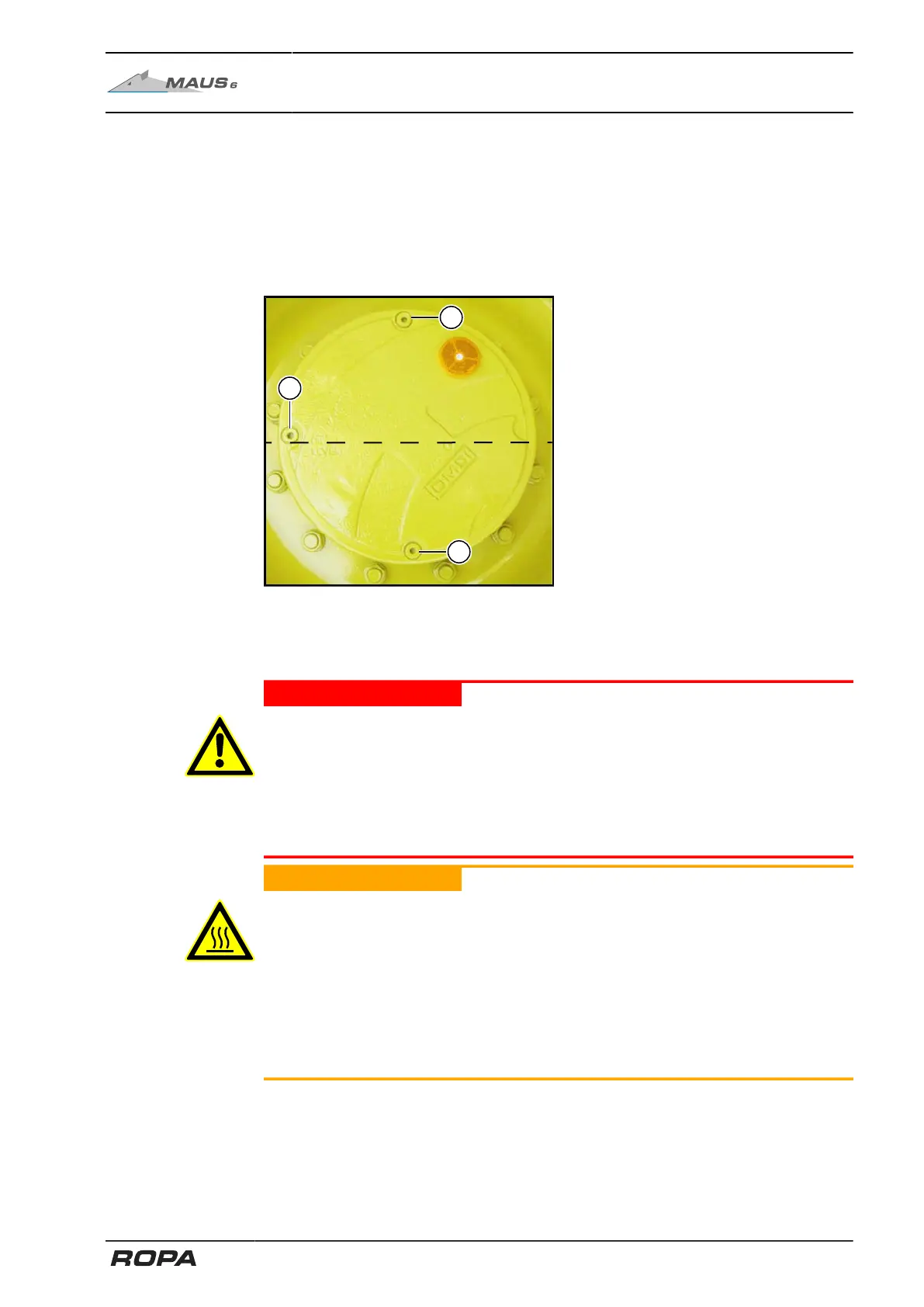

Park the machine so that the respective wheel is sitting as shown in the illustration.
(1) Oil filling opening and oil level control screw
(2) Oil drain screw
(3) Bleeding screw
DANGER
Injury hazard!
Hazard to life due to moving machine parts.
– Before oil change, each time stop the machine and switch off the engine.
– Secure the diesel engine against accidental start-up, keep the ignition key out of
reach of any third party!
– All maintenance and repair work may only be performed by trained personnel.
WARNING
Hazard of hot oil emitting under pressure!
The oil of the planetary gears may become very hot and, due to heating up, may be
under some pressure.
– Always wear gloves and suitable personal protective equipment (See Page 37)
when changing oil on the planetary gears.
– Always first unscrew the bleeding screw very slowly and with the required cau-
tion. So that the pressure, which may have built up in the planetary gears, can be
relieved without danger.
