ROPA Maus 6 - Removing and Installing Pickup and Cleaning Roller

Maintenance and Service
Pickup
7.8.4.1 Removing and installing pickup and cleaning roller
The pickup roller and cleaning roller can only be removed together, because the fin-
gers of the pickup roller move between the discs of the cleaning roller.
ADVICE
The gear oil of the pickup roller gears does NOT have to be drained to remove the
rollers.
3
2
1
13
4
7
6
8
5

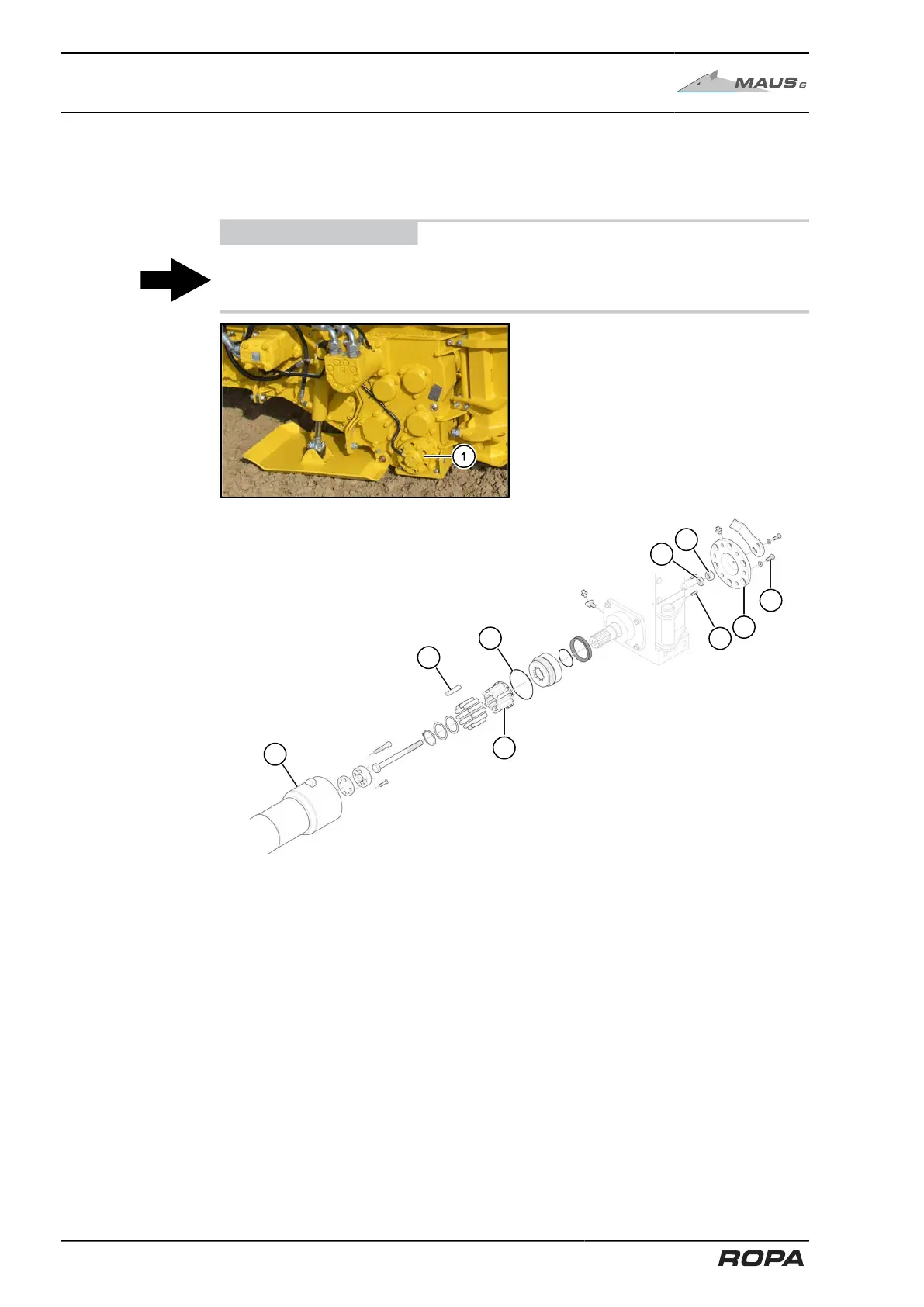

Before removing the pickup roller the cover (1) of the bearing flange (outside of gear-
box) must be removed:
– Unscrew the lubrication line.
– Unscrew six hexagon bolts (2) (SW 13) on the cover and remove the cover.
– Unscrew the two grub screws (3) out far enough so the flat nut (4) is blocked.
– Loosen the lock nut (13) (SW30), screw in the two grub screws again and remove
the two nuts.
– Pull the pickup roller (5) from the gearbox. The pickup roller is only held by 12
plastic carriers (6). These 12 plastic carriers (ROPA item no. 100284900) (6)
must be replaced every time the pickup roller is removed. The O-ring (ROPA
item no. 412021700) (7) must also be replaced.
398 / 546
