Operation
Folding the machine out/in

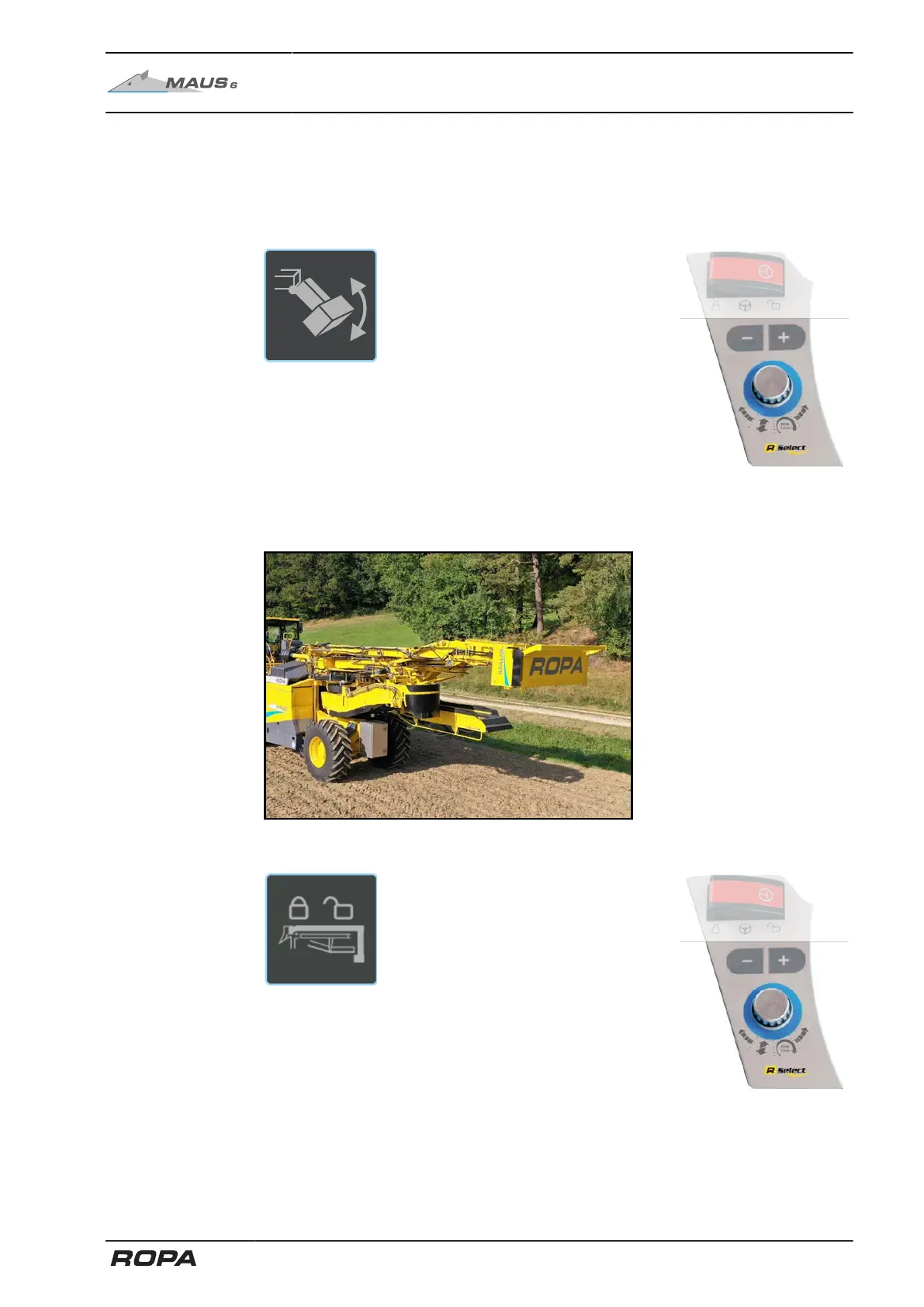

6.13.6 Folding out machine manually at rear
Condition for this is that the machine front is already folded out and the driver's cabin
is raised to the end-stop. (See Page 212)
– Raise counterweight (fuel tank).
Raise/lower counterweight
Choose this function with R-Select.
+ key = raise counterweight
- key = lower counterweight
In general, always first raise the counterweight to the end-stop. You thereby mini-
mize the risks of collision between the truck conveyor and the counterweight arm if the
monitoring sensors malfunction.
– Unlock counterweight arm.
Counterweight arm lock
Choose this function with R-Select.
+ key = unlock counterweight arm
- key = lock counterweight arm
