Maintenance and Service
Infeed conveyor
7.10.1 Tensioning infeed conveyor
WARNING
Hazard of severe injuries.
The retension of the infeed conveyor belt may only be performed with the drive
switched off and the diesel engine shut down.
– Before maintenance and repair work, the machine must be shut down and the
diesel engine switched off.
– Secure the diesel engine against accidental start-up, keep the ignition key out of
reach of any third party!
Check the tension of the infeed conveyor only with the pickup folded out and lowered
to working height.

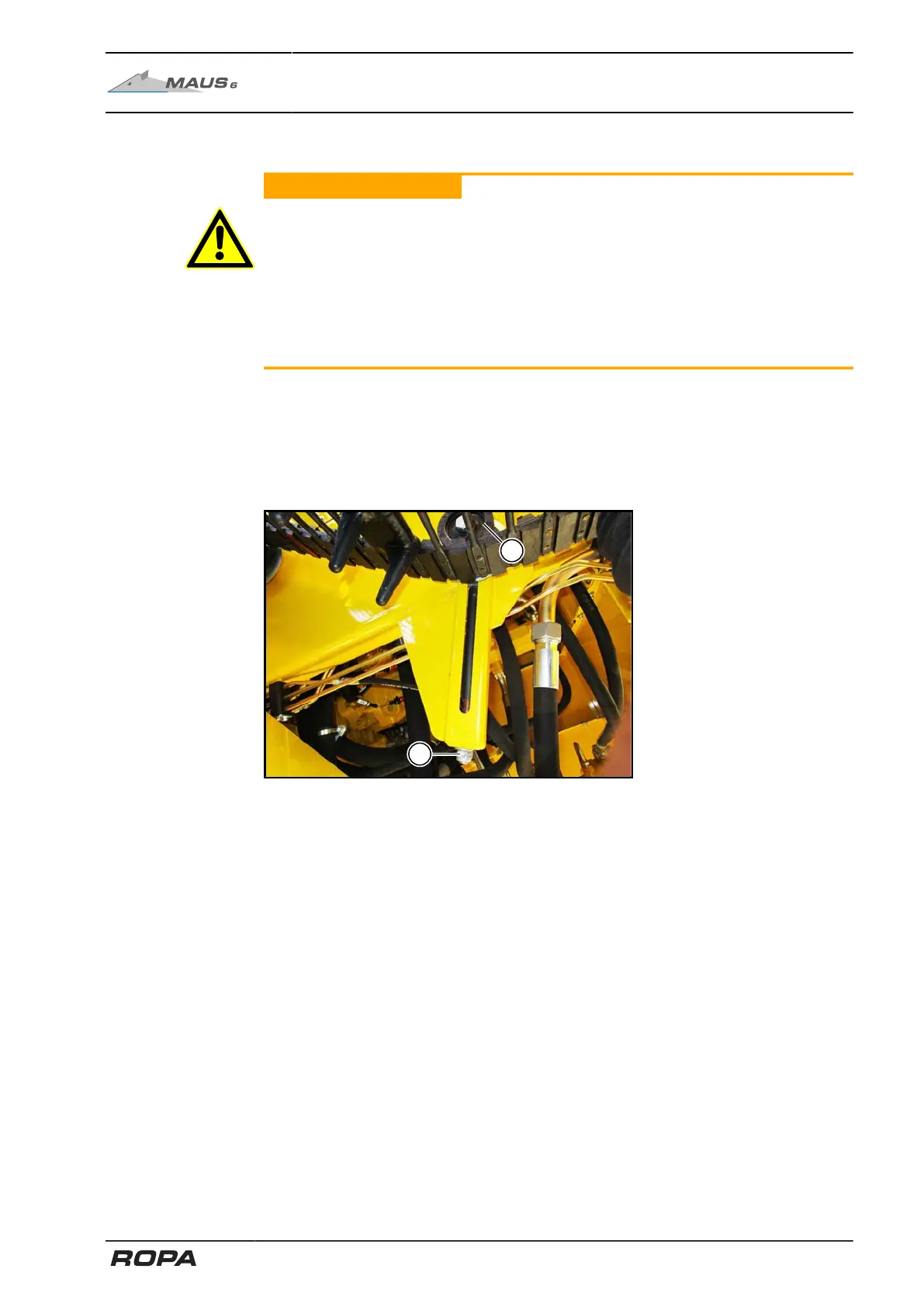

If it is necessary to tension the infeed conveyor, loosen the fastening screws from the
tension roller (2) (right and left behind the front wheel on the bottom of the frame tube)
and with the aid of the tension screw (1) pull the tension roller down (2). Make sure
that the tension rollers (2) are pushed out equally on both sides.
(1) Tensioning bolt
(2) Tension roller
