Operation
Pneumatic system
6.19.3 Compressed air reservoir
The machine has five compressed air reservoirs, which are installed under the right
side cover. The four large compressed air reservoirs supply the brake system and the
pneumatic system with compressed air. The small compressed air reservoir (3) is for
regeneration of the air dryer. A compressed air service connector (4) is installed under
the tarpaulin on the very front compressed air reservoir.

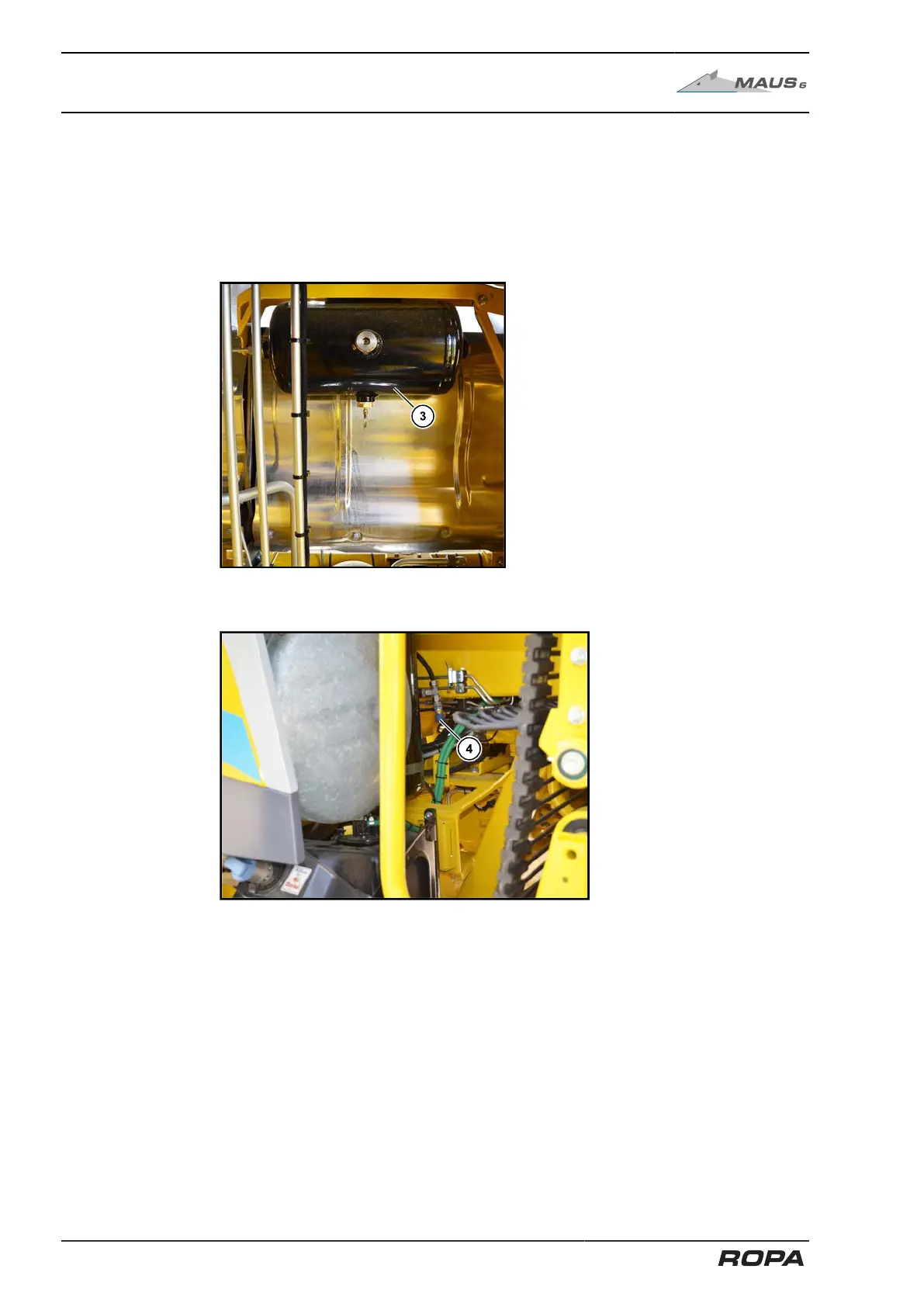

(3) Compressed air reservoir
(4) Compressed air coupling on the front compressed air reservoir
