ROPA Maus 6 - Fuses in the Battery Case

Malfunction and Remedies
Fuses
8.2.2 Fuses in the battery case

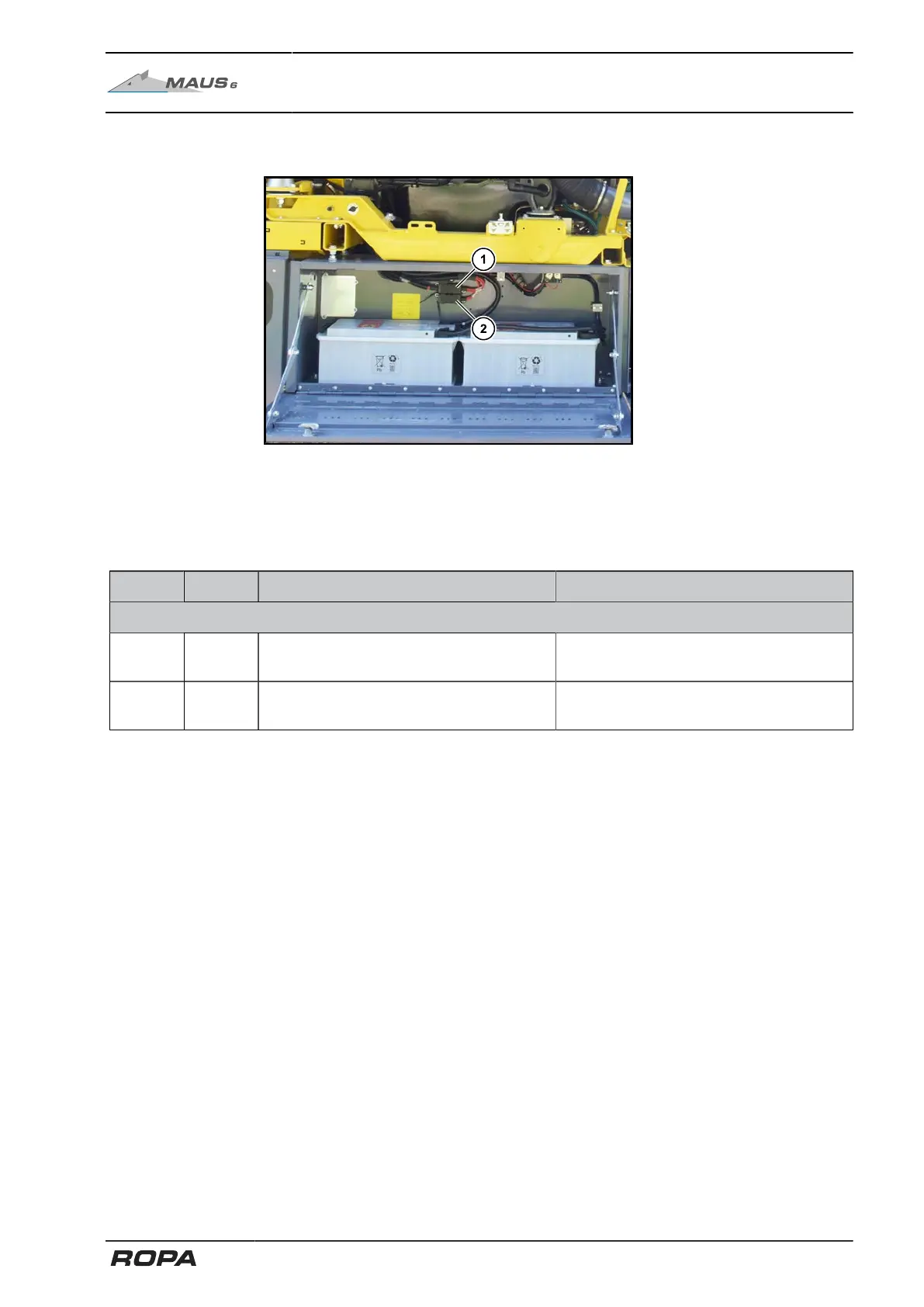

The main fuses are situated in the battery case (Mega fuse).
F001 (1) to the central electrics, Pin X1.
F002 (2) to the central electrics, PinX2.
Whether these fuses are intact can be determined using the measuring device (conti-
nuity tester).
No. Ampere Occupation Pos. in the machine
Main power supply, screwed Littelfuse® MEGA® fuses
F001 125 Supply central electrics X1, computer A001,
diesel engine
in the battery case, top fuse (1)
F002 125 Supply central electrics X2, computer A002,
computer A003
in the battery case, bottom fuse (2)
