Operation
Central lubricating system

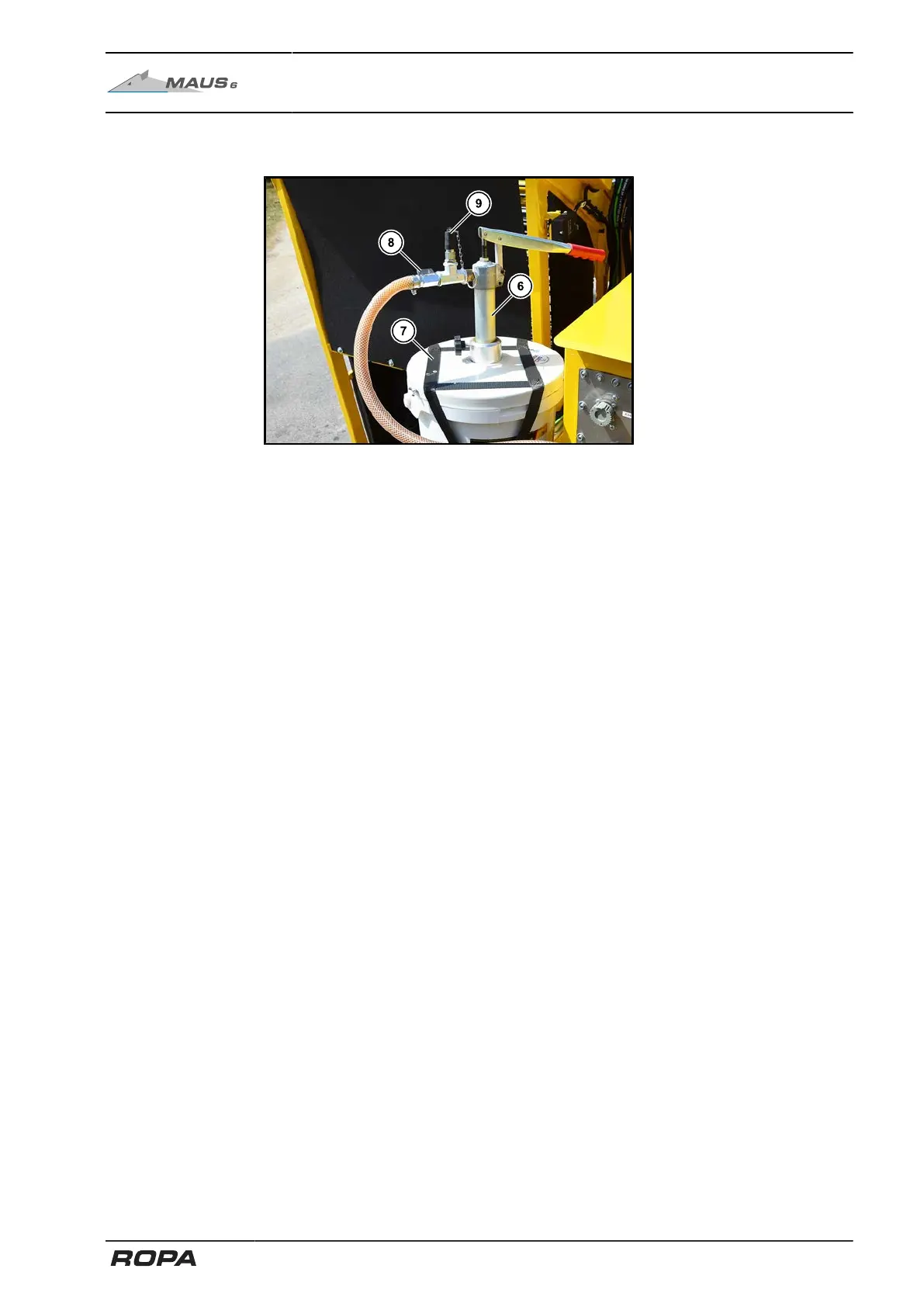

6.20.3 Filling up grease gun
(6) Central lubrication refill pump
(7) 18-kg grease bucket
(8) Stopcock
(9) Nipple for filling up the hand lever grease gun
A stopcock (8) and a plug-in connector (9) for filling the hand lever grease gun is
located in the supply hose to the lubricating pump. It enables direct filling of the hand
lever grease gun in the on-board tool kit from the grease bucket. For this purpose,
press the hand lever grease gun into the connecting nipple (9) and close the stopcock.
When you press the pump lever of the grease bucket, then the hand lever grease gun
is filled up with lubricating grease.
325 / 546
