Pile pickup with residual beet pickup
7.9 Pile pickup with residual beet pickup
Clean major soiling from the hydraulically actuated parts and coat the telescopic tube
with grease as required.

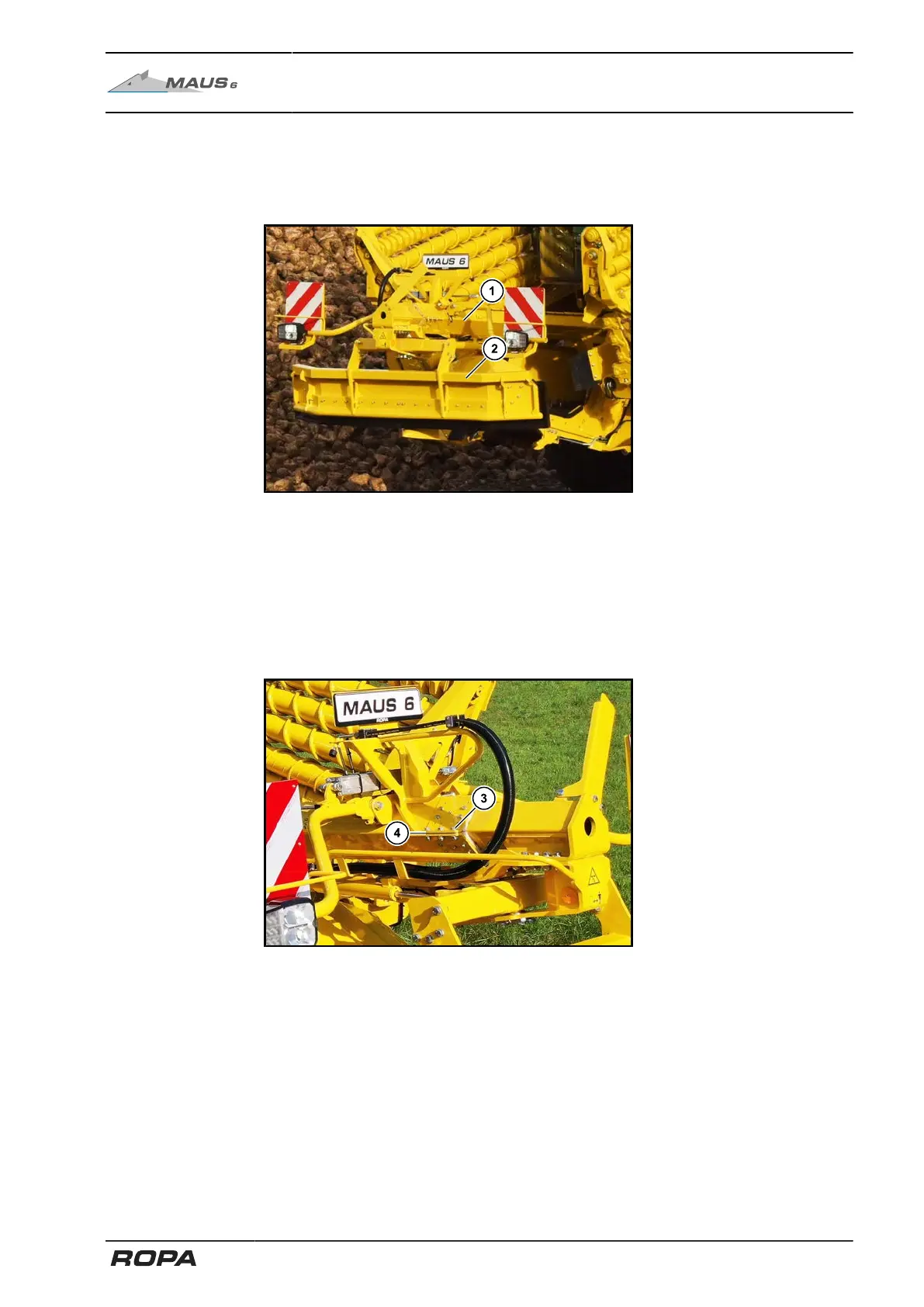

(1) Pile pickup
(2) Residual beet pickup
The play between the outer and inner pipe of the telescopic tube can be adjusted as
follows:
– Remove the six hexagonal screws (3).
– The play is adjusted with spacers (4).
– Replace the six hexagonal screws.
