Maintenance and Service
Diesel engine
7.1.4 Fuel system
ADVICE
Hazard of damage to the environment from leaking fuel. When working on the filter,
first set up the catching pan and properly dispose of fuel caught.
WARNING
Burning hazard when handling diesel fuel.
Smoking, fire and open flames are prohibited when handling diesel fuel, because
fuels are easily combustible and fuel fumes cause an explosion hazard. Always make
sure of sufficient supply of fresh air when handling fuels.
Hazard of skin injuries and poisoning. Diesel fuel may cause damage to the skin in
case of direct contact. When handling diesel fuel, always wear suitable protective
gloves, avoid inhaling fuel fumes, because it may lead to poisoning effects.

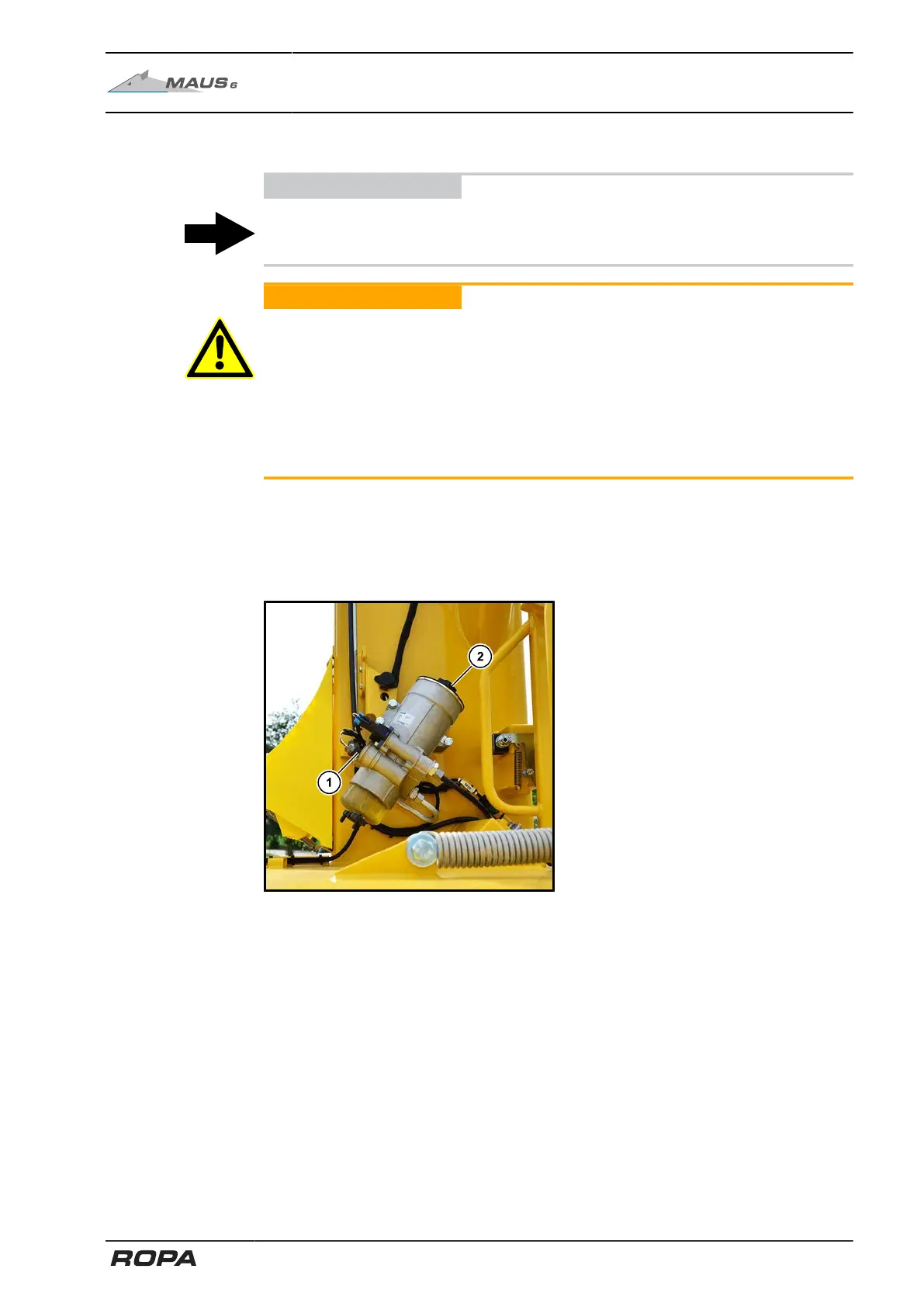

The diesel fuel is pumped by the electric pump (1) through the fuel filter (2) with an
integrated water separator and a preheater to the intermediate tank (5) above the
diesel engine. The fuel pump pumps the diesel fuel from the intermediate tank (5)
through the two filters on the diesel engine (fuel prefilter and fuel fine filter) to the high-
pressure pump.
(1) Electric pump for diesel fuel
(2) Fuel prefilter at the electric pump
