Maintenance and Service
Diesel engine

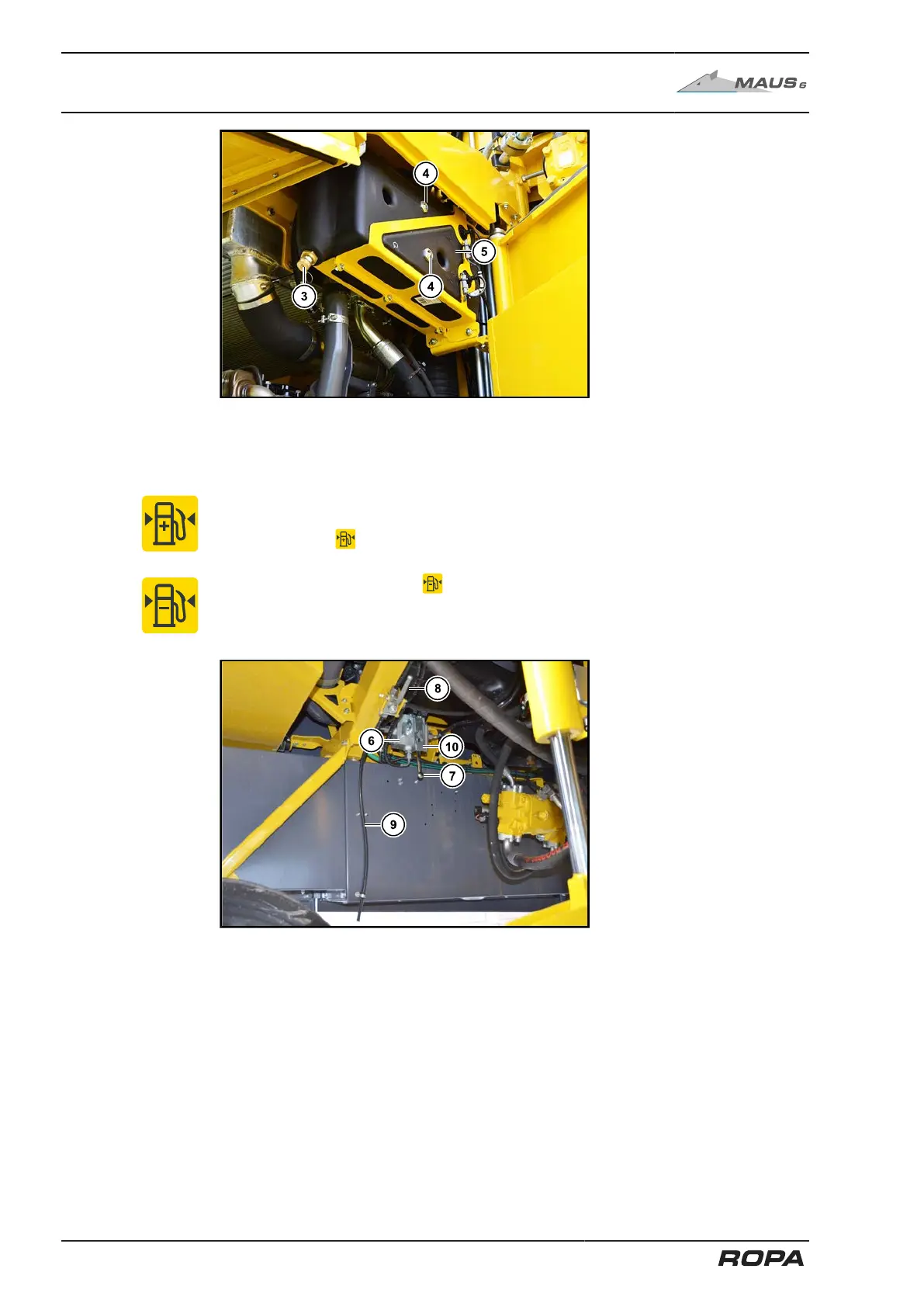

(3) Drain valve intermediate tank
(4) Inspection glasses as fill level indicator for the intermediate tank
(5) Intermediate tank
The filter cartridges must be exchanged according to the maintenance plan. The fuel
filters at the diesel engine must be immediately exchanged, independent of operating
hours, if the icon appears on the R-Touch.
However, if the following icon appears on the R-Touch, the fuel prefilter insert at the
electric pump must be exchanged.
(6) Fuel system control unit
(7) Fuel system service lever
(8) Fuel system 3-way tap
(9) Fuel fine filter drain hose
(10) Safety flap for fuel system service lever
