Operation
Video system

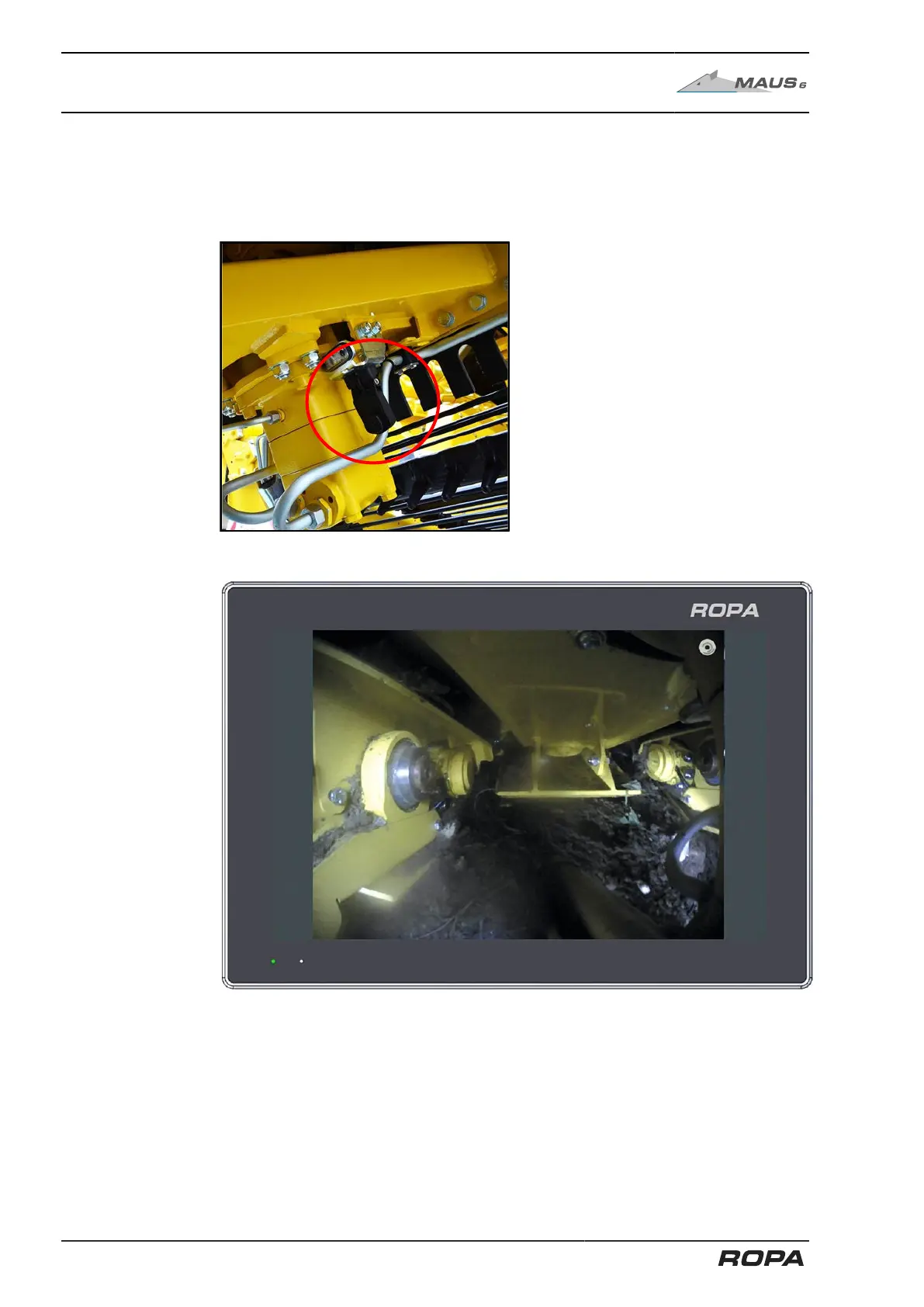

6.21.2 Central mark camera
The cetral mark camera is installed at the front under the central mark and is used to
determine the correct working depth. Always switch on the lights for the central mark
camera while loading in the "Light control" menu (See Page 139).
Central mark camera
Example with optimum adjustment on the image made by central mark camera. No
beet fragments, pickup roller bearing is visible over the ground.
328 / 546
