Operating Components
Operating console R-Concept
5.9.3 R-Select

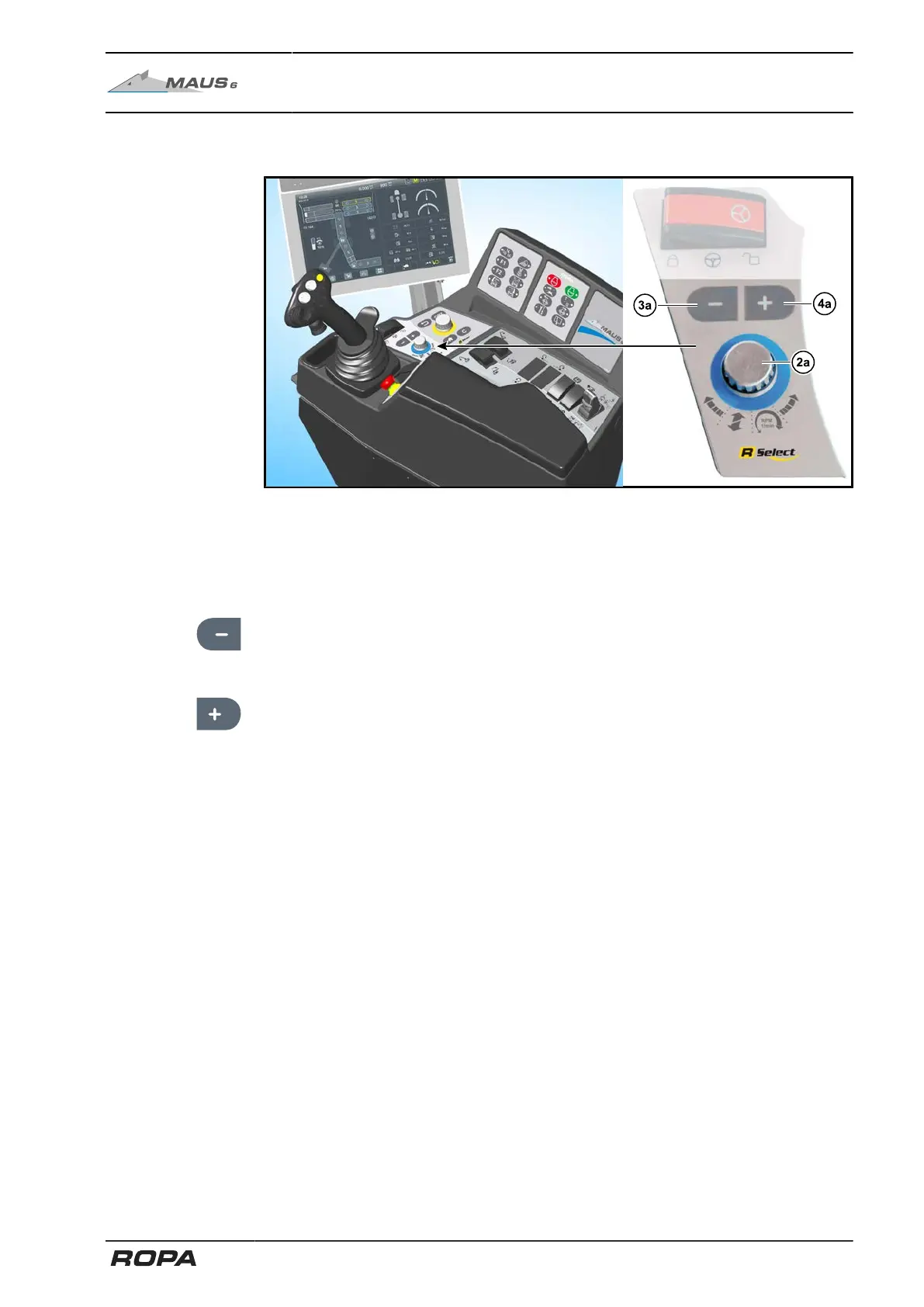

The R-Select (2) (BLUE operating panel colour) allows the driver to perform about 15
different functions without knowing the menu structure. Generally, there are two possi-
bilities to operate the selection area of R-Select (2b). You can select the desired func-
tions either by rotating the R-Select wheel (2a) or by touching the corresponding keys
on the touch screen. The selected function is displayed in yellow.
(3a) – Key:
Thus, the selected function is slowed respectively rotation speed, pressure or drive
speed are reduced.
(4a) + Key:
Thus, the selected function is accelerated respectively rotation speed, pressure or
drive speed are increased.
