Operation
Water spray system (option)
6.15.1.2 Recleaner water spray nozzles

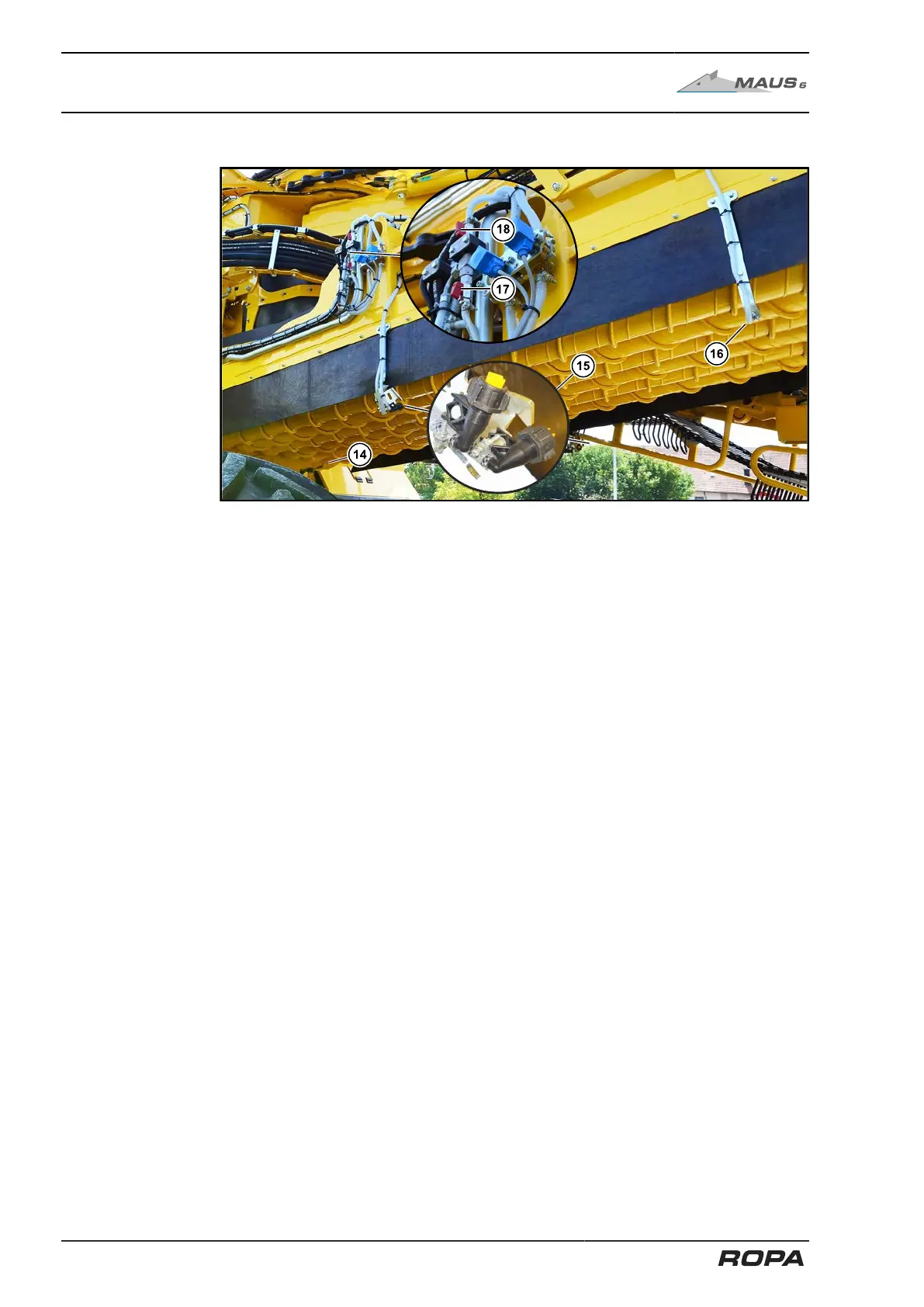

Recleaner water spray nozzles on DUO water spray system (option)
(14) Front spray nozzles on the recleaner
(15) Central spray nozzles on the recleaner
(16) Rear spray nozzles on the recleaner
(17) Stop valve for the rear half of the centre spray nozzles
(18) Stop valve for the rear spray nozzles
286 / 546
