Operating Components
Operating console R-Concept
5.9.9 Right joystick with multi-functional handle
The joystick enables easy control of a multitude of functions of the machine with a sin-
gle hand without distracting the attention of the operator. For better orientation, there
are transparent stickers located on the side window of the driver's cabin containing the
following schematic overviews of all functions of the joystick with multifunctional han-
dle. For a detailed description, see: See Page 157.

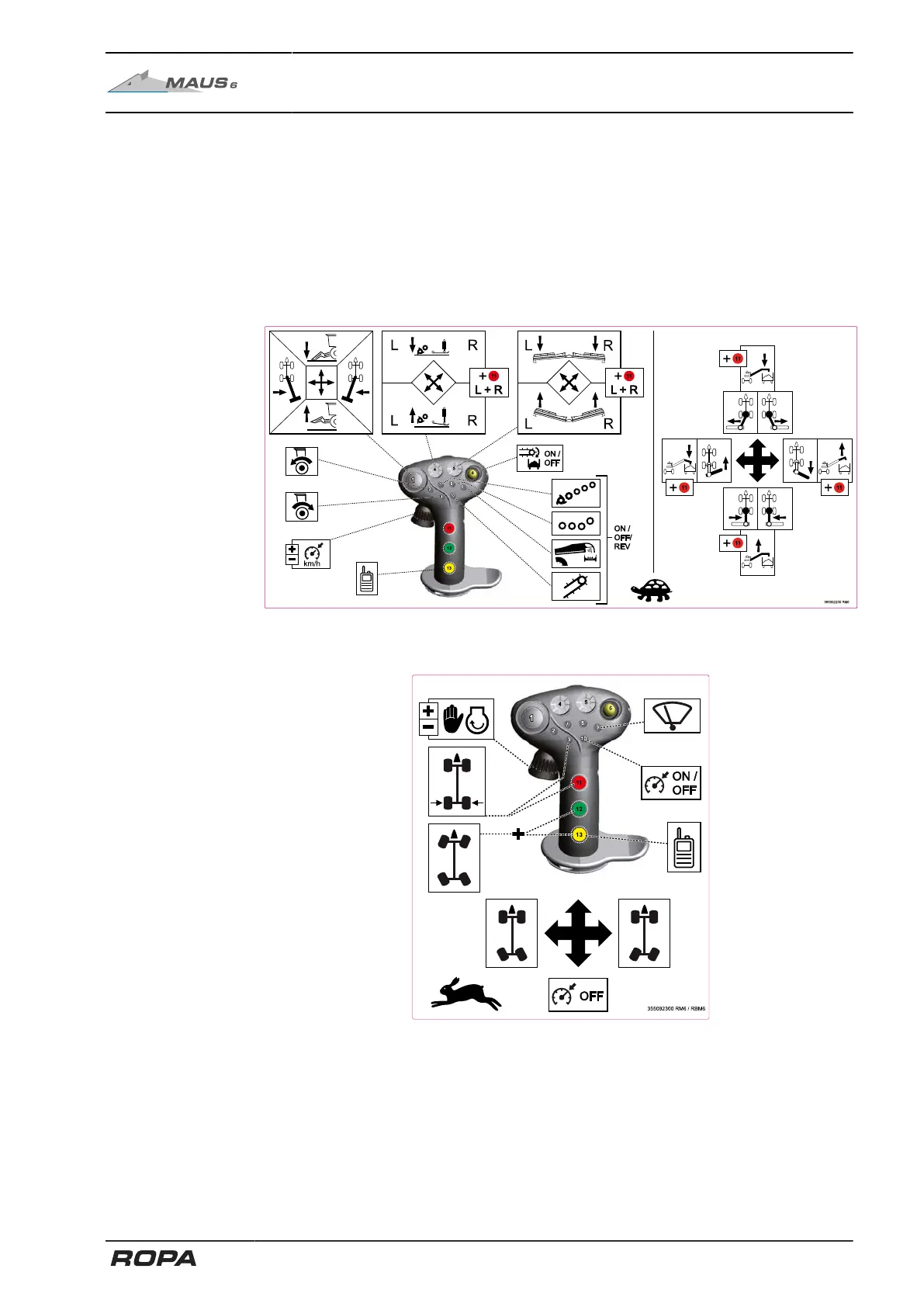

Joystick functions in the operating mode "Turtle"
Joystick functions in the operating mode "Rabbit"
