Operation
Folding the machine out/in

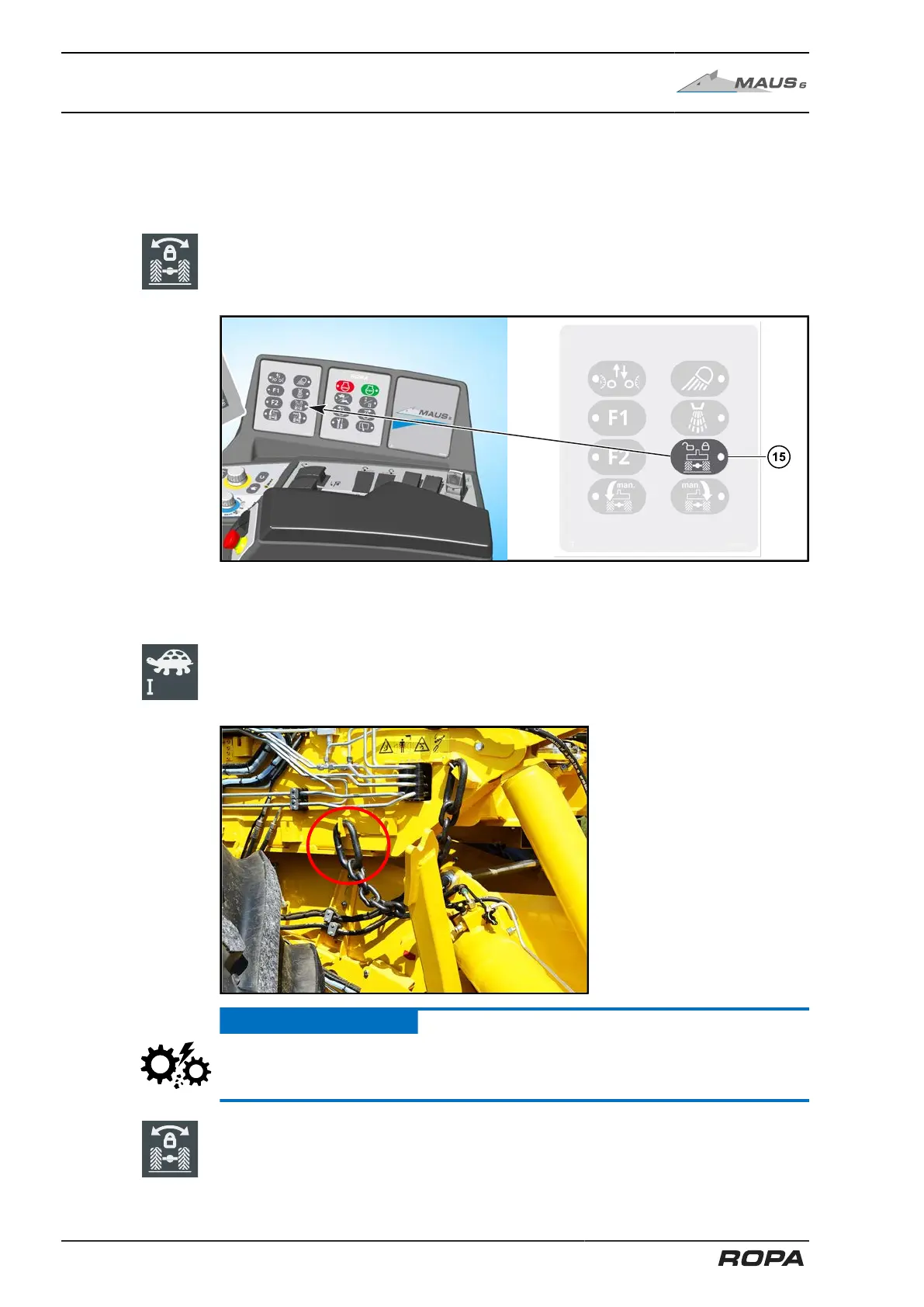

6.13 Folding the machine out/in
With the help of automatic folding the machine can be set into loading or transport
position.
– Switch on the oscillating axle support for the rear axle before folding out the
machine. Press the key (15) on the keypad I. LED lights.
6.13.1 Folding out machine with the help of automatic folding in front
– Switch to the "Turtle I" operating mode. (See Page 186)
– Before folding out, remove securing chains for the pickup and insert them into the
hooks on the vehicle frame provided for this purpose.
ATTENTION
Risk of machine damage.
Do not intentionally lower the pickup into the securing chains.
– Switch on the oscillating axle support for the rear axle before folding out the
machine. (See Page 212 See Page 248)
