Maintenance and Service
Truck conveyor

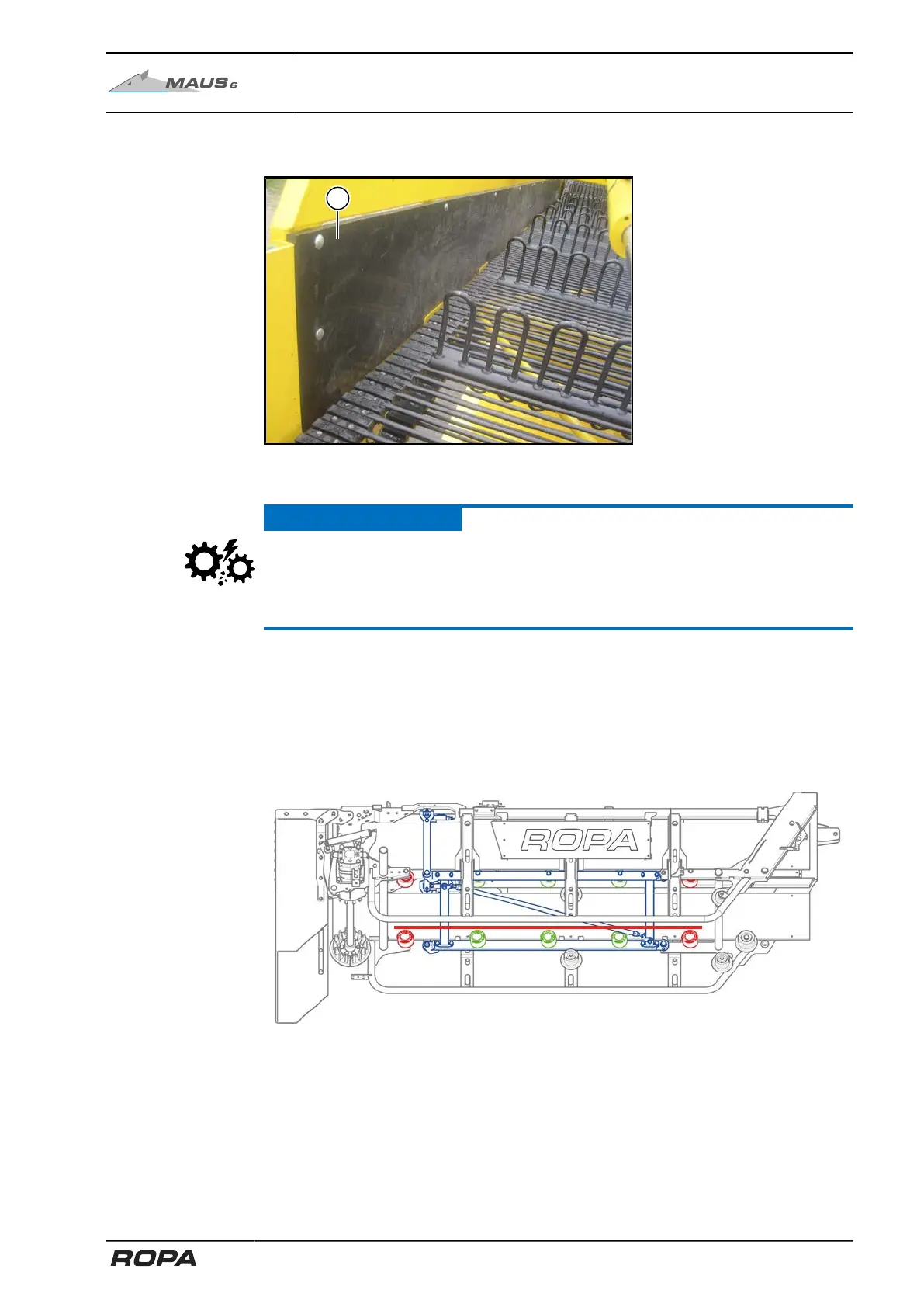

The side walls of the truck conveyor are wear-resistant plastic plates (6). They are
designed to be turned four times quickly and easily.
7.12.2 Scales (option)
ATTENTION
In general, during any maintenance and repair work, avoid blows and bumps to the
weighing frame as they also affect the weighing cells. Such stresses can result in
bending of the weighing cell and lead to significant deviations in the weighing result.
Such damage is not visible to the naked eye.
7.12.2.1 Settings on the scale's mechanics
Exchange support rollers (truck conveyor)
If you change a support roller on the weighing frame or a support roller before or after
the weighing frame, make absolutely sure when installing these rollers that every five
support rollers are installed at the exactly same height (see drawing - red line).
green = support rollers in the scale frame
red = fixed support rollers before and after weighing frame
red line = same height of the support rollers
blue = weighing frame with connecting lever to the weighing cell
