ROPA Maus 6 - Fuses in the Drivers Cabin Seat Console

Malfunction and Remedies
Fuses

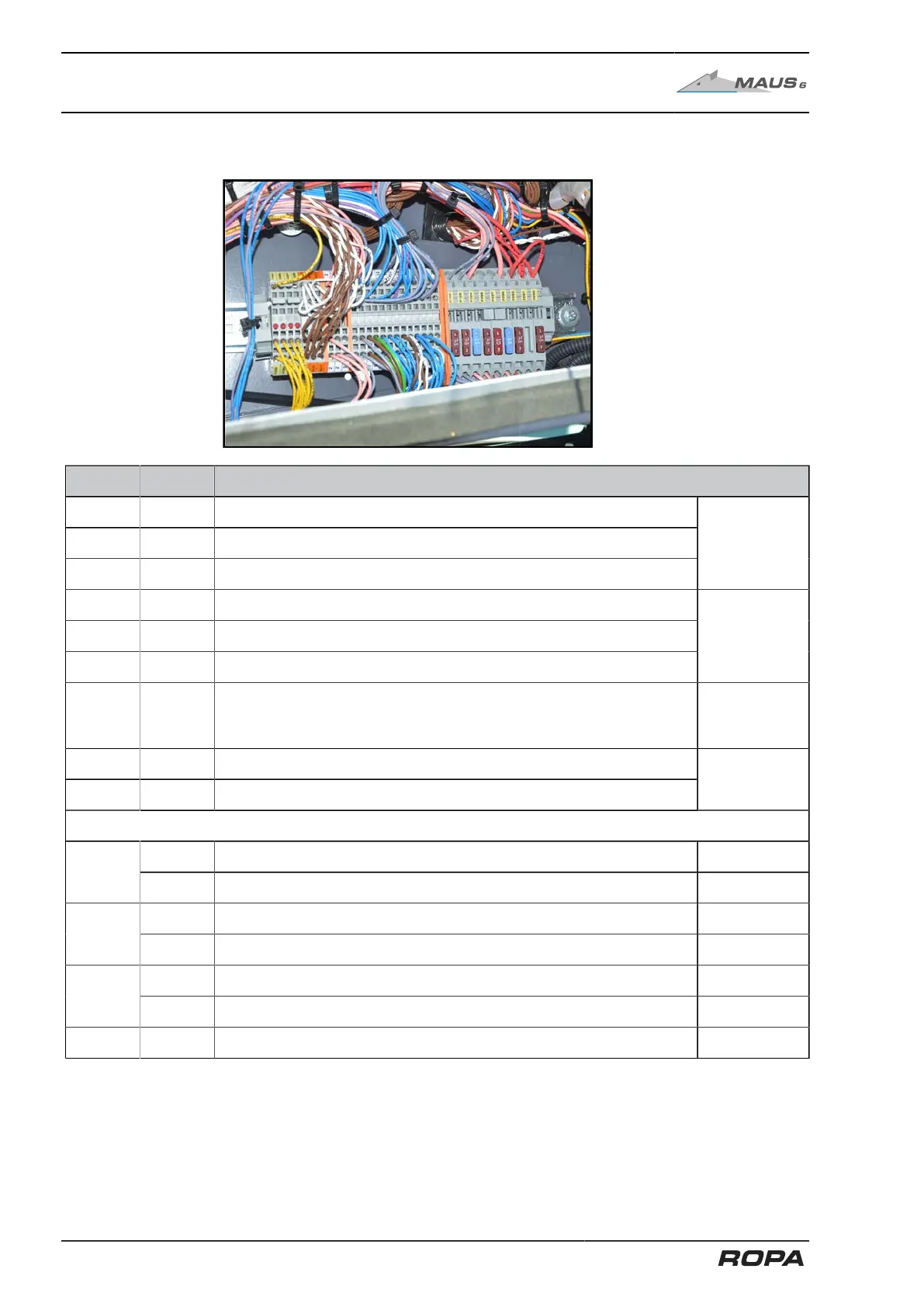

8.2.4 Fuses in the driver's cabin seat console
No. Ampere Occupation
F090 7.5 A007 colour terminal
F091 reserve
F092 7.5 A070 colour terminal
Pin 30
from F001
F096 15 Air seat compressor/seat heating
F097 10 Steering column switch
F098 7.5 G018 USB double socket
Pin 15
after K001
F099 15
Entire electronics, ESRs, terminal, joystick, operational section, engine elec-
tronics
Pin 15 directly
from S050
ignition lock
F105 7.5 High beam
F106 7.5 Low beam
from driving
light F036
Self-resetting electronic fuses with LED
100mA S129 emergency stop circuit 1 9 V
Fr085
100mA S129 emergency stop circuit 2 9 V
100mA S062 main switch steering 9 V
Fr086
100mA S062 main switch steering 9 V
100mA S063 parking brake 9 V
Fr087
100mA S063 parking brake 9 V
Fr088 100mA Diverse switches on console 9 V
446 / 546
