Operation
Loading operation
6.14.4.1 Relieving the pickup
The pickup must be relieved so that it does not sink into the ground too deeply during
loading on softer pile terrain.
6.14.4.1.1 Relieving the pickup side sections
The support feet are only required to partially carry the weight of the pickup side sec-
tions. A part of the load is to be transferred to the chassis.

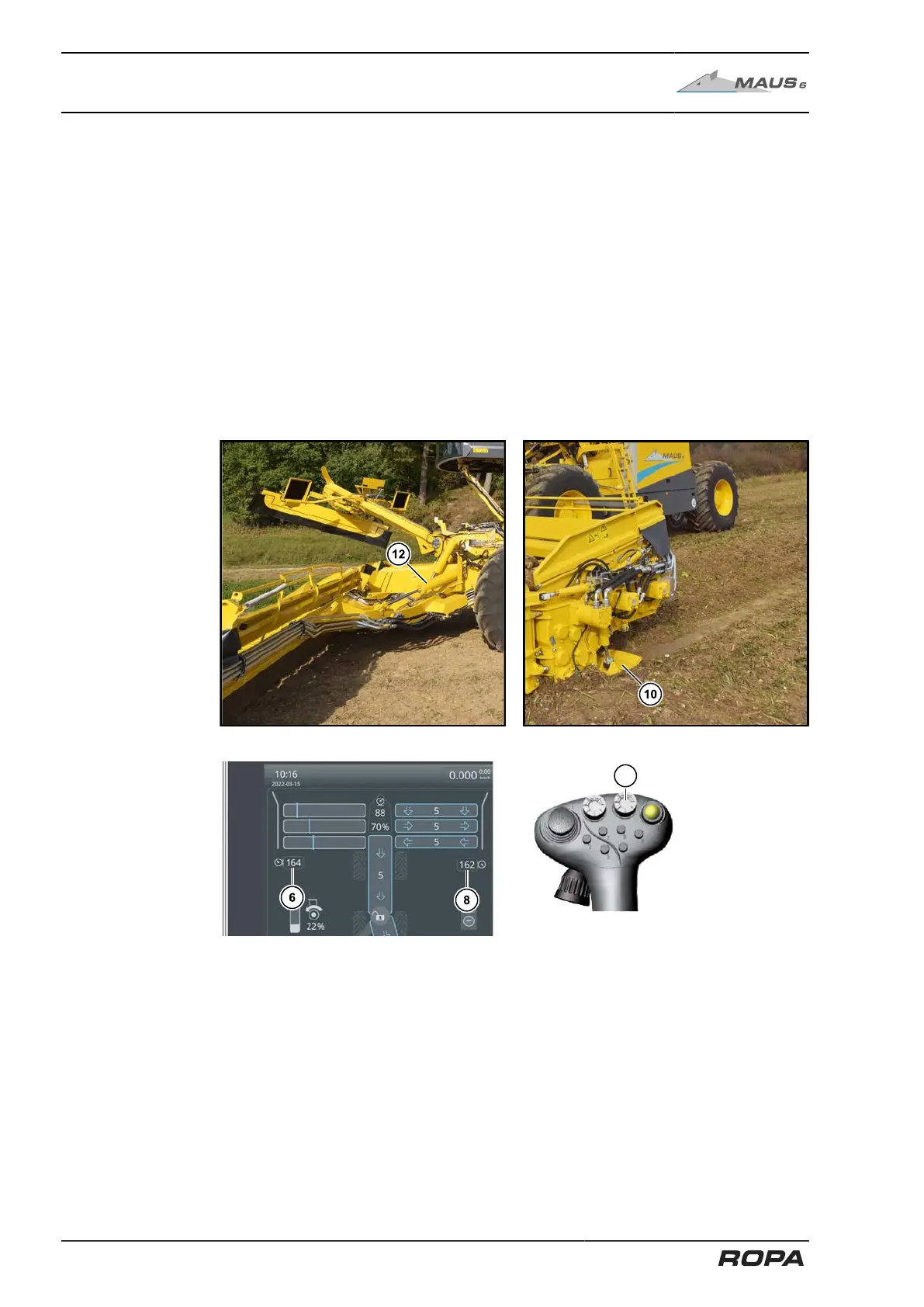

The components used for this purpose are the hydraulic cylinders (12) that fold the
pickup side sections in and out (X-Y key (5) on the right joystick). The side sections
must be relieved by raising them to the point that the support feet touch the ground
when just a small amount of weight is applied. If the pickup is correctly relieved, then
you will see only shallow dragging tracks behind the two support feet (10) when oper-
ating under normal ground conditions.
(6) Relief pressure left (bar)
(8) Relief pressure right (bar)
To relieve the pickup side sections, always just press the X-Y key (5) briefly.
