Operation
Loading operation
6.14.4.1.2 Relieving the pickup central section

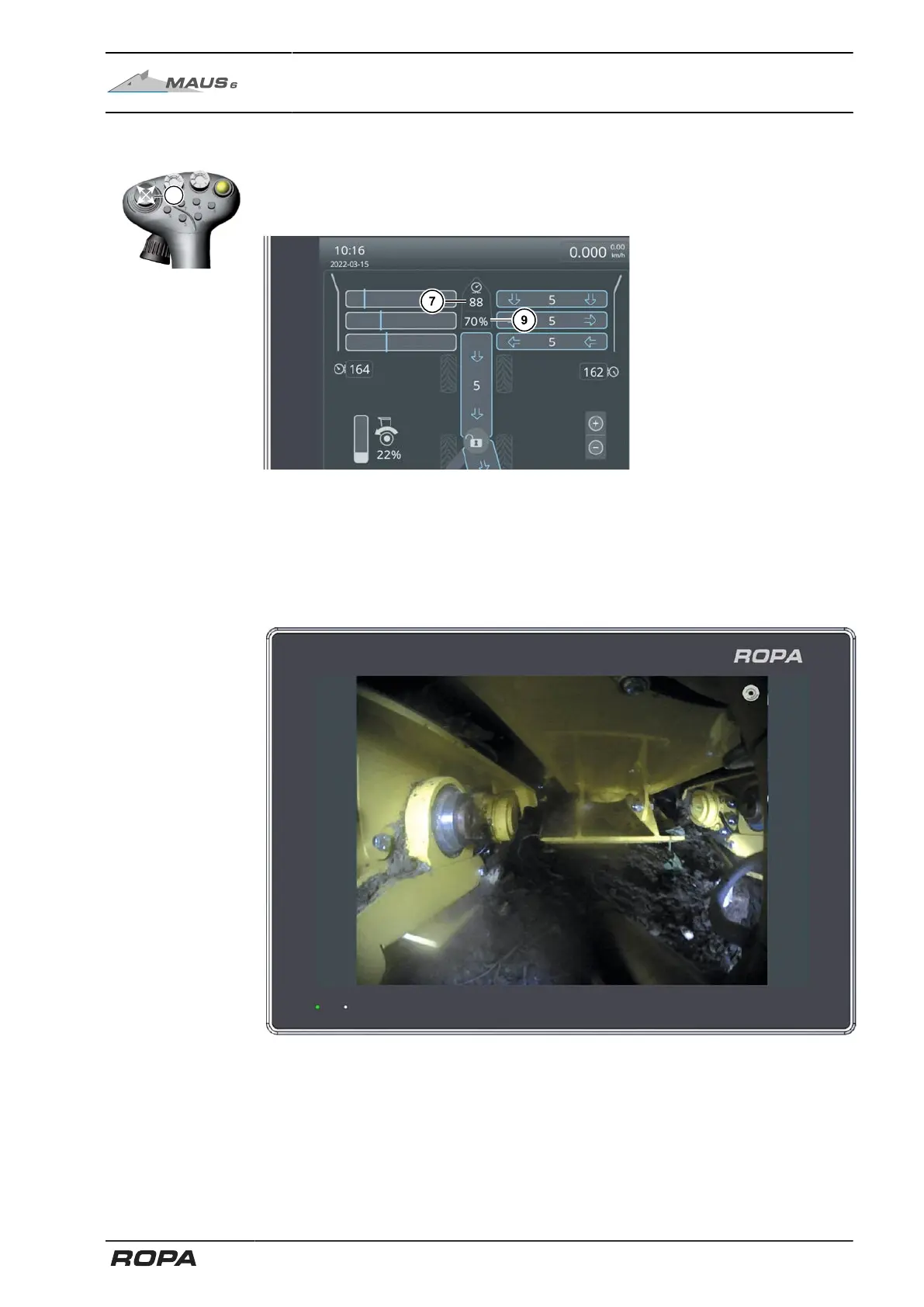

The relief pressure of the central part is set using the mini joystick (1) so that the front
axle is loaded. This improves traction of the front tyres and the drive train is loaded
more evenly.
(7) Relief pressure in the centre (bar)
(9) Pickup height in %
There is no guideline value for the relief pressure of the central section. The only deci-
sive factor is the display of the central mark camera on the video monitor. Here, you
should be able to see that all the beet is picked up and that there is no loss of beet
behind the skid.
Example with optimum adjustment on the image made by central mark camera. No
beet fragments, bearing assembly of the pickup roller visible over the ground.
253 / 546
