Operation
Folding the machine out/in
6.13.2 Folding out machine with the help of automatic folding at rear
Condition for this is that the machine front is already folded out and the driver's cabin is
raised to the end-stop (See Page 212).

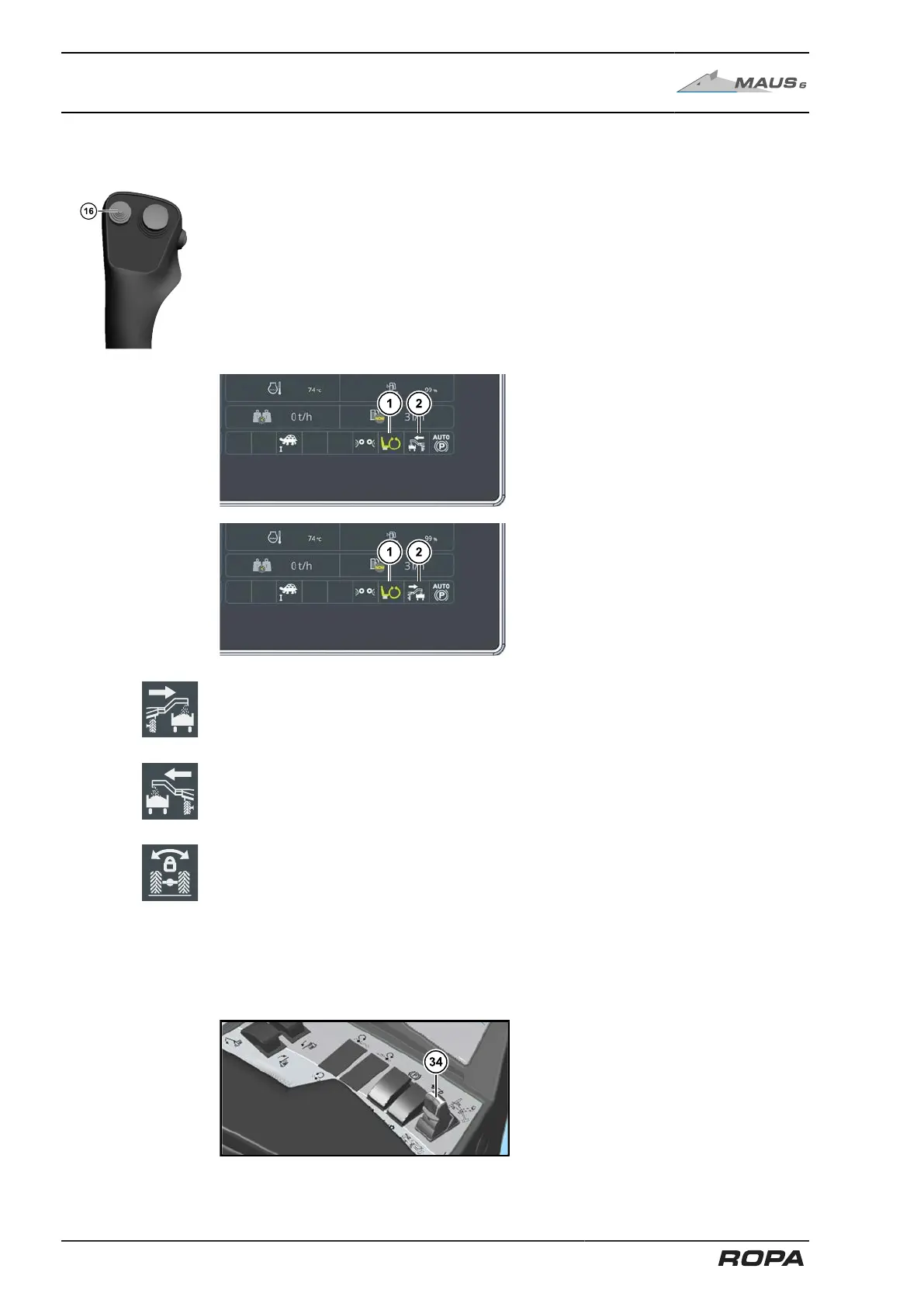

.Pre-select the loading direction using the X-Y key (16). The selected loading direction
determines the destination of the truck conveyor. To do so, press the X-Y key (16) to
the left or to the right and hold it for approx. two seconds in this position. The selected
loading direction (2) is displayed on the R-Touch.
For loading direction to the right:
Turn the rotating seat until it almost reaches the end-stop and the rotating seat status
indicator on the R-Touch (1) becomes green.
In the case of loading direction to the left:
Choose the line of sight direction that is most favourable for you. Make sure that you
always turn the rotating seat until it almost reaches the end-stop.
– Switch on the oscillating axle support for the rear axle before folding out the
machine. (See Page 212)
To start the automatic folding:
– Move analogue rocker switch (34) to the right (do not click into position because,
for safety reasons, latching-in stops all movements) and, shortly before latching-in,
hold the switch in that position until all the processes are finished.
214 / 546
