Operation
Folding the machine out/in
WARNING
Hazard of extremely severe injuries.
– Make sure, that nobody stands in the hazard zones when the machine is started.
– Make sure that there are no persons on the boarding platform.
– The driver is responsible for ensuring that there is nobody in the area between
the safety rail at the boarding steps and the cabin door when lifting or lowering the
cabin.
The following processes are executed automatically. During these processes,
several movements are performed simultaneously:
1 The speed of the diesel engine increases.
2 The telescoping part of the pile pickup extends outward.
3 The pile pickup is raised.
4 Both pickup side sections fold out.
5 The cabin is raised up to the end-stop.
6 Both fold plates are swung up.
7 The clearing shields fold out.
8 The support feet are extended completely.
9 The pickup side section lowers until it is just above ground level.
10 As soon as these processes are completed, the diesel engine switches to idling
speed.
ADVICE
The fold plates and clearing shields are folded out using a timer. If the oil is very cold,
the automatic folding system might not be able to move the fold plates and clearing
shields all the way to the end-stop. In this case, please select with the R-Select the
function "Fold plates" and perform the final part manually.

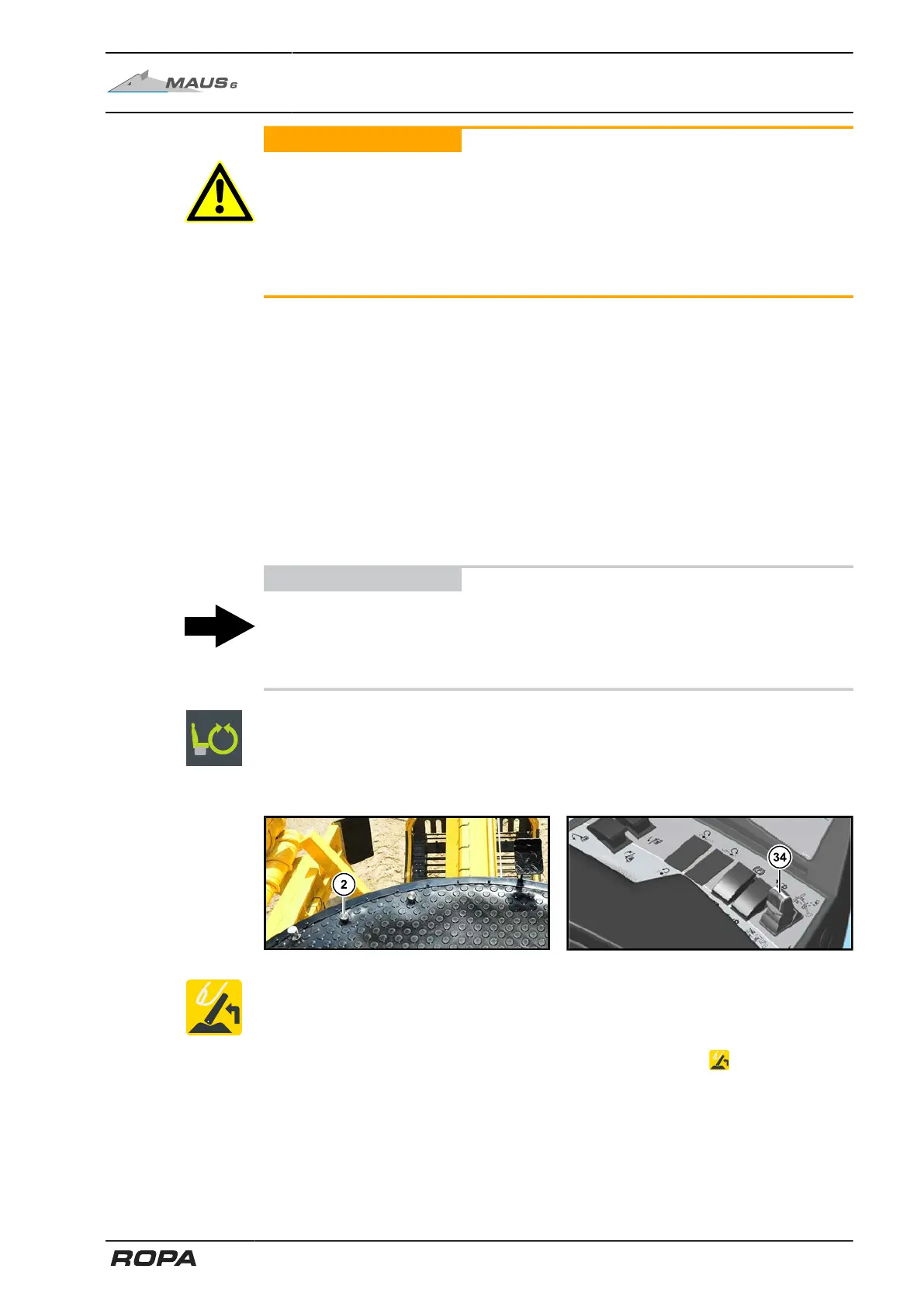

To start the automatic folding:
– Move the rotating seat forward to the central position until the rotating seat status
indicator on the R-Touch becomes green.
– Then press and hold the "Look forward" foot-switch (2).
– Press the analogue rocker switch (34) to the right and let it latch into position. Keep
pressing the foot-switch (2). If the foot-switch (2) is released, then, for safety rea-
sons, all movements are stopped.
– Now, please put the analogue rocker switch (34) in the central position again. If you
have forgotten this, the following is displayed on the R-Touch:
