Operation
R-Concept

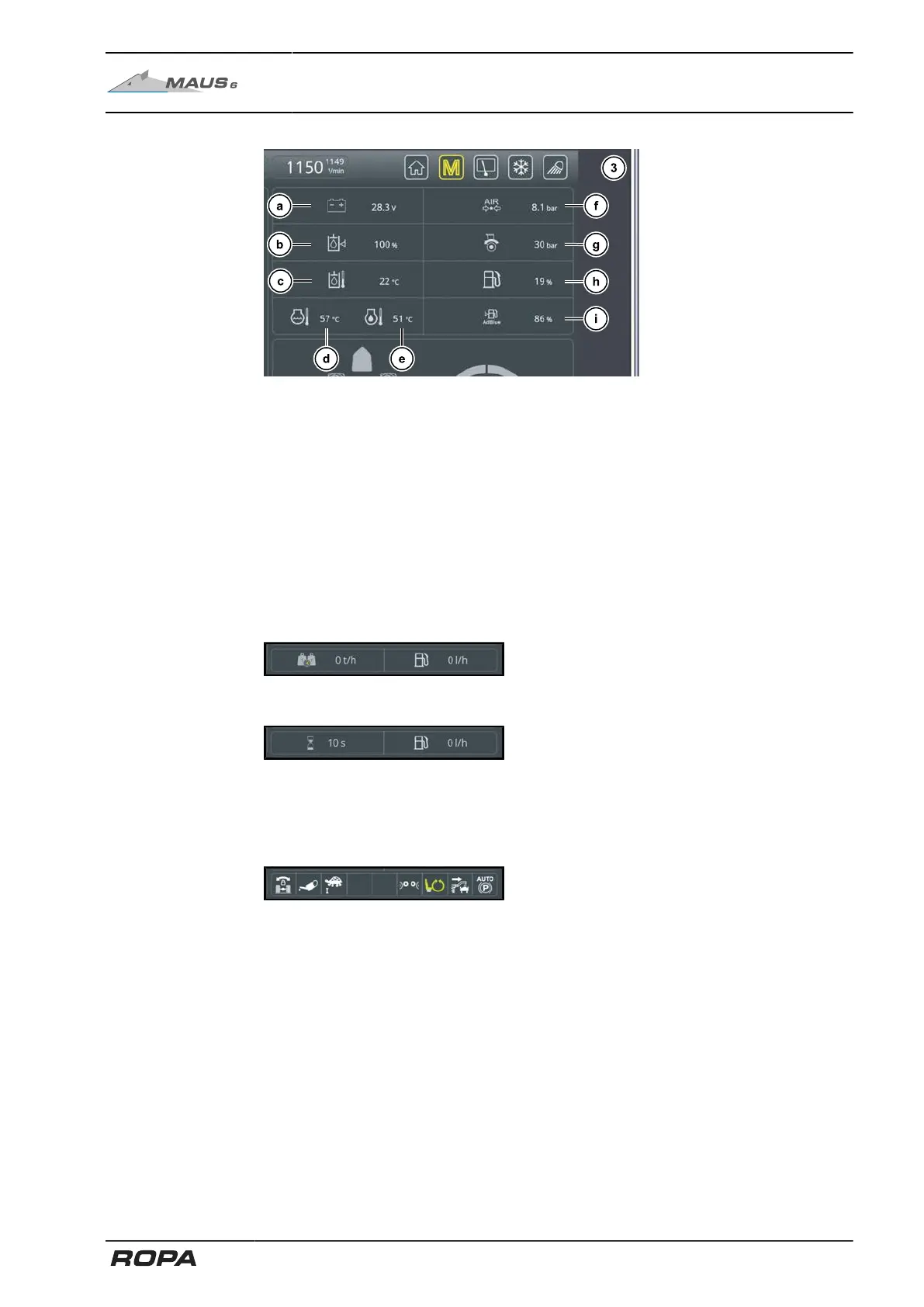

(3) Display field: Operating parameters
(a) Voltage vehicle power supply
(b) Hydraulic oil level
(c) Hydraulic oil temperature
(d) Coolant temperature
(e) Engine oil temperature (above 60°C is hidden)
(f) Pneumatic system reservoir pressure
(g) Pressure traction drive
– Arrow counterclockwise: higher pressure forward
– Arrow clockwise: higher pressure backward
(h) Tank level fuel
(i) AdBlue
®
tank content only on models with AdBlue-tank
[G] Display for capacity, waiting period and actual fuel consumption
Display for capacity (See Page 299) and actual fuel consumption (See Page 168)
Indicator for waiting period (See Page 249)
[H] Display fields for status indications
(See Page 149)
