Operation
Folding the machine out/in

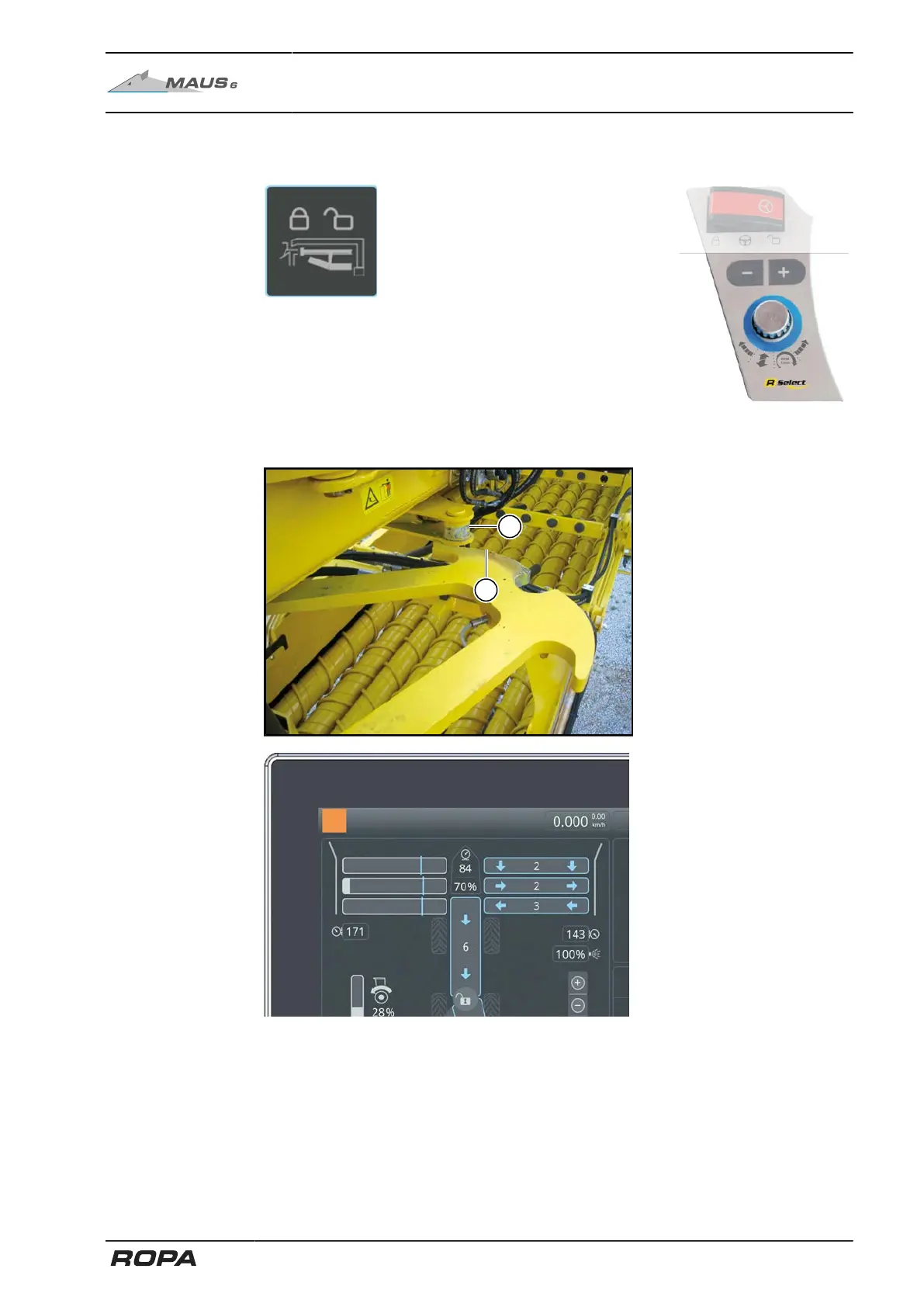

– Activate swivel arm lock.
For this purpose:
Swivel arm lock
Choose this function with R-Select.
+ key = unlock swivel arm
- key = lock swivel arm
The locking lever first begins to close when its roller (5) starts rolling along the cam
track (6).
5
6
Swivel arm lock
locked but not engaged
