Operation
Folding the machine out/in

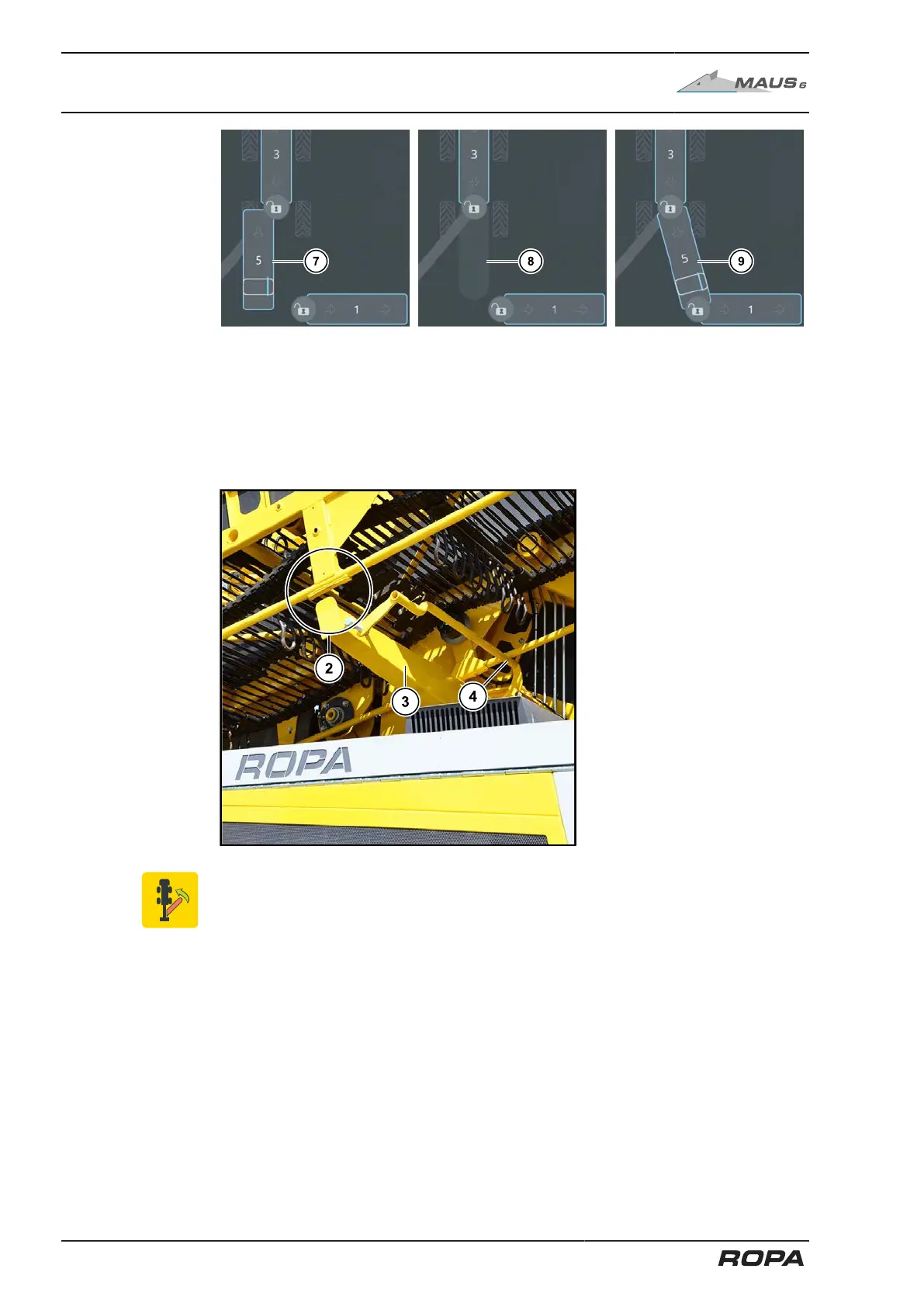

(7) Recleaner in transport position
(8) Recleaner neither in transport nor in working position
(9) Recleaner in working position
– Lower the truck conveyor articulation down to the end-stop.
– Turn the inner side of truck conveyor until it is just above the outer end of the trans-
port support (3).
Manually, lower the truck conveyor 5-10 cm (2) over the transport support (3) and turn
up to the end-stop on the main frame.
238 / 546
