Operation

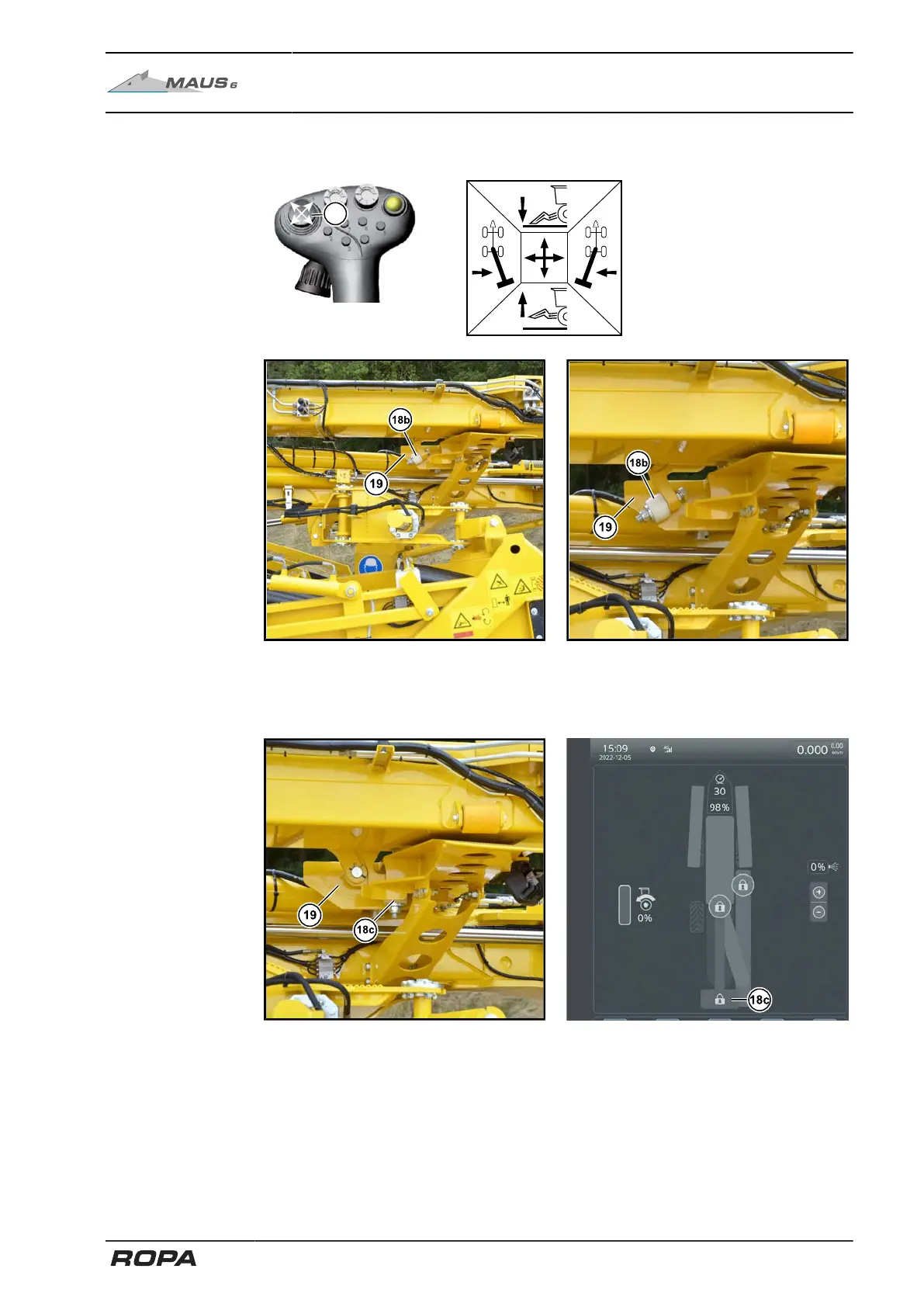

Folding the machine out/in
– Swivel the counterweight arm into the central position until the roller of the locking
lever rest lies on the lateral end-stop (19).
– Close the counterweight arm lock up to the end-stop. To do so, select the function
" Counterweight arm lock" on the R-Select, press and hold the key - until the lock
status display on the R-Touch displays the correct lock (18c).
Counterweight arm lock closed
