Operation
Folding the machine out/in

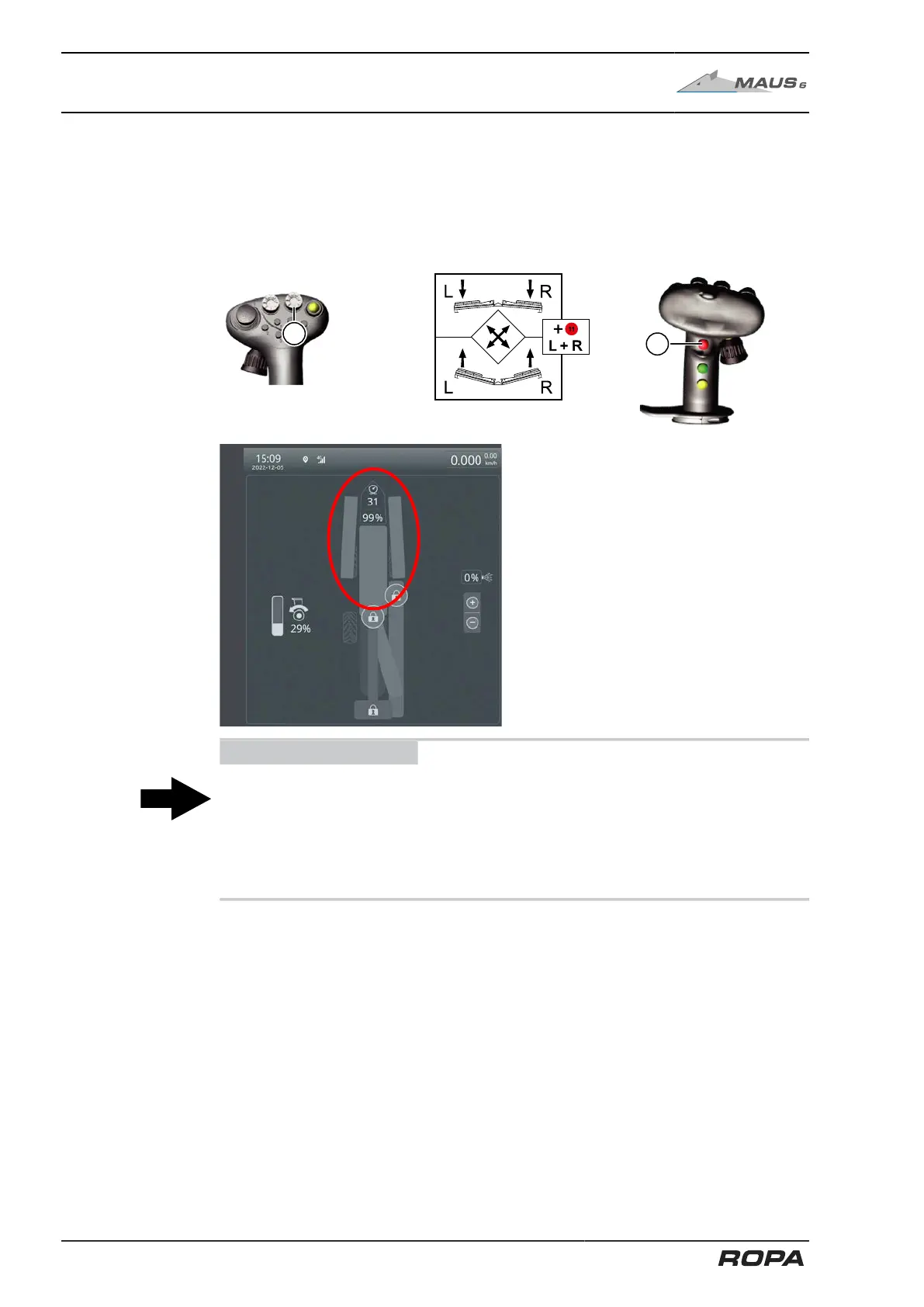

– Fold in the pickup side sections completely to the end-stop. For this purpose, pull
the X-Y key (5) on the right joystick diagonally backwards. To fold in faster, press
the multi-key ( 11) and hold it in this position. If you then slide the X-Y key (5)
diagonally to backward left or backward right, then both pickup side sections are
simultaneously folded in. After fold-in, keep the X-Y key (5) pressed until you can
hear the hydraulic system working against the maximum pressure. In this way, the
pickup side sections are pressed against the end-stop.
Indicator for pickup side sections folded
in.
ADVICE
The pickup side sections may only be folded in or out if the central section of the
pickup is raised to the end-stop and the driver's cabin is completely lowered! If the
central section of the pickup is not at the upper end-stop, then the side sections can
only be folded two-thirds of the way in. If a machine is located on a side slope and the
pickup cannot be folded in due to heavy soiling, first park the machine with the front
oriented either uphill or downhill and then fold in the pickup.
