ROPA Maus 6 - Page 403

Maintenance and Service

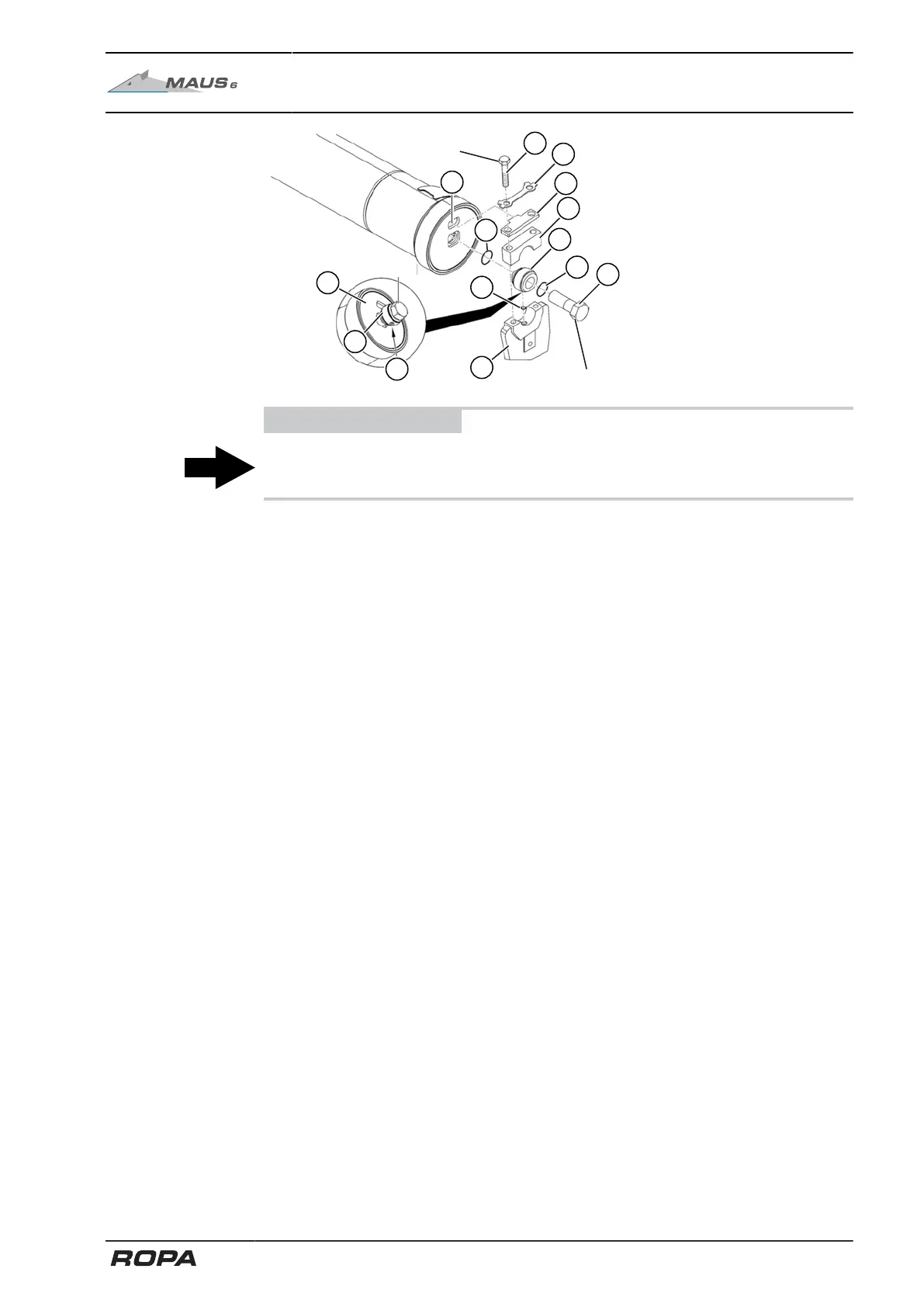

Pickup
750 Nm
750 Nm
19
21
20
17
23
22
16
18
85 Nm
24
26
25
23
22
27
ADVICE
Before screwing in the M24 fine-thread screws (16) the thread must be thinly coated
with copper paste (ROPA item no. 017015900 tube containing 100 gr.).
– When installing the rollers, make sure that the turns of the rollers are not aligned.
The turns of the rollers must be offset centrally to one another.
– The pinch rollers should be mounted on the holder on the opposite side as required
to keep the wear even. Replace the pinch rollers crosswise when reinstalling them.
To prevent one-sided wear of the slot (27) in the anti-rotation washer (25), the anti-
rotation plates (20) should be mounted on rollers rotating in the opposite direction
after every season.
403 / 546
