Maintenance and Service
Truck conveyor
Setting the weighing frame height
Place a level or similar straight edge over five rollers or use a tight cord for alignment.
Align the rollers to the same height.

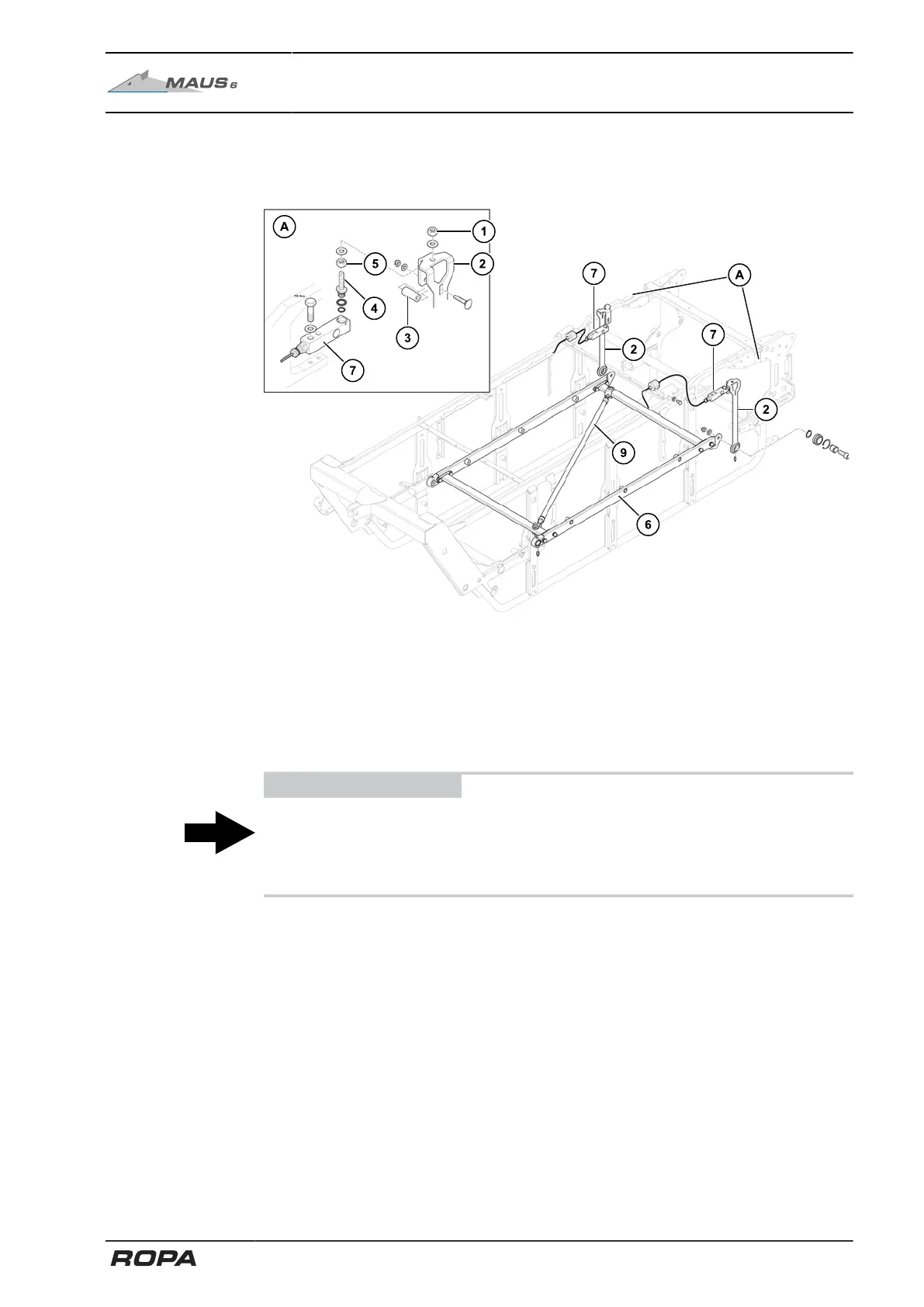

The weighing frame (6) is fixed to the connecting levers (2). However, the height of
the connecting lever to the weighing cell (7) can be adjusted with the mounting bolt
(4). First loosen the spacer tube (3). Then adjust the mounting bolt with the hexagon
nuts (1+5) until the support rollers on the weighing frame are aligned with the fixed
support rollers. Perform this adjustment on both sides. At the end, tighten the spacer
tube again. Make sure to leave a gap of approx. 1 to 2 mm between the bottom of the
weighing cell (7) and the spacer tube (3).
ADVICE
It is recommended to move the truck conveyor into the operating position at the end
of work. Both weighing cells must indicate approximately the same weight if the belt
is empty. You will find the actual weight of each weighing cell under A091 and A092 in
the Diagnosis menu (See Page 480).
